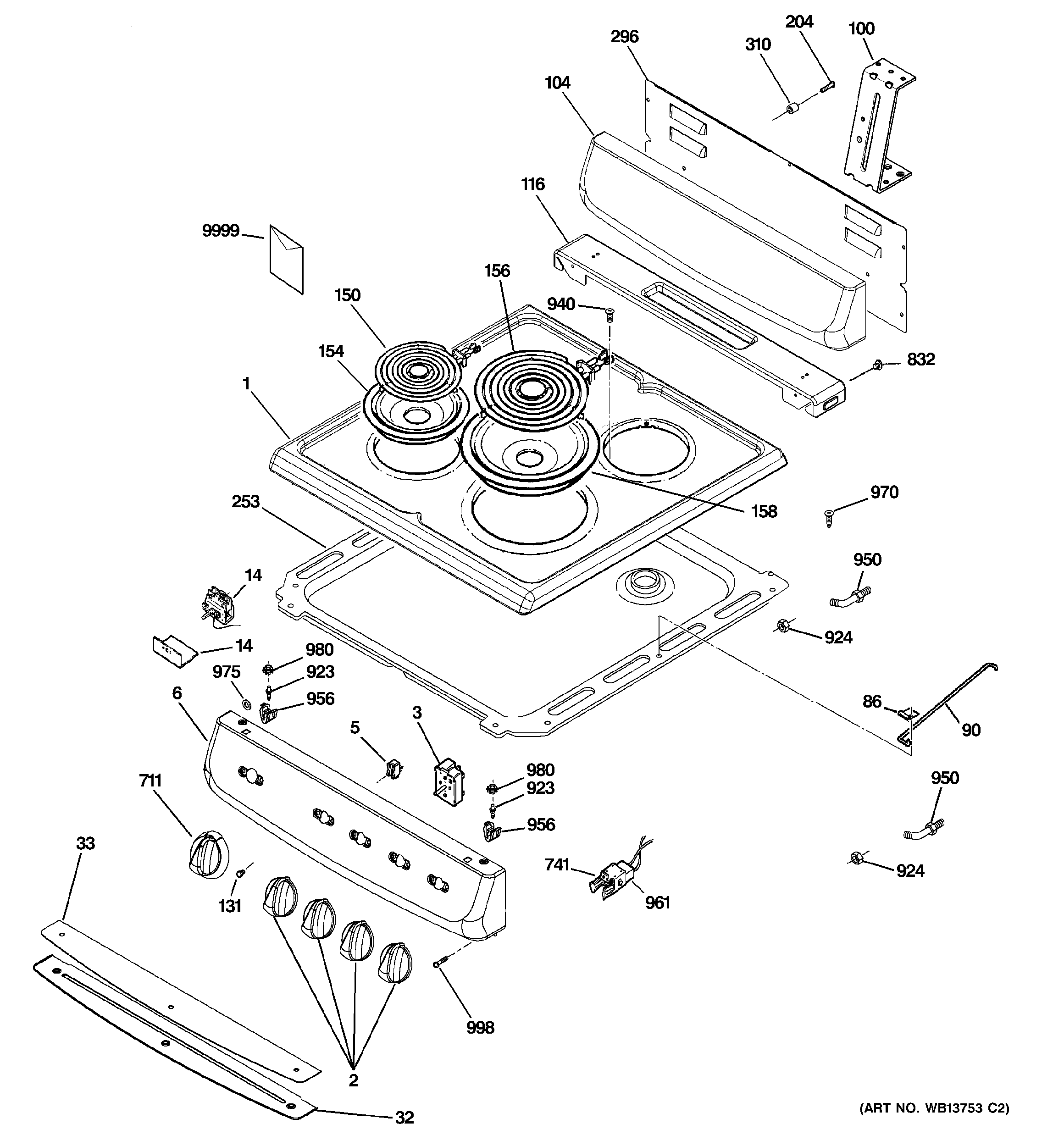

RA720K4CT CONTROL PANEL & COOKTOP

Products

Position	Product
1	WB36K10559 GE Range Top
1	GEN WB36K10577
2	WB03K10201 GE Oven Mini Valve Knob
2	GEN WB03K10199
3	WB24T10025 SWITCH INFIN(2500W)
3	WB24T10029 GE Oven Infinite Burner Switch
5	WB25K10002 GE Stove Oven Cooktop Pilot Lamp
6	GEN WB36K10576
6	WB36K10558 GE Manifold Assembly Panel 20
14	WB20K10019 GE Oven Top Heat Thermostat
14	WB20K10031 GE Oven Thermostat Cover
32	GEN WB35K10068
33	GEN WB35K10060
86	GEN WB02K10089
90	WB02K10088 GE Main Top Support Rod
100	WB63K10172 GE Support Panel Assembly
100	WB63K10161 GE Complement Support Panel
104	WB36K11014 GE Oven Backguard Assembly 20
104	GEN WB36K10574
116	WB36K10557 GE Oven Cooktop Assembly
116	GEN WB36K10575
131	WB25T10041 GE Oven Lens
150	WB30K10015 GE Oven 6" Surface Element
154	WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156	WB30K10014 GE Oven Unit Assembly
158	WB32X106 GE Oven 8" Chrome Drip Bowl
204	WB1K84 GE Oven Screw and
204	WB1K5062 GE Oven Screw
253	WB64K10013 GE Burner Box
296	WB34K10074 GE Oven Backguard Cover
310	WB01K10023 GE Oven Grommet Handle
711	GEN WB03K10200
711	WB03K10202 GE Oven Thermostat Knob Assembly
741	WB02K10133 GE Oven Receptacle Clip
832	WB01K10043 GE Oven Screw
923	GEN WB02K10128
924	WB01K10048 GE Hex Lock Nut
940	WB01K10062 GE Screw 8-18 x 3/8
950	WB02K10129 GE Cooktop Guide
956	WB02K10091 GE Range Door Strike Catch
961	WB17T10006 GE Oven Burner Receptacle Block
970	GEN WB01K10063
970	WB01K10054 GE Screw 8-18 x 3/8"
975	WB01K10055 GE Washer
980	WB01K10041 GE Oven Hex Lock Nut
998	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999	GEN 49-88046
