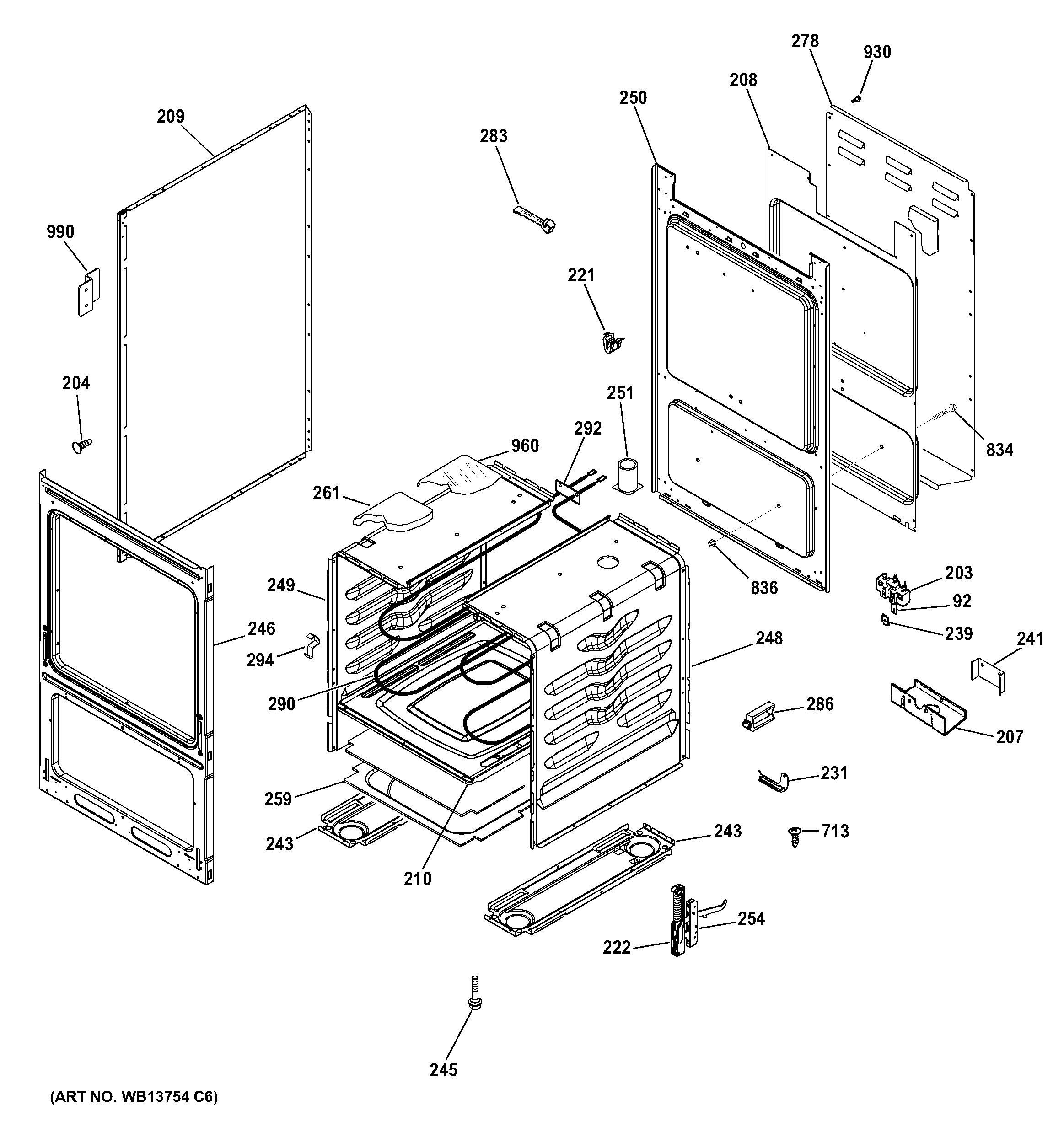

RA720K5WH BODY PARTS

RA720K5WH BODY PARTS

Written by

in

RA720K5WH BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
204WB1K84 GE Oven Screw and
204WB01K10092 GE Screw
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10069
209WB63K10278 GE Oven Side Panel
209GEN WB63K10277
210WB63K10073 GE Oven Bottom
221WB02K10073 GE Oven Clip Capillary
222WB10K10038 GE Oven Door Hinge Assembly
231WB02K10385 GE Range Anti-Tip Bracket
239PLATE GROUND
241GEN WB63K10104
243BASE SUPPORT
245WB02K10126 GE Oven Level Screw
246GEN WB63K10276
248WB63K10079 GE Oven Side Assembly
249WB63K10075 GE Oven Side Assembly
250WB63K10068 GE Oven Back Assembly
251WB38K10013 GE Vent Tube
251GEN WB04K10002
254WB10K10003 GE Oven Hinge Receptacle
259GEN WB63K10099
261GEN WB35K10170
278COVER RANGE BACK
283WB02X21679 GE Oven Wire Clip
286GEN WB02X7066
290WB44K10019 GE Oven Bake Heater
292WB44K10028 GE Oven Broil Heater Assembly
294WB2X9719 GE Oven Support Bracket Clip
713WB01K10057 GE Oven Screw
834WB01K10050 GE Hex Screw 1/4-20 X 2 3/16"
836GEN WB01K10051
930WB01K10052 GE Screw
960GEN WB35K10067
990GEN WB02K10131
