RA720K5WH CONTROL PANEL & COOKTOP

RA720K5WH CONTROL PANEL & COOKTOP

Written by

in

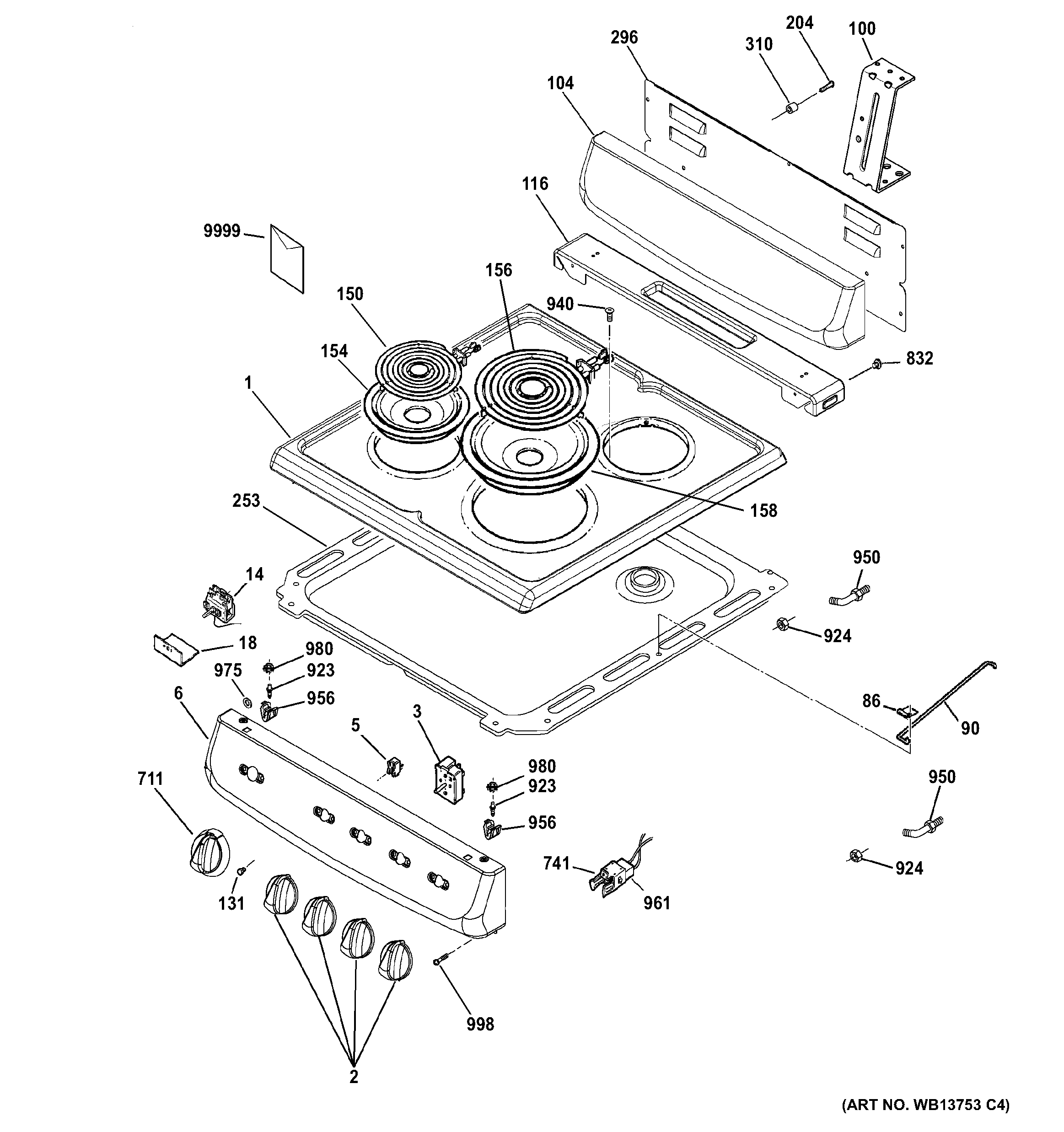

RA720K5WH CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB36K10559 GE Range Top
1GEN WB36K10577
2WB03K10201 GE Oven Mini Valve Knob
2GEN WB03K10199
3WB24T10025 SWITCH INFIN(2500W)
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
6WB36K10558 GE Manifold Assembly Panel 20
6GEN WB36K10576
14WB20K10019 GE Oven Top Heat Thermostat
18WB20K10031 GE Oven Thermostat Cover
86GEN WB02K10089
90WB02K10088 GE Main Top Support Rod
100WB63K10161 GE Complement Support Panel
100WB63K10172 GE Support Panel Assembly
104GEN WB36K11013
104WB36K11014 GE Oven Backguard Assembly 20
116WB36K10557 GE Oven Cooktop Assembly
116GEN WB36K10575
131WB25T10041 GE Oven Lens
150WB30K10015 GE Oven 6" Surface Element
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30K10014 GE Oven Unit Assembly
158WB32X106 GE Oven 8" Chrome Drip Bowl
204WB01K10092 GE Screw
204WB1K84 GE Oven Screw and
204WB1K5062 GE Oven Screw
253WB64K10013 GE Burner Box
296WB34K10074 GE Oven Backguard Cover
310WB01K10023 GE Oven Grommet Handle
711GEN WB03K10200
711WB03K10202 GE Oven Thermostat Knob Assembly
741WB02K10133 GE Oven Receptacle Clip
832WB01K10043 GE Oven Screw
923GEN WB02K10128
924WB01K10048 GE Hex Lock Nut
940WB01K10062 GE Screw 8-18 x 3/8
950WB02K10129 GE Cooktop Guide
956WB02K10091 GE Range Door Strike Catch
961WB17T10006 GE Oven Burner Receptacle Block
975WB01K10055 GE Washer
980WB01K10041 GE Oven Hex Lock Nut
998WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999GEN 31-10840
9999GEN 49-88053
