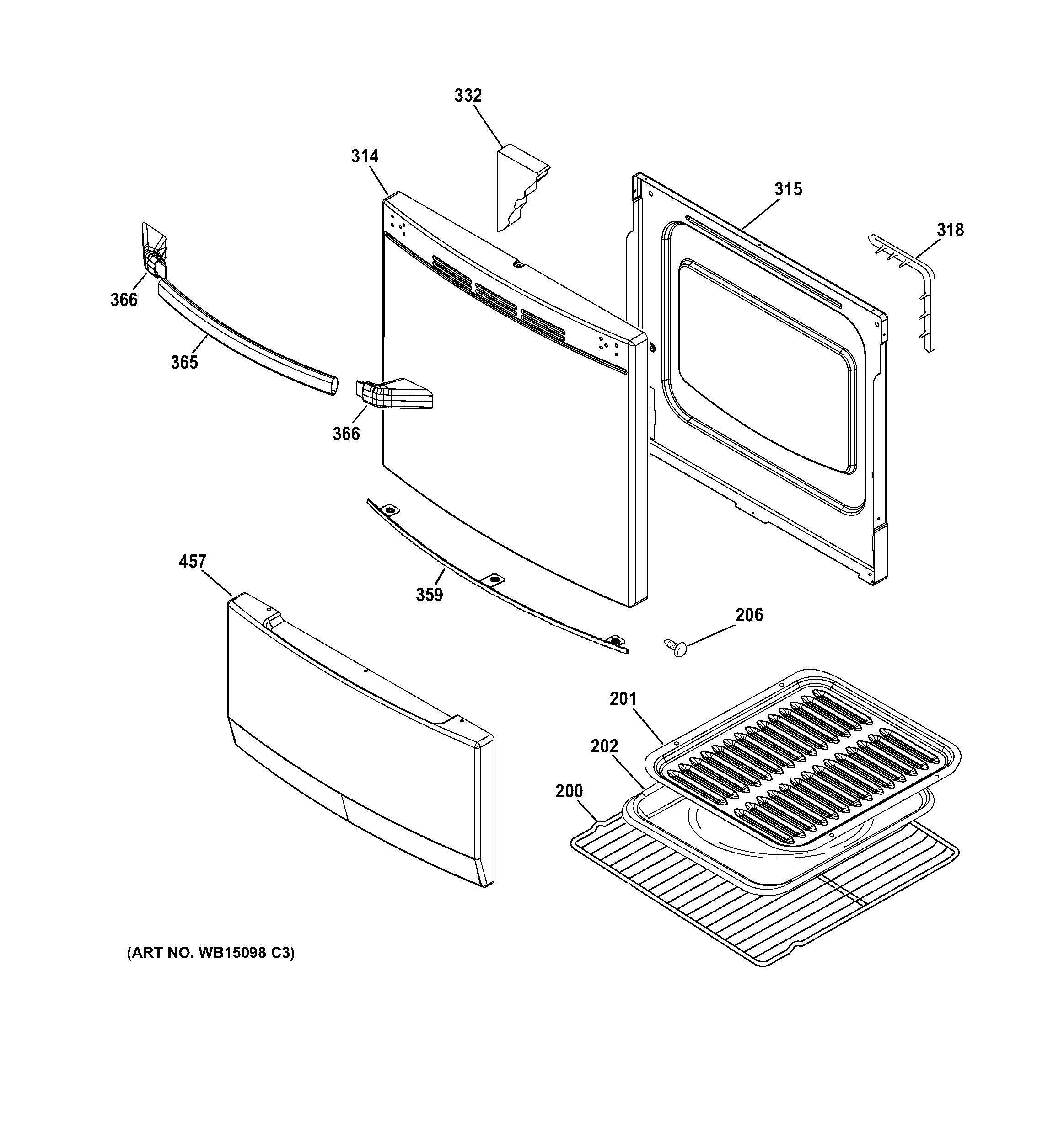

RA720K5WH DOOR & DRAWER PARTS

RA720K5WH DOOR & DRAWER PARTS

Written by

in

RA720K5WH DOOR & DRAWER PARTS

Products

PositionProduct
200WB48X26060 GE Oven Rack 20
201WB48K10016 GE Oven Broil Pan Grid
202WB48K10015 GE Oven Broil Pan
206WB01K10091 GE Oven Screw
314GEN WB56K10090
314WB56K10092 GE Solid Door Assembly
315WB55K10086 GE Door Liner
318WB32K10054 GE Oven Door Gasket Assembly
332WB35K10228 GE Door Insulation
359GEN WB07K10459
365WB15K10065 GE Oven Handle
365GEN WB15K10068
366WB7X7189 GE Oven Range Door Handle Endcap White
366WB15K10064 GE Range Handle End Cap
457GEN WB56K10089
457WB56K10091 GE Oven Kick Panel Assembly
