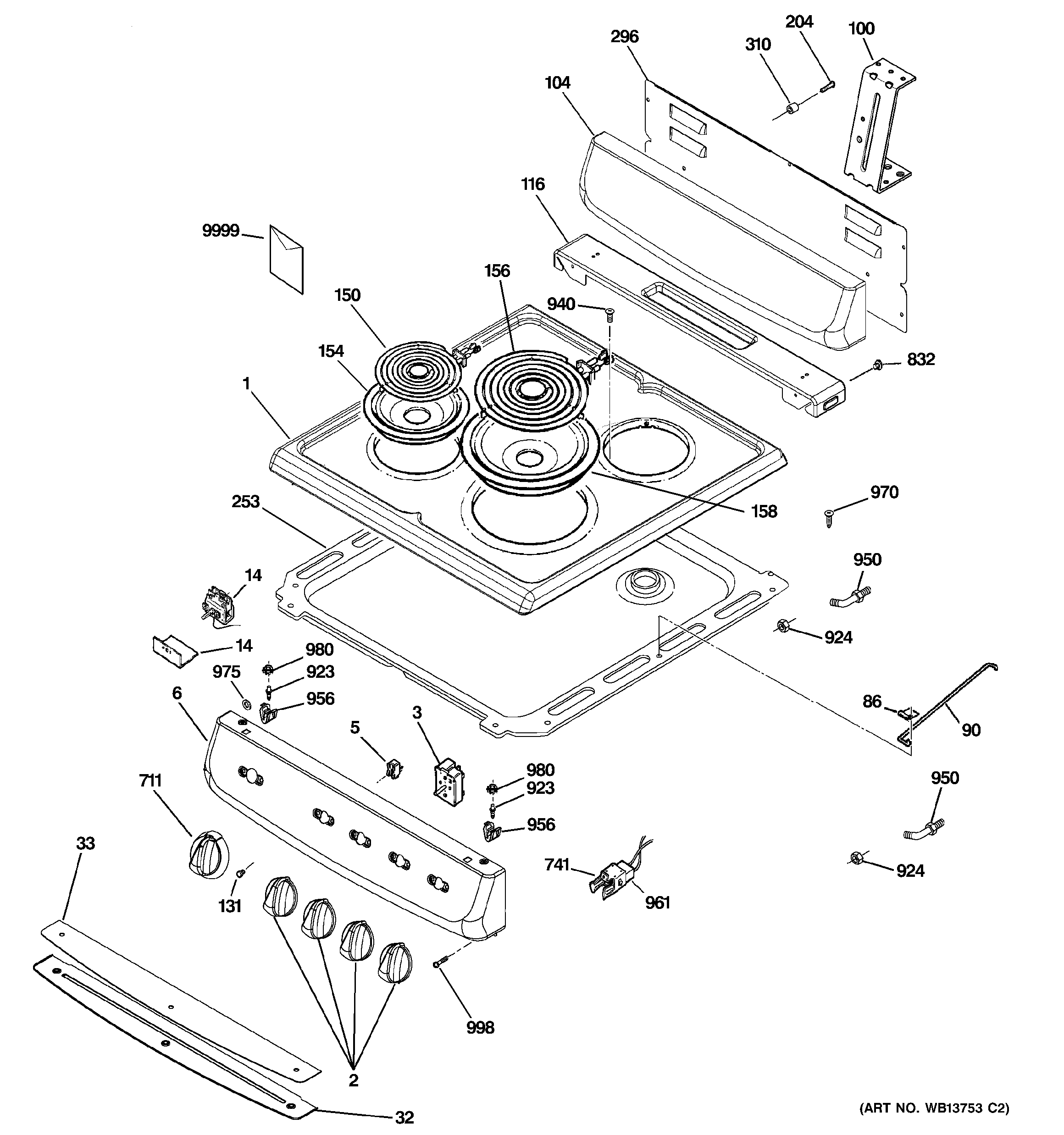

RA724K3WH CONTROL PANEL & COOKTOP

RA724K3WH CONTROL PANEL & COOKTOP

Written by

in

RA724K3WH CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10108 GE Range Top Assembly
2WB03K10201 GE Oven Mini Valve Knob
3WB24T10025 SWITCH INFIN(2500W)
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
6GEN WB36K10562
14WB20K10019 GE Oven Top Heat Thermostat
14WB20K10031 GE Oven Thermostat Cover
32GEN WB35K10059
33GEN WB35K10069
86GEN WB02K10089
90WB02K10088 GE Main Top Support Rod
100WB63K10161 GE Complement Support Panel
100WB63K10172 GE Support Panel Assembly
104WB36K11015 GE Oven 24" Backguard Assembly
116WB36K10890 GE Oven Cooktop Complement 24 Inch
131WB25T10041 GE Oven Lens
150WB30K10015 GE Oven 6" Surface Element
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30K10014 GE Oven Unit Assembly
158WB32X106 GE Oven 8" Chrome Drip Bowl
204WB1K84 GE Oven Screw and
204WB1K5062 GE Oven Screw
253WB64K10012 GE Burner Box
296GEN WB34K10077
310WB01K10023 GE Oven Grommet Handle
711WB03K10202 GE Oven Thermostat Knob Assembly
741WB02K10133 GE Oven Receptacle Clip
832WB01K10043 GE Oven Screw
923GEN WB02K10128
924WB01K10048 GE Hex Lock Nut
940WB01K10062 GE Screw 8-18 x 3/8
950WB02K10129 GE Cooktop Guide
956WB02K10091 GE Range Door Strike Catch
961WB17T10006 GE Oven Burner Receptacle Block
970WB01K10054 GE Screw 8-18 x 3/8"
975WB01K10055 GE Washer
980WB01K10041 GE Oven Hex Lock Nut
998WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999GEN 49-88025
