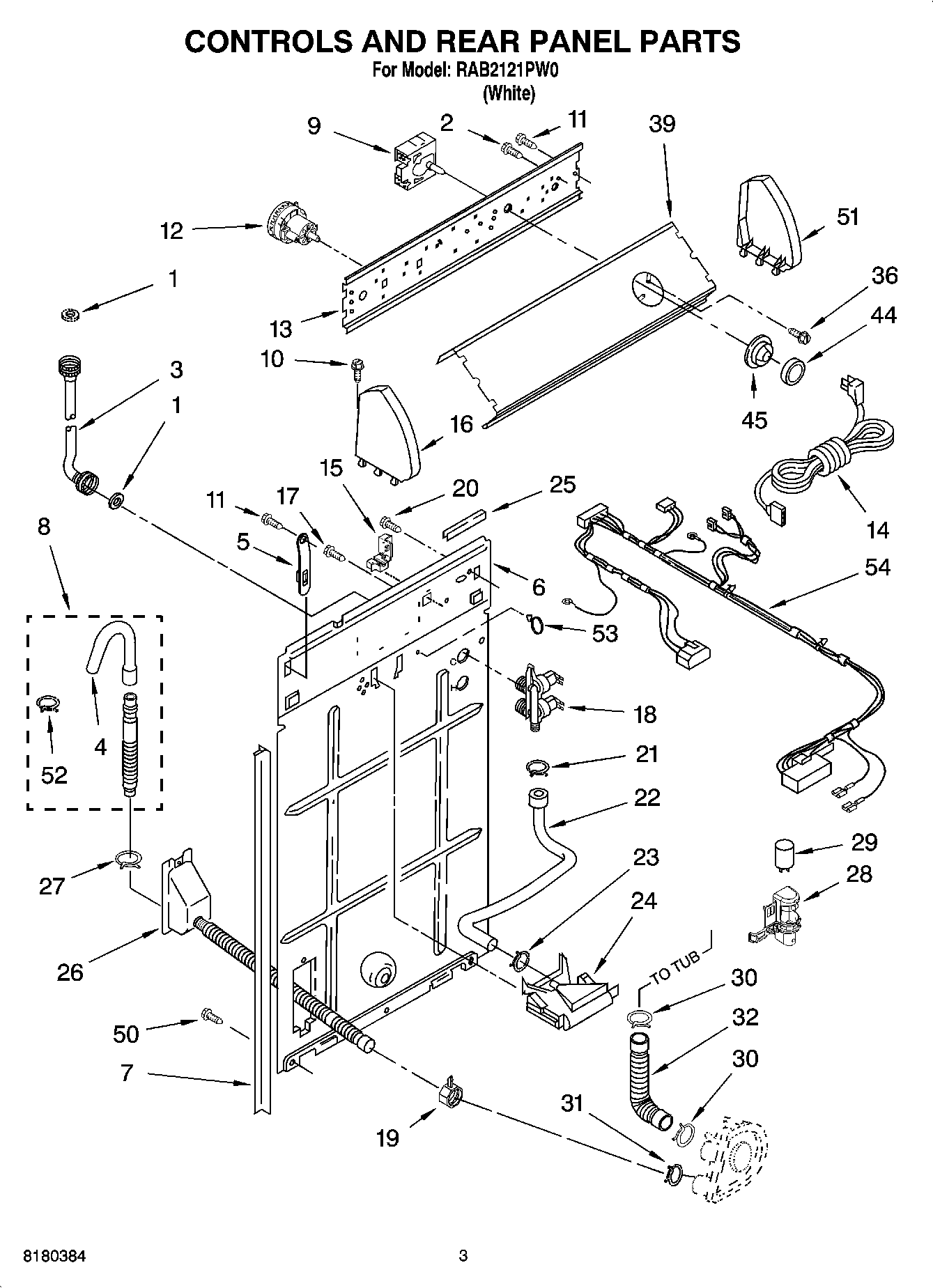

RAB2121PW0 02 – CONTROL AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3400073 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	WP8546681 Whirlpool Timer
10	WP388326 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	WP9740848 Whirlpool Dishwasher Screw
18	285805 Whirlpool Washer Water Inlet Valve
19	Clamp, Hose
20	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Clip, Capacitor
29	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
36	WP3400818 Whirlpool Screw
39	Panel, Console
44	WP3957823 Whirlpool Knob
45	Dial, Timer
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.)
52	WP3357331 Whirlpool Clamp
53	8559320 Whirlpool Clip
54	Harness, Wiring (For Detail See Pages 9 & 10)
