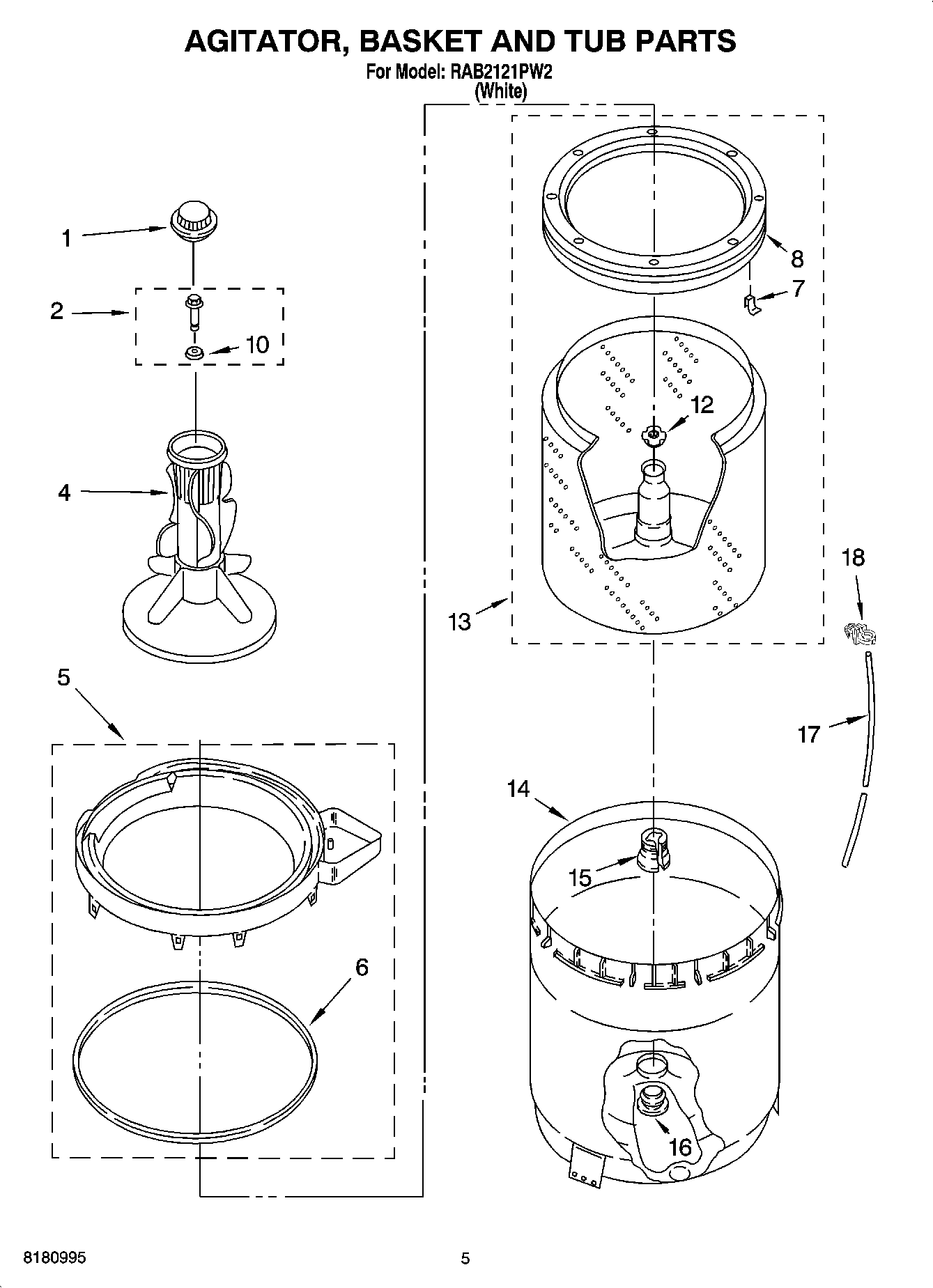

RAB2121PW2 03 – AGITATOR, BASKET AND TUB PARTS

RAB2121PW2 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

RAB2121PW2 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
4Agitator
5Tub Ring & Gasket Assembly
6WP3359586 Whirlpool Tub Seal
7WP8519815 Whirlpool Washer Balance Ring Clip
8WP3956205 Whirlpool Balance Ring
10WP3949550 Whirlpool Gasket Assembly
12WP21366 Whirlpool Spanner Nut
13Basket & Balance Ring
14Tub
15WP389140 Whirlpool Drive Block or Bell
16W10814296 Whirlpool Washer Center Post Seal Gasket
17WP353244 Whirlpool Hose
182219077 Whirlpool Refrigerator Clip
