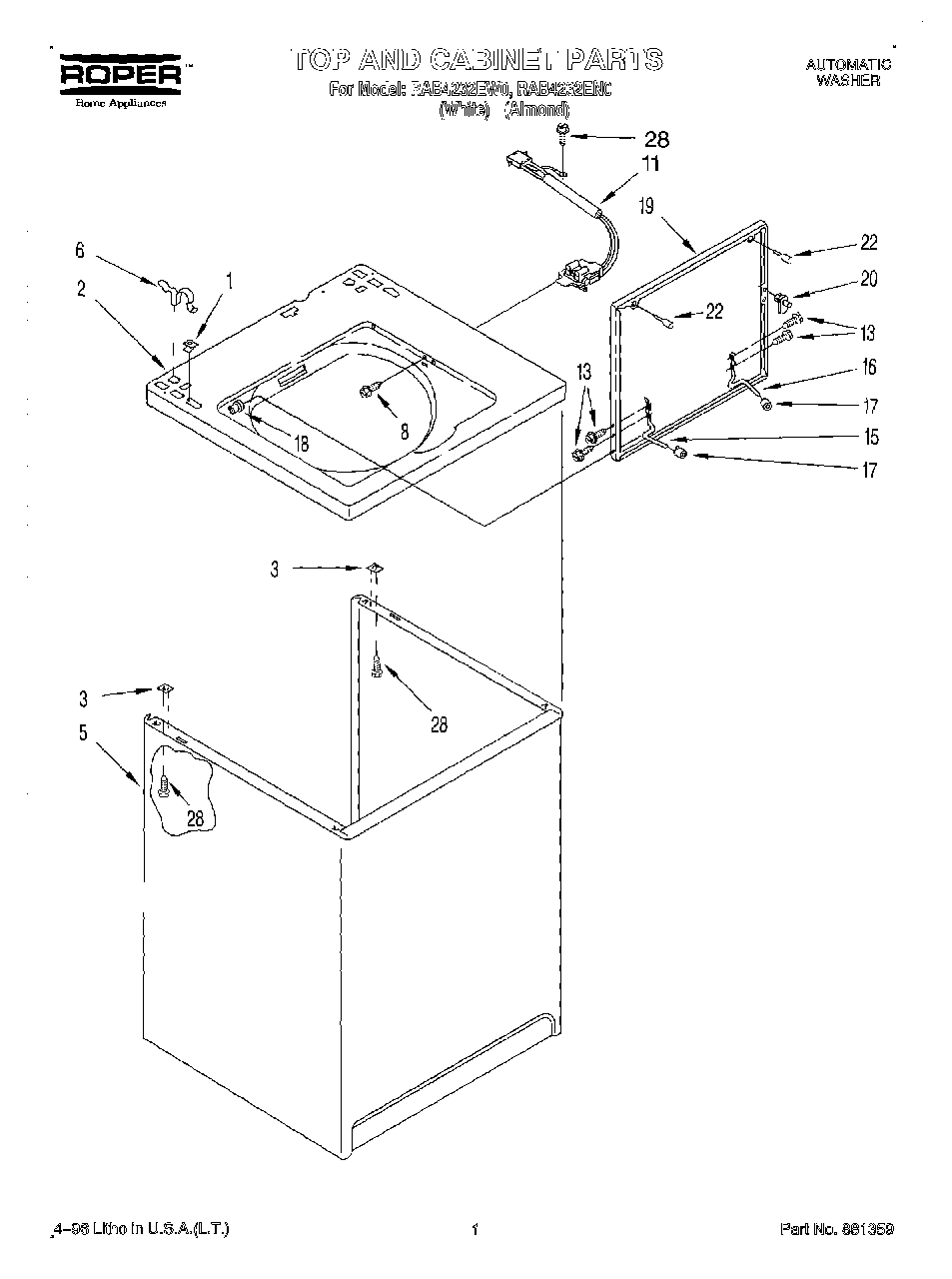

RAB4232EW0 01 – TOP AND CABINET, LIT/OPTIONAL
Written by
in
RAB4232EW0 01 – TOP AND CABINET, LIT/OPTIONAL
Products
Position
Product
Sheet, Installation Instructions
Golden Harvest
Golden Harvest (Uncut)
Shipping Kit
WPL 89121
Energy Guide
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP285195 Whirlpool Sealer Assembly
Literature Parts (Use & Care Guide) (Wiring Diagram)
Guide, Use and Care
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
63580 Whirlpool Washer Fabric Softener Dispenser
350572 Whirlpool Oil Transmission 15 Oz
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
Almond (Uncut)
285320 Whirlpool Washer Siphon Break Kit
Drain Protector (Not Included)
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
1
WP357213 Whirlpool Hinge Stopper
2
Top (White)
2
Top (For Almond Model)
3
WP62750 Whirlpool Spacer
5
Cabinet (White)
5
Cabinet (Almond)
6
WP62780 Whirlpool Cabinet Clip
8
WP3356311 Whirlpool Screw
11
285671 Whirlpool Lid Switch Assembly
13
SCREW
15
WP54584 Whirlpool Hinge
16
WP54583 Whirlpool Hinge
17
Bumper, Lid Hinge
18
WP21258 Whirlpool Washer Lid Hinge Bearing
19
Lid (White)
19
Lid (Almond)
20
WP358684 Whirlpool Strike Assembly
22
WP9724509 Whirlpool Bumper
28
SCREW
←
