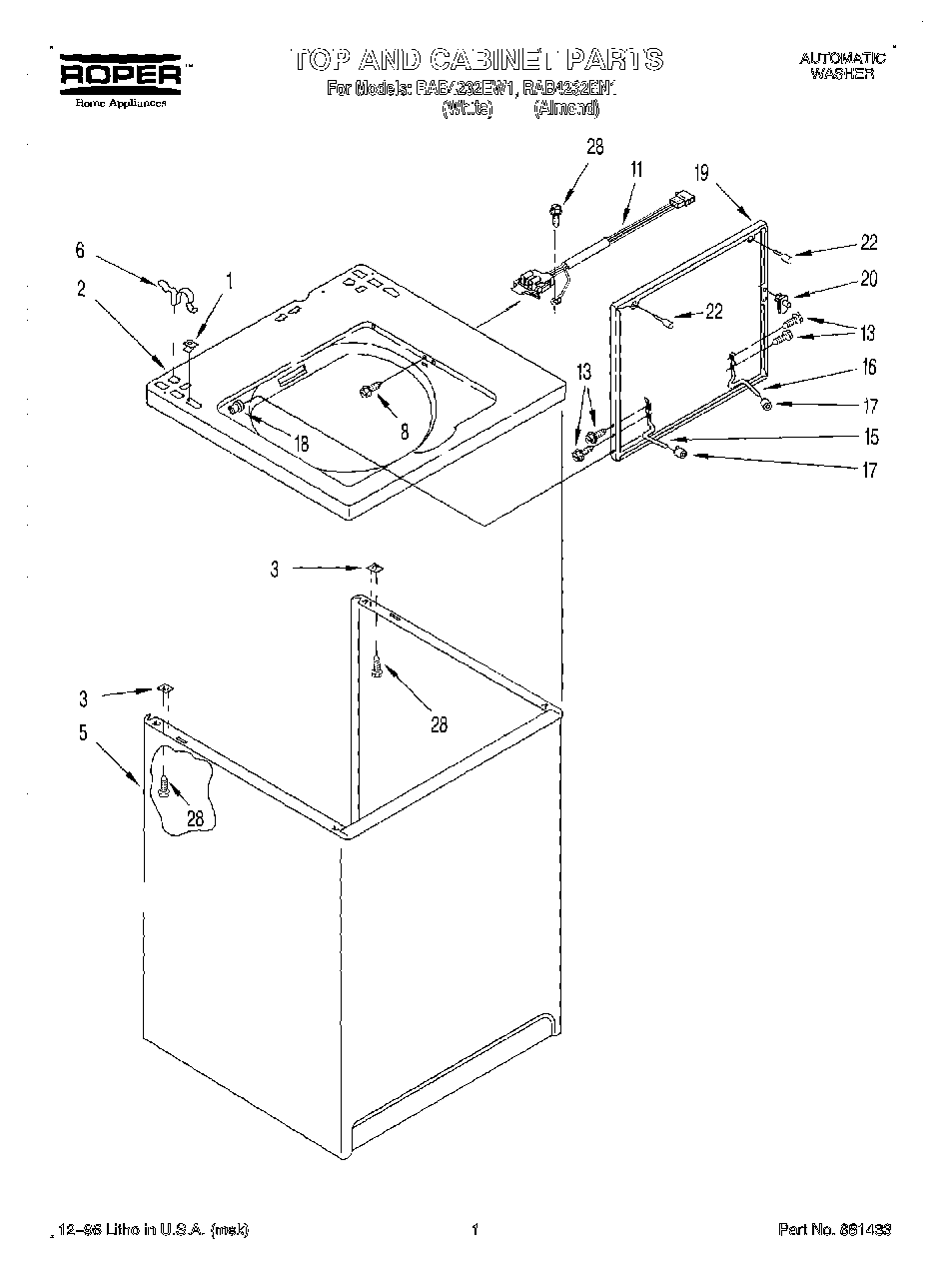

RAB4232EW1 01 – TOP AND CABINET

Products

PositionProduct
1WP357213 Whirlpool Hinge Stopper
2Top (White)
2Top (For Almond Model)
3WP62750 Whirlpool Spacer
5Cabinet (White)
5Cabinet (Almond)
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
113949247V Whirlpool Washer Lid Switch Assembly
13SCREW
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (White)
19Lid (Almond)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28SCREW
