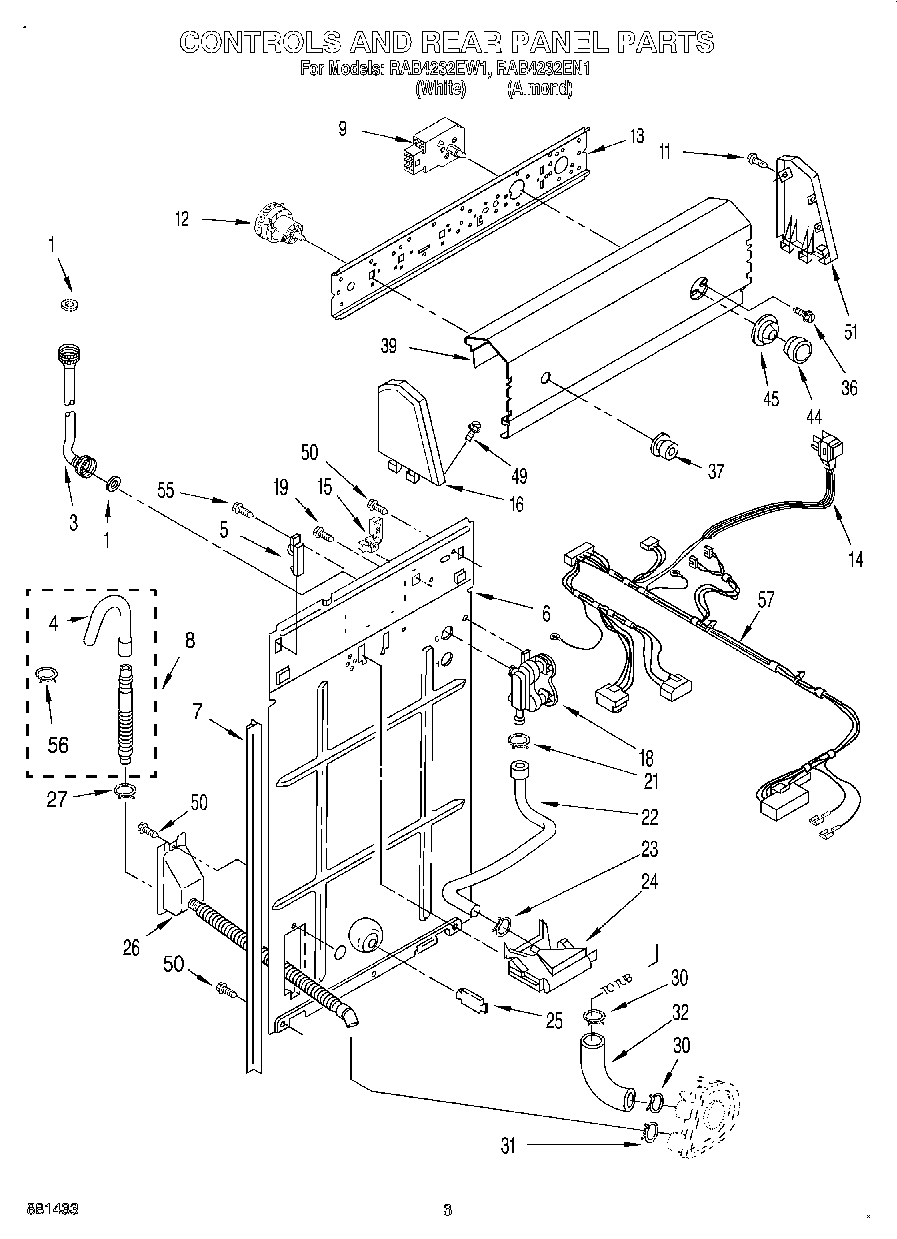

RAB4232EW1 02 – CONTROLS AND REAR PANEL
Written by
in
RAB4232EW1 02 – CONTROLS AND REAR PANEL
Products
Position
Product
1
WP16123 Whirlpool Washer
3
WP89503 Whirlpool Washer Fill Hose
4
WP3357027 Whirlpool Nozzle Assembly
5
Hinge, Console (2)
6
Panel, Rear
7
WP62747 Whirlpool Pad
8
285702 Whirlpool Extensions
8
285664 Whirlpool Drain Hose
8
285666 Whirlpool Drain Hose 10'
9
Timer, Control (60 Hz.) (Motor Not A Service Part)
11
WP90767 Whirlpool Screw
12
W10339228 Whirlpool Washer Water Level Switch
13
Bracket, Control
14
Cord, Power (Power Cord Only, Without Harness)
15
Strain Relief, Power Cord
16
Cap, End (L.H.) (Black)
18
285805 Whirlpool Washer Water Inlet Valve
19
WP3351614 Whirlpool Screw
21
WP596669 Whirlpool Hose Clamp
22
HOSE
24
WP3347034 Whirlpool Vacuum Break
25
WP8519200 Whirlpool Support Assembly
26
WPW10358149 Whirlpool Hose
27
WP356138 Whirlpool Hose Clamp
30
WP371502 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
36
WP356418 Whirlpool Screw
37
Knob, Control (Black)
39
Panel, Console (For White And Almond Models)
44
WP3362625 Whirlpool Timer Knob
45
Dial, Timer
49
WP388326 Whirlpool Screw
50
WP3390631 Whirlpool Screw
51
Cap, End (R.H.) (Black)
55
WP308685 Whirlpool Microwave Screw
56
WP3357331 Whirlpool Clamp
57
WPL 3951614
←
