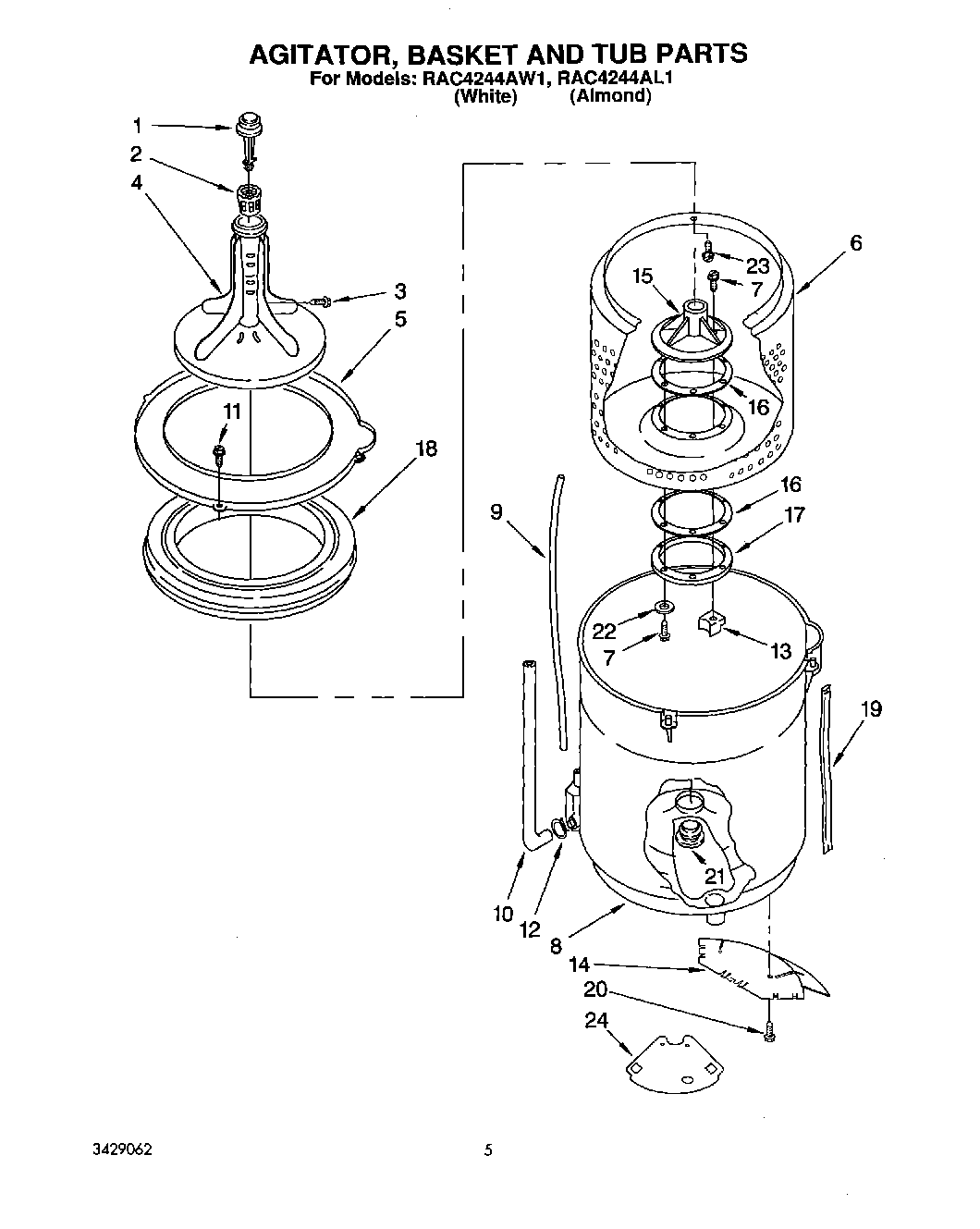

RAC4244AL1 03 – AGITATOR BASKET AND TUB

Products

Position	Product
1	WP326018423 Whirlpool Dispenser Assembly
2	Filter
4	Agitator
5	Tub Ring
6	Basket
7	Screw
8	Tub
9	WP353244 Whirlpool Hose
10	Hose, Bleach
12	WP596669 Whirlpool Hose Clamp
13	Saddle Block
14	Shield, Tub/Motor
15	Hub, Drive
16	Gasket, Hub (2)
17	Clamp, Ring
18	Balance Ring
19	Hose, Tub Overflow
20	WP3400872 Whirlpool Screw
21	WP3968381 Whirlpool Tub Seal
22	Washer
23	Screw, Balance Ring (4)
24	Shield, Tub/Solenoid
