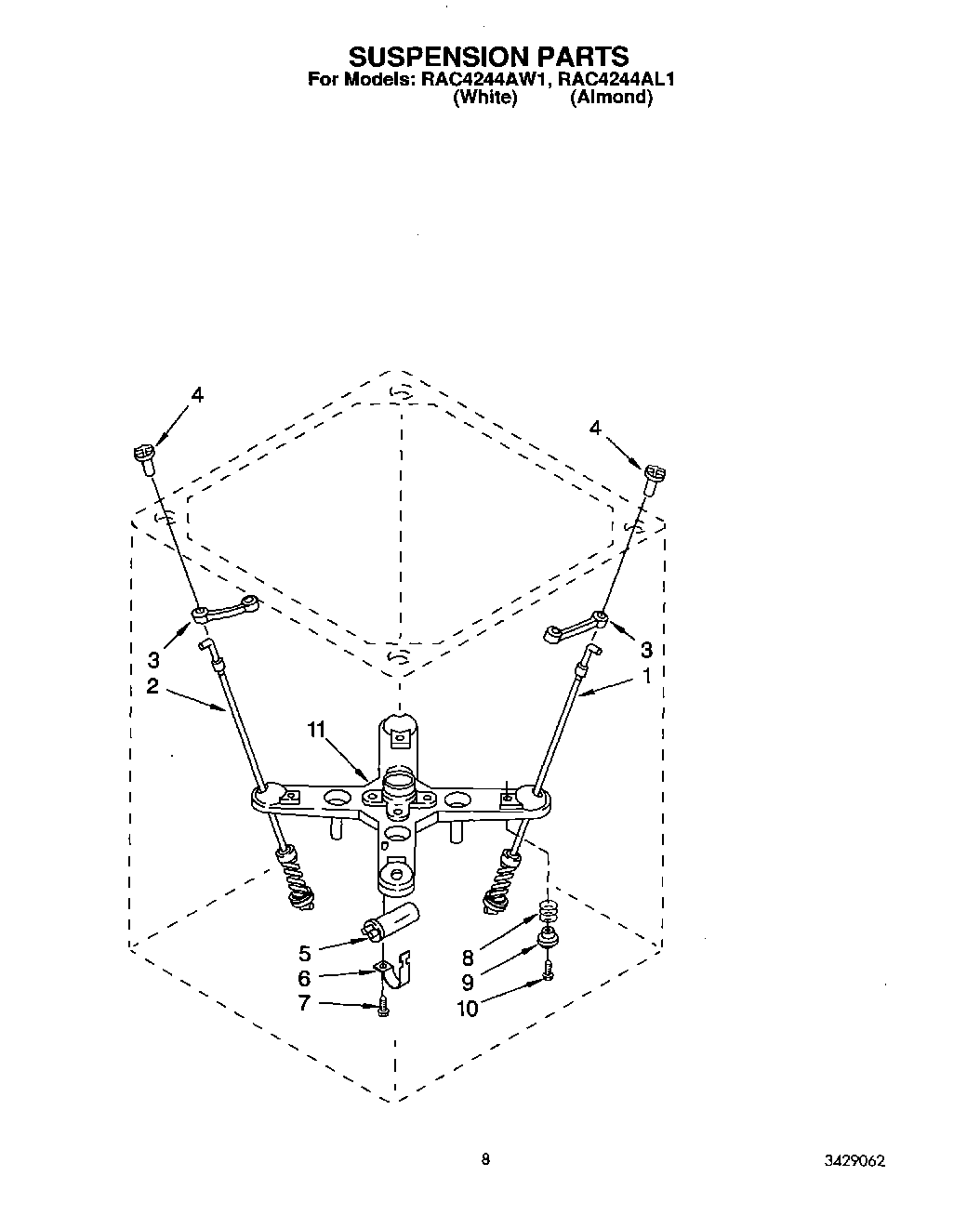

RAC4244AW1 06 – SUSPENSION – Aparts

RAC4244AW1 06 – SUSPENSION

Products

Position	Product
1	Suspension Rod, Front (2)
2	Suspension Rod, Rear (2)
3	WP3967051 Whirlpool Strap
4	Ball, Upper Suspension (4)
5	Capacitor
6	Bracket, Capacitor
7	Screw, Solenoid Mtg. (4)
8	Spring (4)
9	Retainer, Tub Spring (4)
10	Screw (4)
11	Support, Tub
