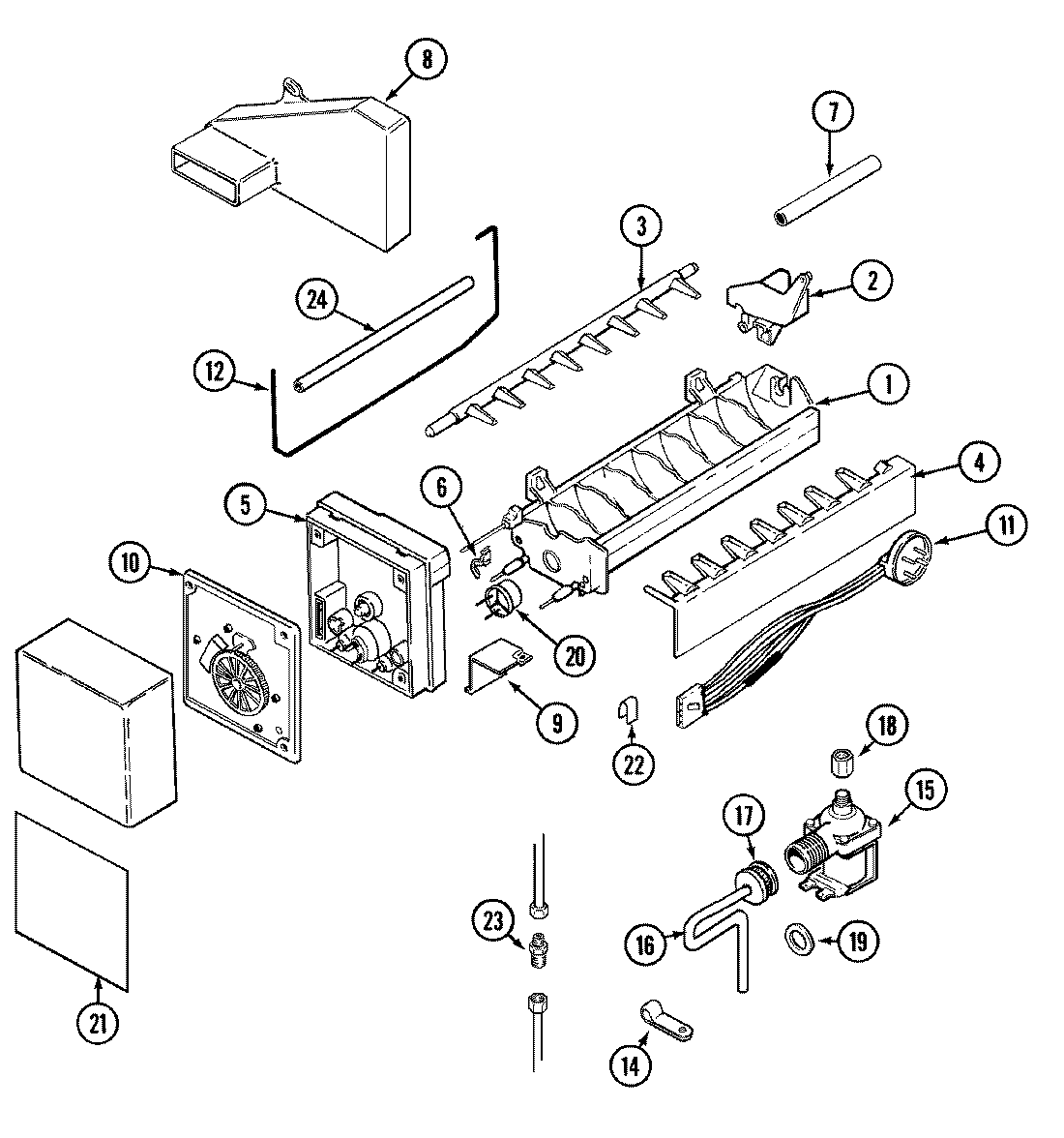

RAE10 01 – ICE MAKER KIT

Products

Position	Product
1	WP99003172 Whirlpool Silicone L
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	SCREW
5	WP2195914 Whirlpool Refrigerator Ice Maker Housing
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 67666-3
8	MAY 67061-1
8	MAY 67061-2
8	MAY 67061-3
9	BRACKET, MODULE & HEATER
9	MAY 95108-1
10	MAY 400021-1
10	MAY 95109-1
11	MAY 67672-1
12	MAY 68112-1
13	WPW10289690 Whirlpool Ice Maker Cover
14	SCREW
14	W10833902 Whirlpool Refrigerator Clamp
15	MAY 401017-1
15	MAY 60184-3
17	MAY 24685-1
18	WP627018 Whirlpool Refrigerator Nut
19	MAY 24685-5
20	WP627985 Whirlpool Icemaker Cycling Thermostat
20	MAY 95093-1
21	MAY 67428-1
22	MAY 68118-1
23	WPW10296793A Whirlpool Refrigerator Connector
24	MAY 67556-1
