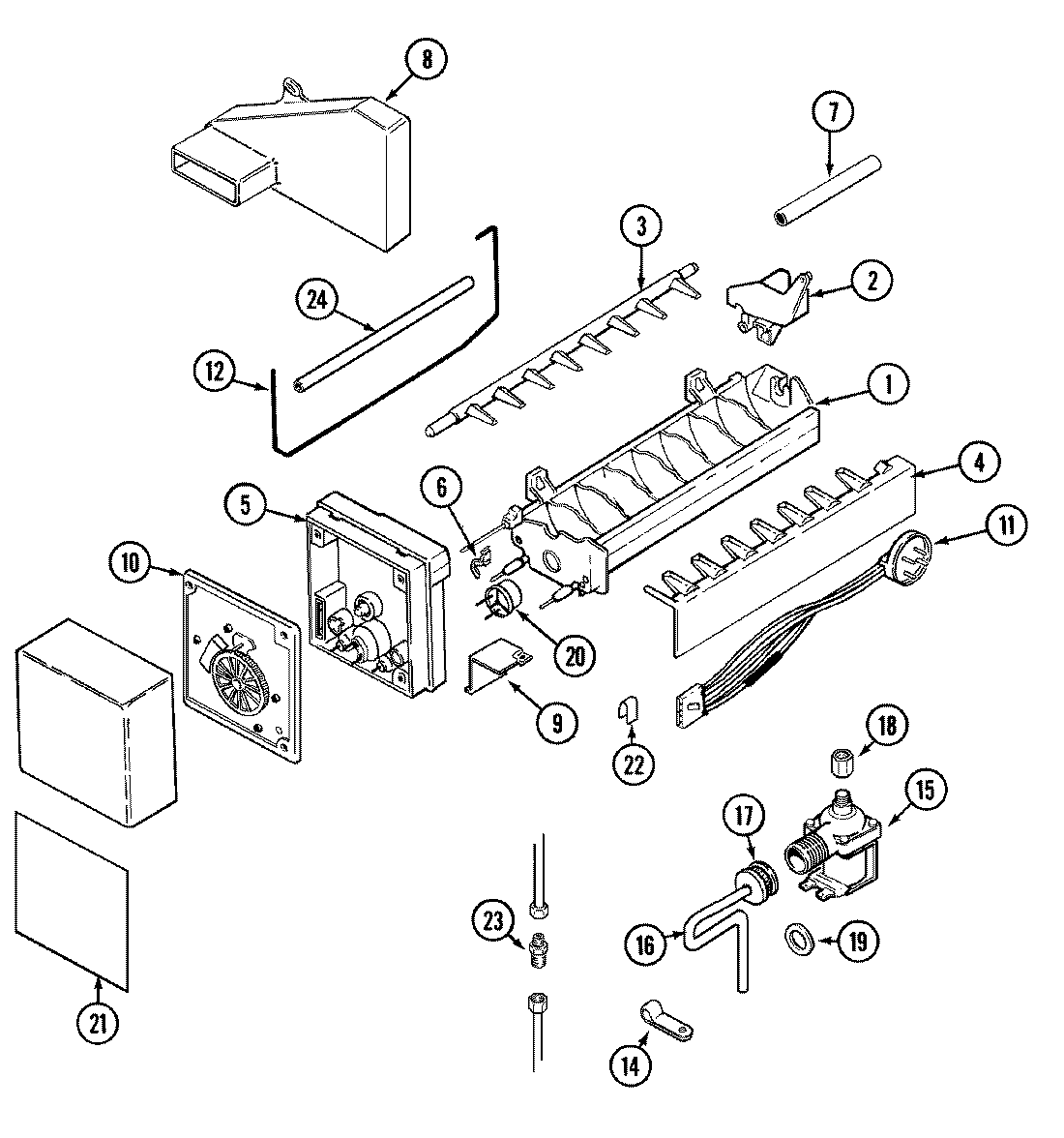

RAE20 01 – ICE MAKER KIT

Products

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1WP99003172 Whirlpool Silicone L
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP2195914 Whirlpool Refrigerator Ice Maker Housing
5SCREW
6WP2315522 Whirlpool Refrigerator Clip
9BRACKET, MODULE & HEATER
9MAY 95108-1
10MAY 95109-1
10MAY 400021-1
11MAY 67672-1
12MAY 68112-1
13WPW10289690 Whirlpool Ice Maker Cover
14SCREW
14W10833902 Whirlpool Refrigerator Clamp
15MAY 60184-3
15MAY 401017-1
16MAY 60219-3
17MAY 24685-1
18WP627018 Whirlpool Refrigerator Nut
19MAY 24685-5
20MAY 95093-1
20WP627985 Whirlpool Icemaker Cycling Thermostat
21MAY 67428-1
22MAY 68118-1
23WPW10296793A Whirlpool Refrigerator Connector
24MAY 67556-1
