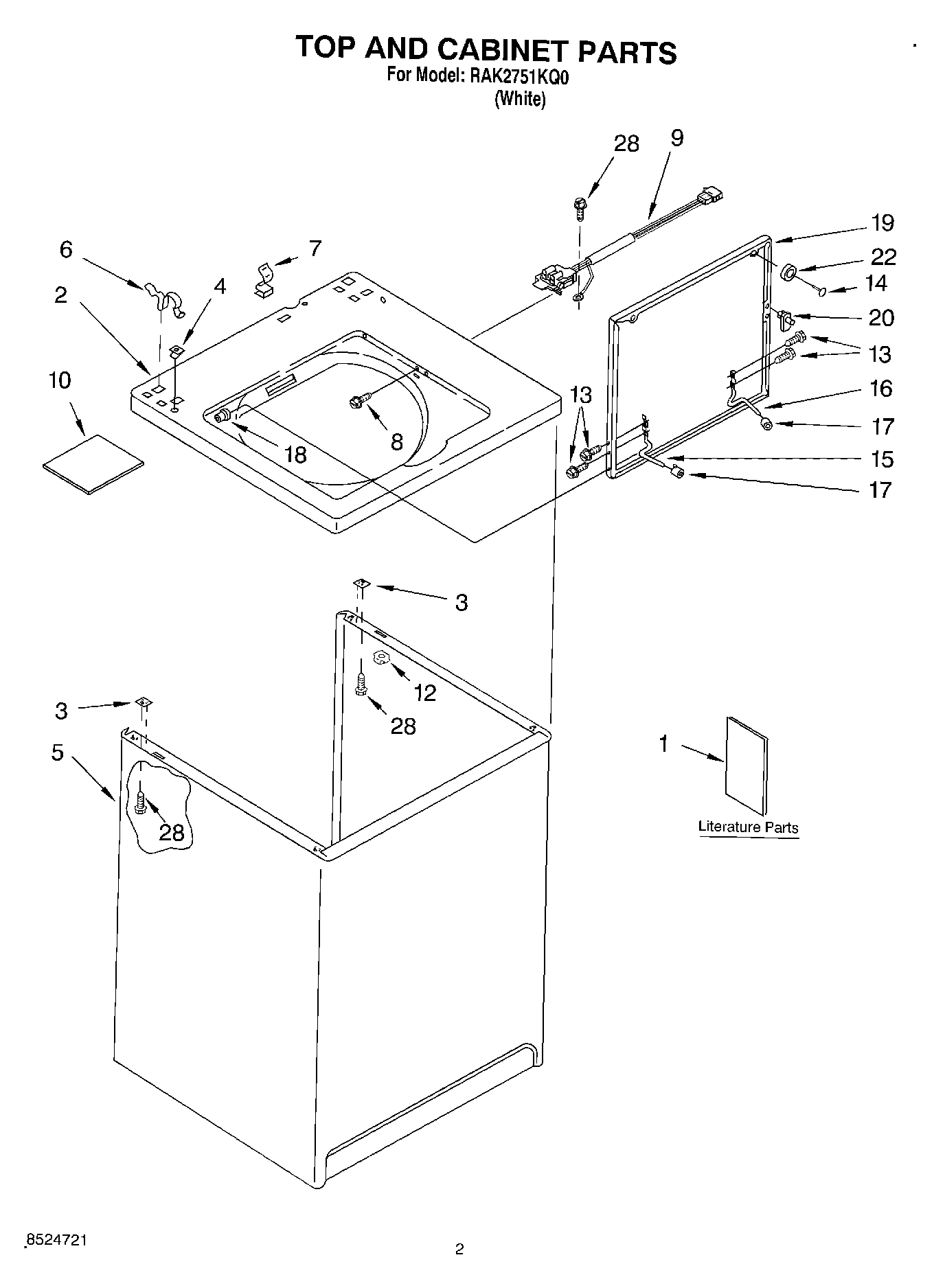

RAK2751KQ0 02 – TOP AND CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Repair Parts List)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Instructions, Coin Kit)
2	Top
3	WP62750 Whirlpool Spacer
4	Nut, Push-In (2)
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP90016 Whirlpool Clip
8	WP3356311 Whirlpool Screw
9	285671 Whirlpool Lid Switch Assembly
10	Shield, Pressure Switch
12	WP90406 Whirlpool Nut
13	SCREW
14	WP356907 Whirlpool Rivet
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WPW10193854 Whirlpool Lid Assembly
20	WP358684 Whirlpool Strike Assembly
22	BUMPER
28	WP3390631 Whirlpool Screw
