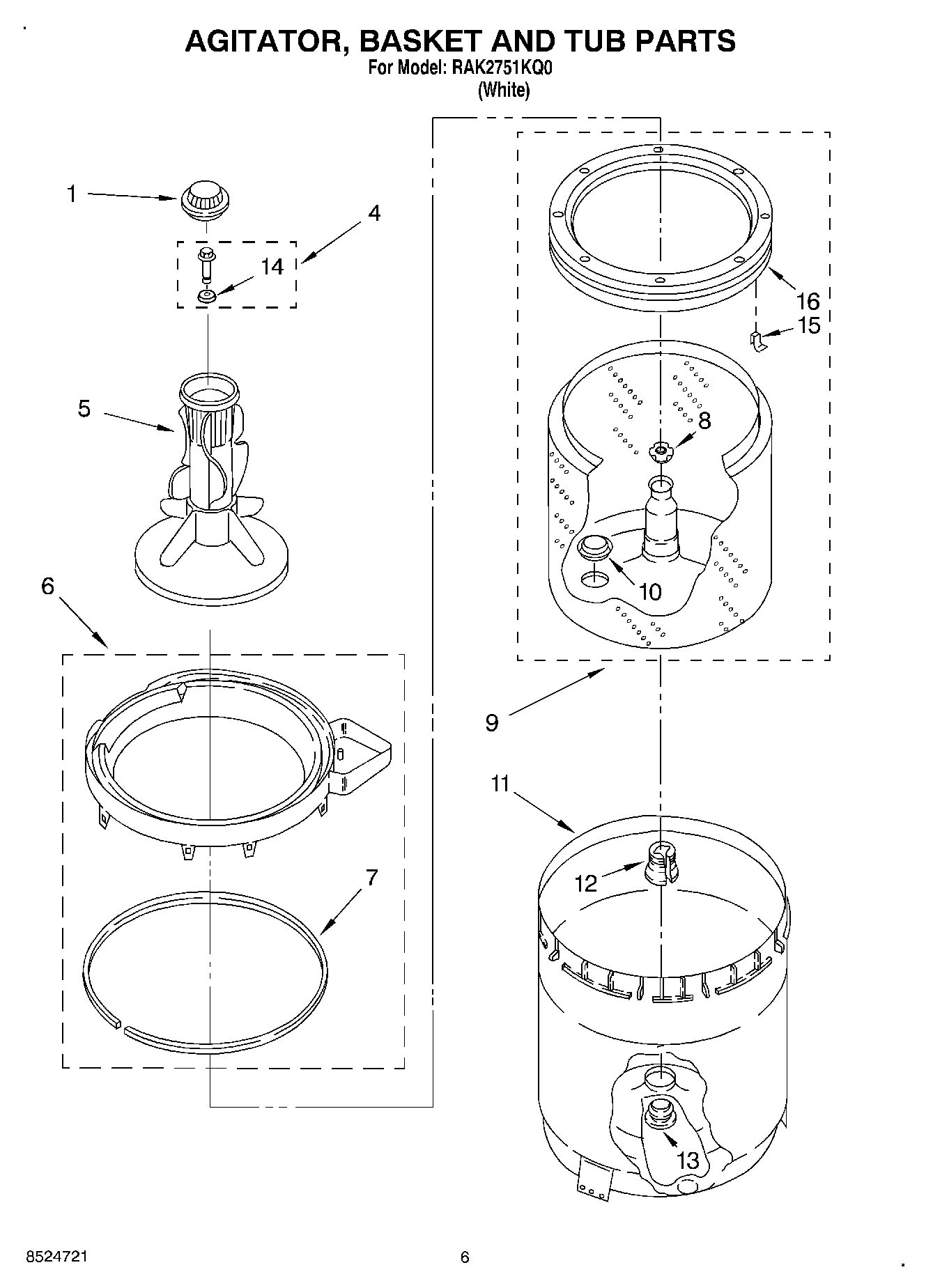

RAK2751KQ0 04 – AGITATOR, BASKET AND TUB

RAK2751KQ0 04 – AGITATOR, BASKET AND TUB

Written by

in

RAK2751KQ0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
4WP358237 Whirlpool Agitator Bolt
5Agitator
6Tub Ring & Gasket Assembly
7WP3359586 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9Basket and Balance Ring
10Snap-In-Plugs (4)
11Tub
12WP389140 Whirlpool Drive Block or Bell
13W10814296 Whirlpool Washer Center Post Seal Gasket
14WP3949550 Whirlpool Gasket Assembly
16WP8519815 Whirlpool Washer Balance Ring Clip
