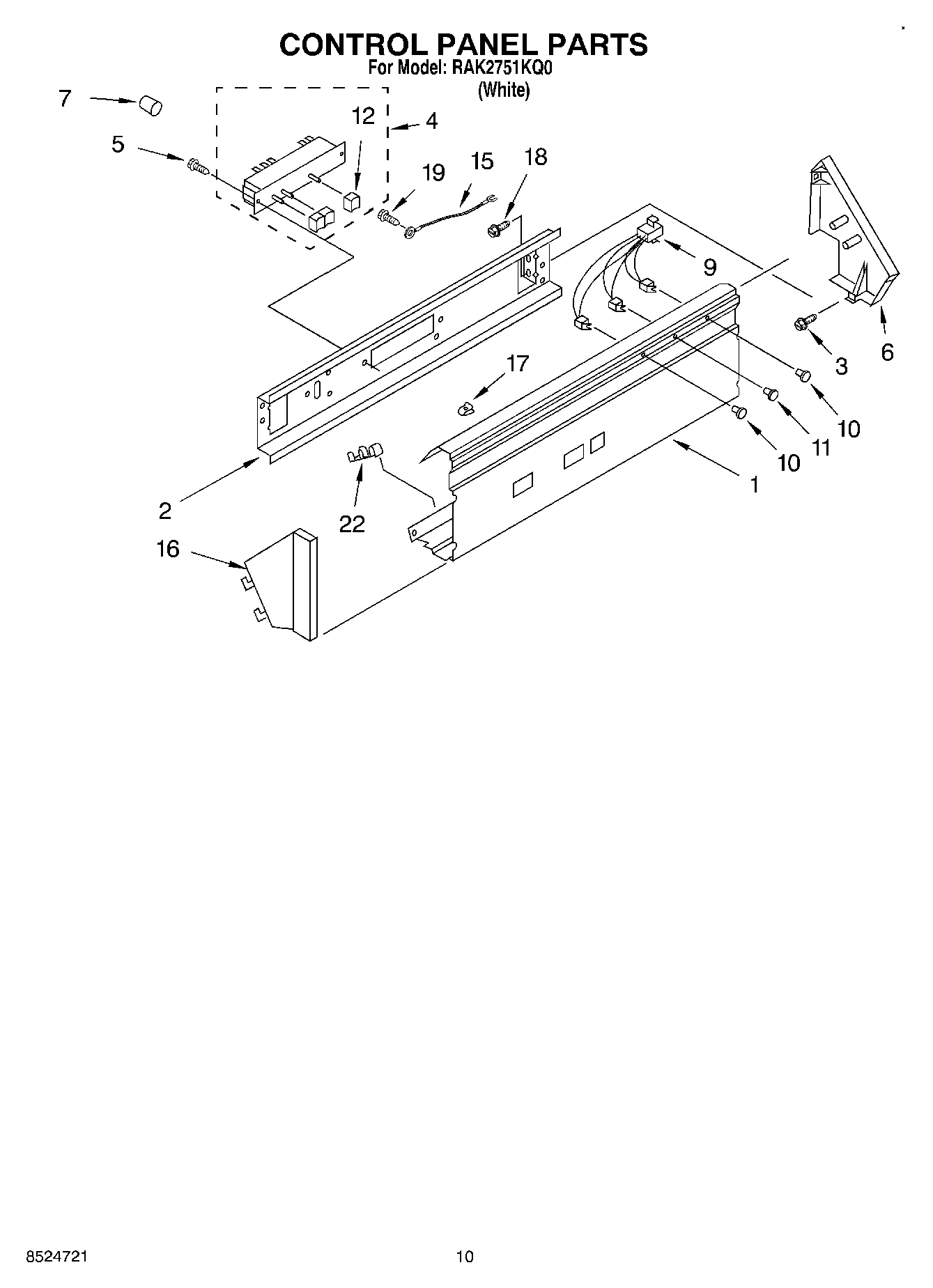

RAK2751KQ0 07 – CONTROL PANEL

Products

Position	Product
1	Panel, Console
2	Bracket, Control
3	WPW10109200 Whirlpool Screw
4	W10330142 Whirlpool Push Button Switch
5	WPW10139210 Whirlpool Screw
6	Cap, End (R.H.)
7	W10491983 Whirlpool Tine Tip
10	WP3348109 Whirlpool Light Lens
11	WP3348110 Whirlpool Light Lens
12	SWITCH-PB
15	Wire, Ground
16	W11686050 Whirlpool Drive Motor
17	WP689559 Whirlpool Nut
18	WP388326 Whirlpool Screw
19	3400073 Whirlpool Screw
22	W10113937 Whirlpool Clamp
