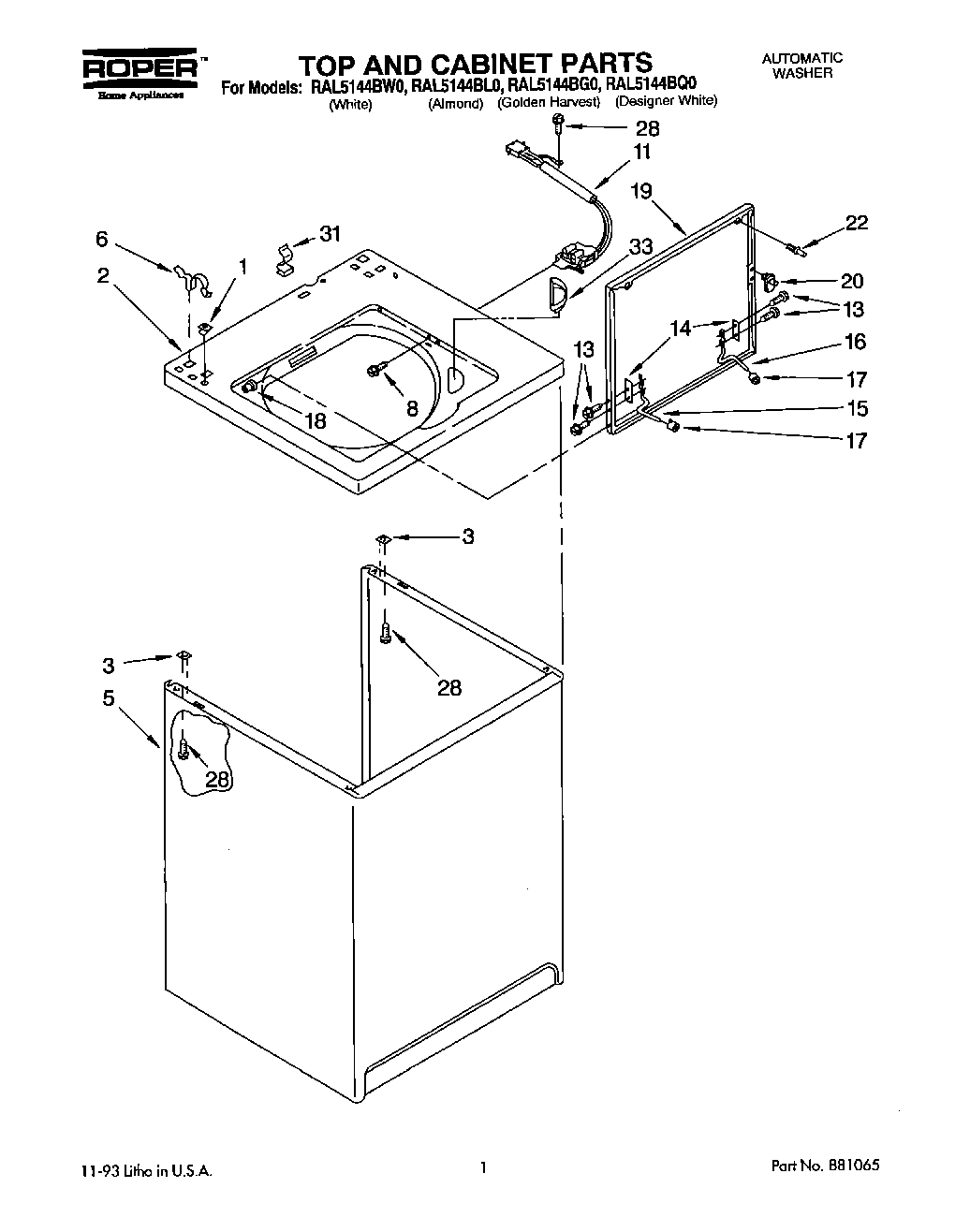

RAL5144BQ0 01 – TOP AND CABINET, LITERATURE/OPTIONA

RAL5144BQ0 01 – TOP AND CABINET, LITERATURE/OPTIONA

Written by

in

RAL5144BQ0 01 – TOP AND CABINET, LITERATURE/OPTIONA

Products

PositionProduct
WPL LIT3361368
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Golden Harvest
Golden Harvest (Uncut)
Shipping Kit
WPL 89121
WP285195 Whirlpool Sealer Assembly
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WPL LIT3357472
WPL LIT3360057
WPL LIT3361187
63580 Whirlpool Washer Fabric Softener Dispenser
350572 Whirlpool Oil Transmission 15 Oz
Drain Protector (Not Included)
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
285320 Whirlpool Washer Siphon Break Kit
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
1WP357213 Whirlpool Hinge Stopper
2Top (For White & Desinger White Models)
2Top (For Almond Model)
2Top (Golden Harvest)
3WP62750 Whirlpool Spacer
5Cabinet (Golden Harvest)
563424 Whirlpool Cabinet Assembly
5Cabinet (Almond)
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Golden Harvest)
19Lid (Almond)
19Lid (White)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28SCREW
31WP90016 Whirlpool Clip
33WP3362952 Whirlpool Bezel
