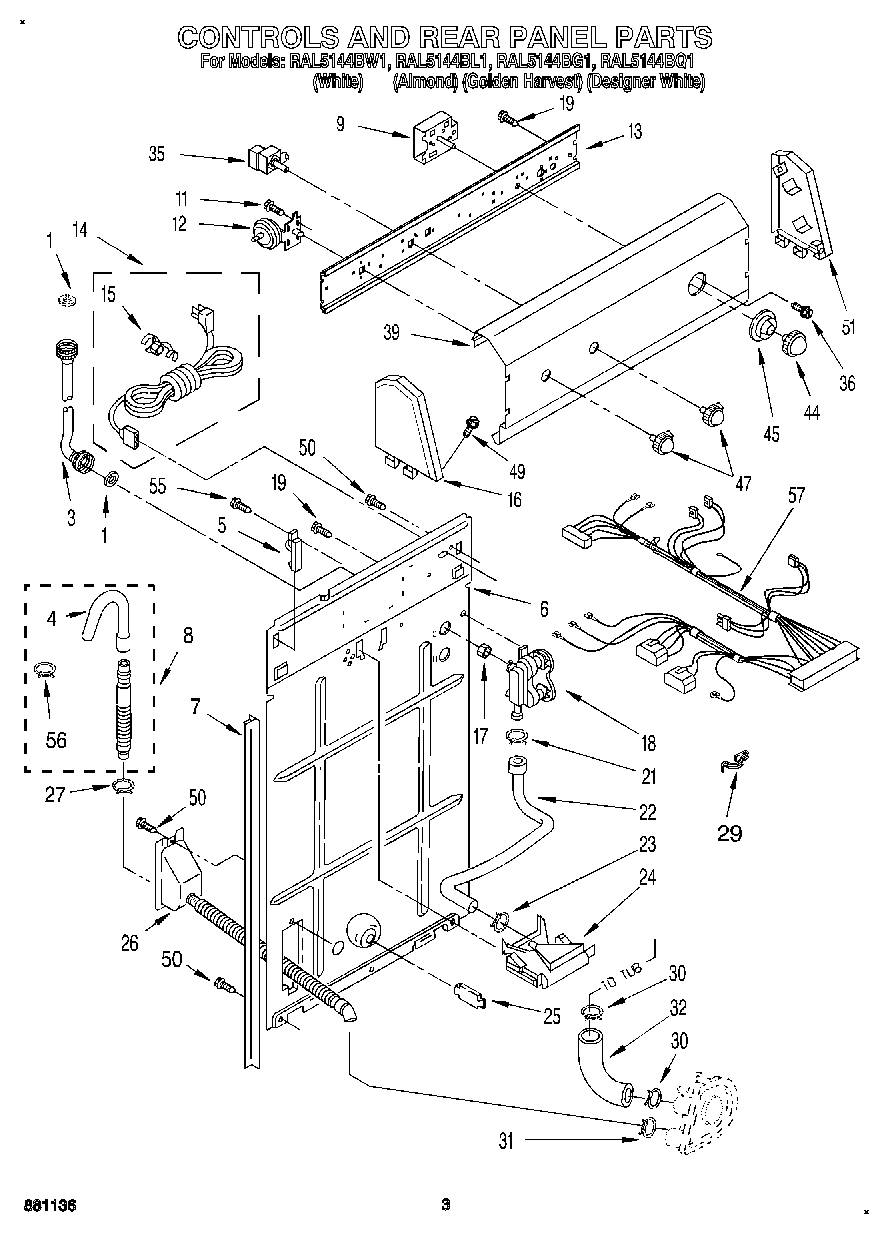

RAL5144BW1 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
11	WP90767 Whirlpool Screw
12	Switch, Water Level
13	WP3948608 Whirlpool Bracket
14	Cord, Power
15	Strain Relief, Power Cord
16	FOR MODEL REL4632BQ3
16	Cap, End (L.H.)
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
29	8528351 Whirlpool Clip
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
35	Switch, Water Temperature
36	WP356418 Whirlpool Screw
39	Panel, Console (For White, Almond & Gold Models)
39	Panel, Console (For Designer White Model)
44	280193 Whirlpool Timer Knob
44	Knob, Timer (For Designer White Model)
45	Di
45	Dial, Timer
47	WPL 3354748
47	Knob, Temperature
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.)
51	FOR MODEL REL4632BQ3
55	WP308685 Whirlpool Microwave Screw
56	WP3357331 Whirlpool Clamp
57	WPL 3359836
