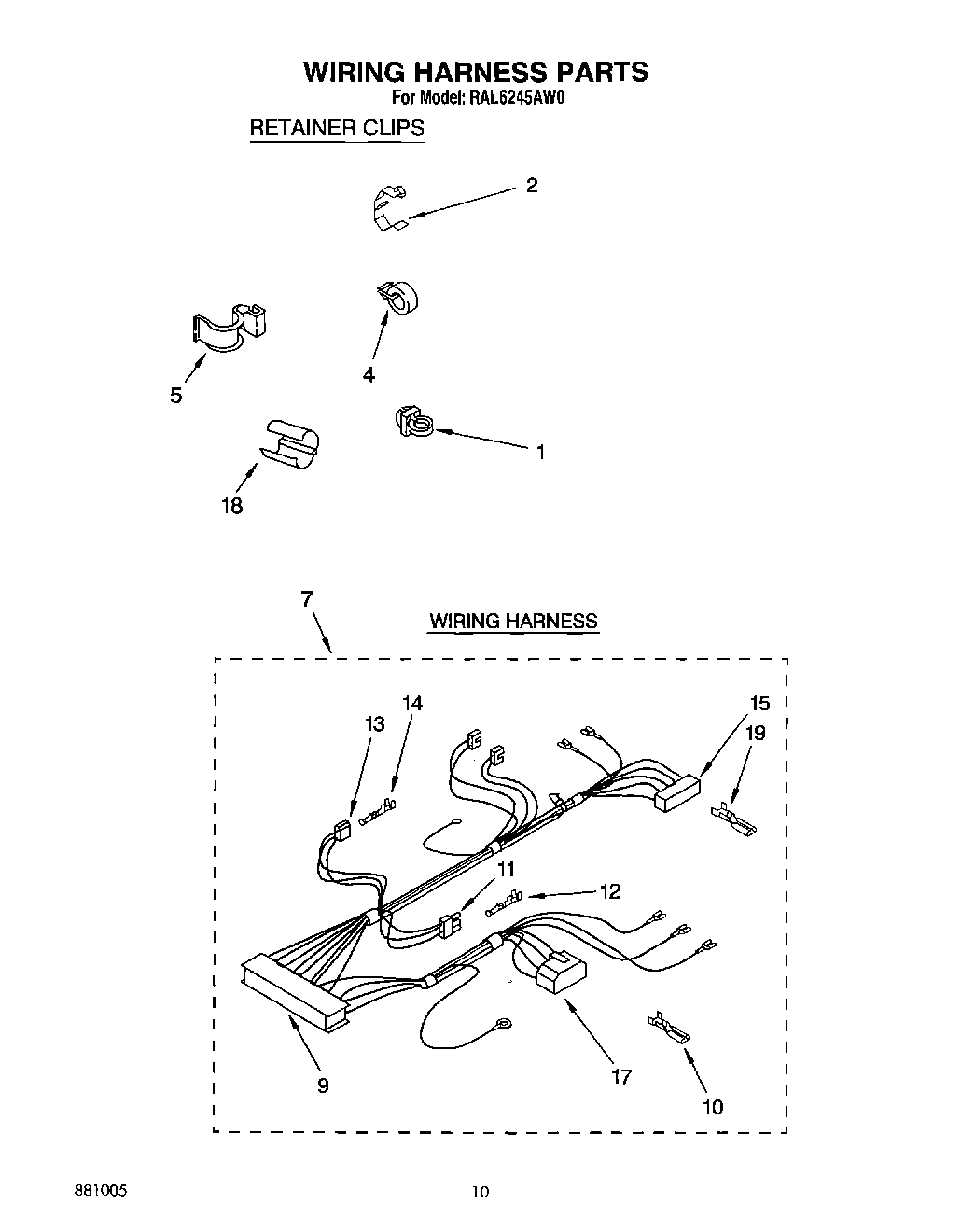

RAL6245AW0 09 – WIRING HARNESS

Products

Position	Product
1	Clip, Harness
2	Clip, Harness
4	8559320 Whirlpool Clip
5	WP90016 Whirlpool Clip
7	WPL 3359831
9	Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365)
10	Terminal, Female
11	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12	WP94614 Whirlpool Terminal
13	353424 Whirlpool Connector
14	WP596797 Whirlpool Terminal
15	WP62505 Whirlpool Connector
17	Block, Disconnect
18	Protector, Harness
19	Terminal
