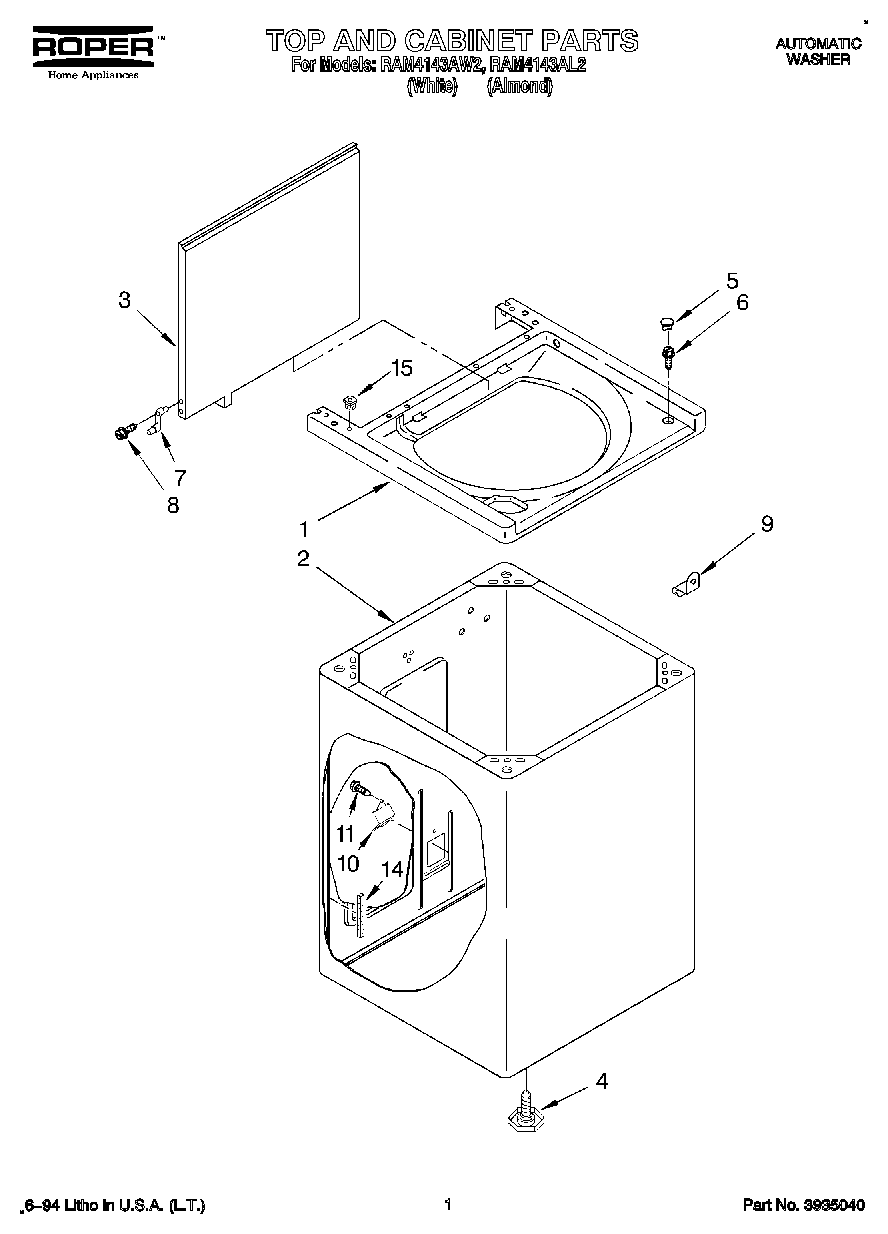

RAM4143AW2 01 – TOP AND CABINET, LIT/OPTIONALadmin2025-04-26T11:32:28+00:00RAM4143AW2 01 – TOP AND CABINET, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| Sheet, Installation Instructions |
| Guide, Use and Care |
| Label, Wiring Diagram |
| WP384496 Whirlpool Hose Coupling |
| Almond (Uncut) |
| Leveler (Thinner) |
| WP72107 Whirlpool Touchup |
| 799344 Whirlpool Refrigerator Paint |
| Energy Guide |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 350956 Whirlpool Spray Assembly |
| 350938 Whirlpool Spray Gun |
| 1 | Top (Almond) |
| 1 | Top (White) |
| 2 | Cabinet (Almond) |
| 2 | Cabinet (White) |
| 3 | Lid (White) |
| 3 | Lid (Almond) |
| 4 | Foot (4) |
| 5 | Bumper, Lid (White) |
| 5 | Bumper, Lid (Almond) |
| 6 | Screw, Top To Cabinet (2) |
| 7 | Hinge, Lid (2) |
| 8 | Screw, Lid Hinge Mounting (2) |
| 9 | Clip, Cabinet To Top |
| 10 | Cover, Pump |
| 11 | Screw, Balance Ring (4) |
| 14 | Protector, Edge |
| 15 | WP357213 Whirlpool Hinge Stopper |
