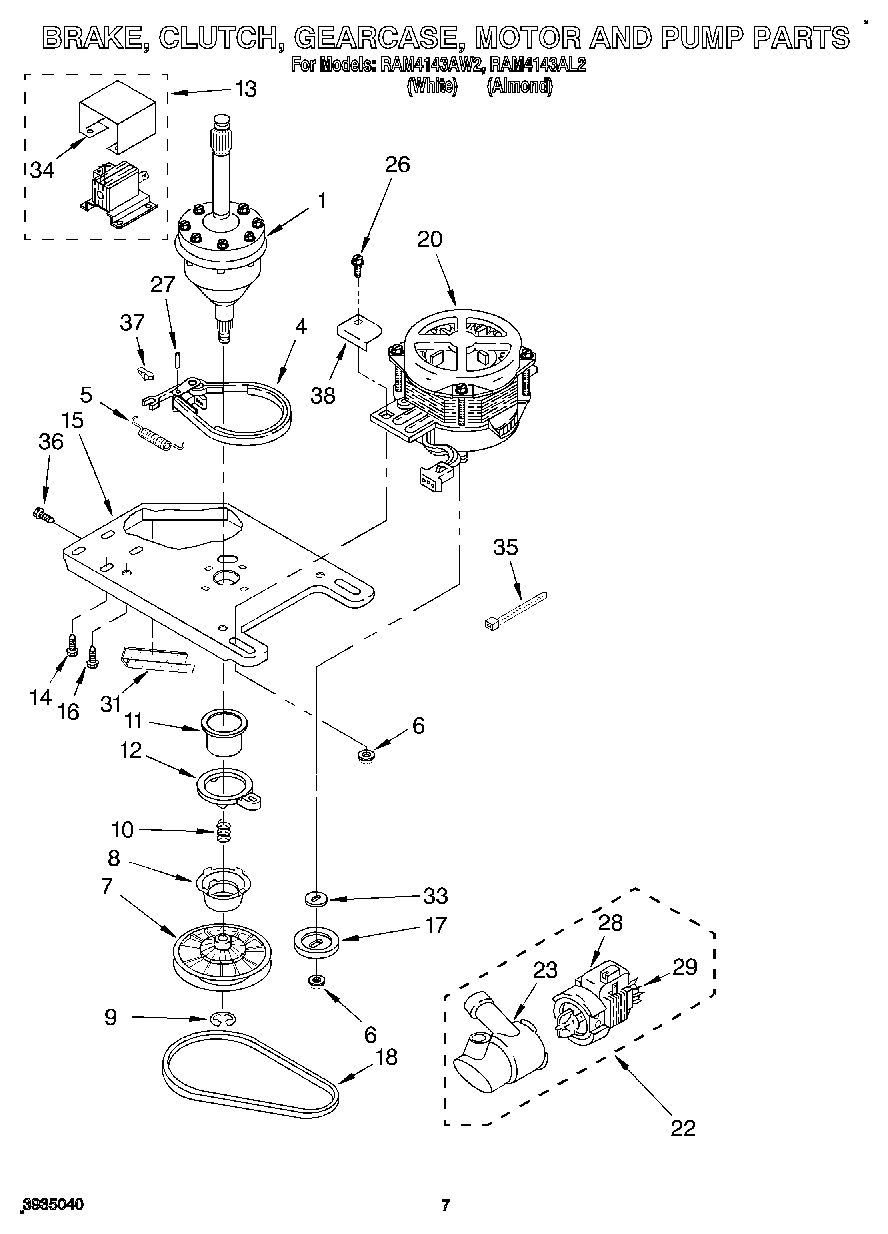

RAM4143AW2 05 – BRAKE, CLUTCH, GEARCASE, MOTOR & PUMP

Products

PositionProduct
1Gearcase Assembly
4Brake Band
5Spring, Brake
690984 Whirlpool Nut
7Pulley, Splutch
8Cam, Splutch
9WP354987 Whirlpool C-Clip
10Spring, Splutch
11Slider, Splutch
12Cam Ring, Splutch
13Solenoid
14Screw, Solenoid Mtg. (4)
15Plate, Motor Mount
16Bolt, Motor Plate (4)
17Pulley, Motor
18Drive Belt
20Motor, Main Drive (Includes Items 33, 17, & 6)
22Pump (Complete)
23Housing, Pump
26Bolt, Motor Mounting (2)
27Pin, Brake Band
28Pump
29Blade, Fan
31Protector, Edge
33Washer, Pulley
34Solenoid Shield, Top
35WP2205813 Whirlpool Refrigerator Wire Tie
36WP3351614 Whirlpool Screw
37Lock, Solenoid
38Shield, Motor Connector
