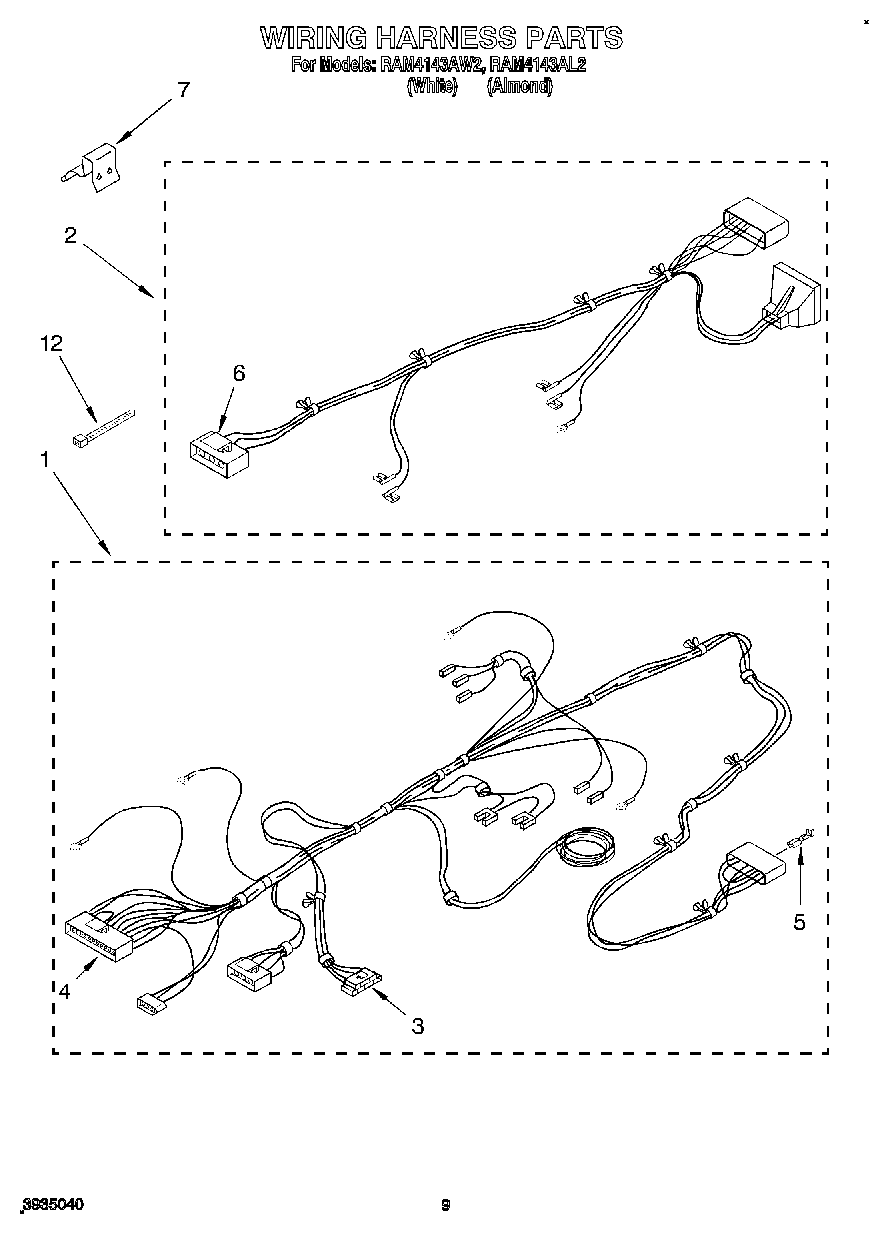

RAM4143AW2 07 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness, Wiring (Upper)
2	Harness, Wiring (Lower)
3	Block, Disconnect
4	Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365)
5	(Use Term)
6	Block, Disconnect (Motor) (Uses Terminal No.310222)
7	Clip, Harness
12	WP2205813 Whirlpool Refrigerator Wire Tie
