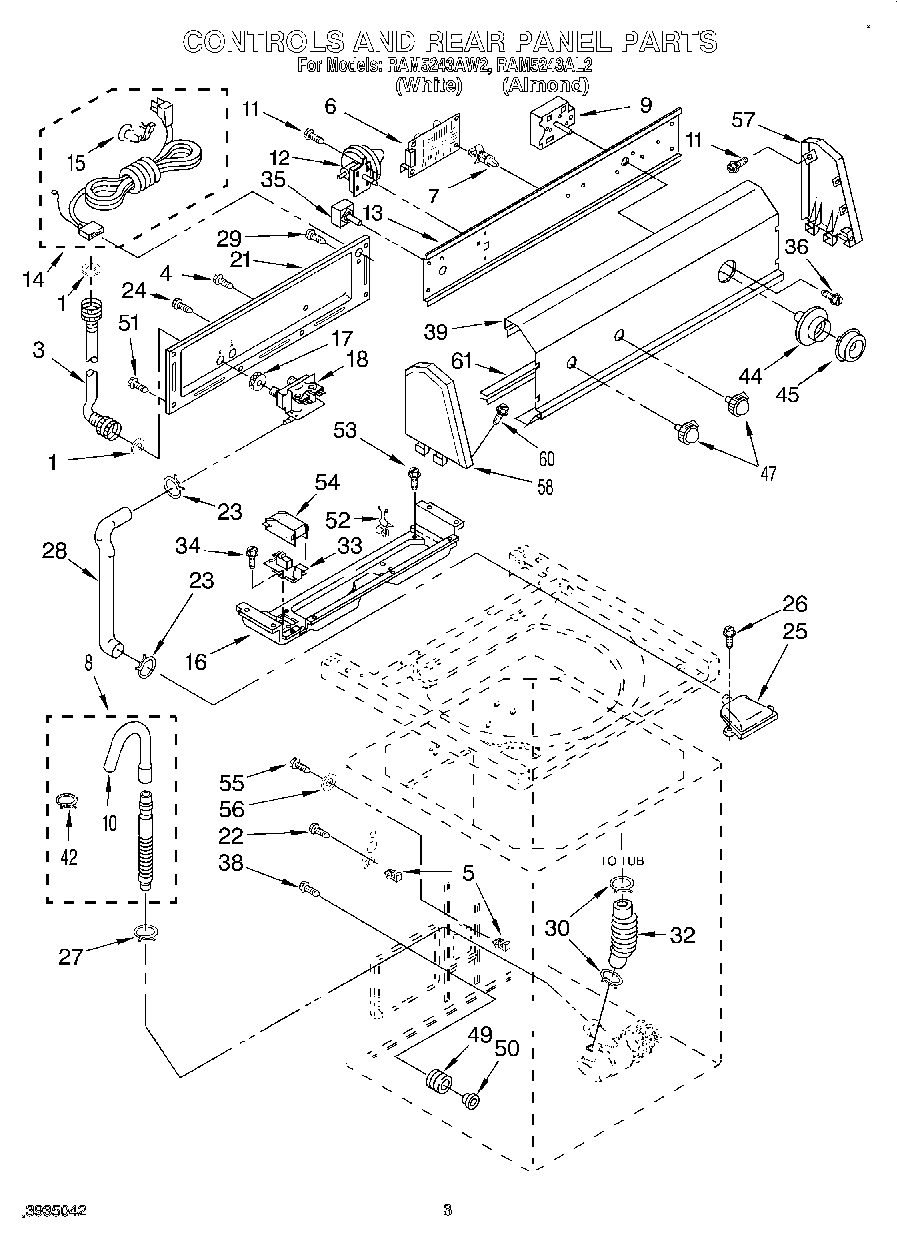

RAM5243AL2 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
4	Screw, Console Cover (4)
5	Clip, Harness
6	Board, Control
7	Stand Off
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
8	285702 Whirlpool Extensions
9	Timer, Control (60 Hz.)
10	WP3357027 Whirlpool Nozzle Assembly
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Pan, Console
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	Valve, Water Mixing
21	Panel, Rear
23	WP596669 Whirlpool Hose Clamp
25	Water Inlet (Lower)
25	Water Inlet (Upper)
26	Screw, Solenoid Mtg. (4)
27	WP356138 Whirlpool Hose Clamp
28	Hose, Valve To Water Inlet
29	WP3351614 Whirlpool Screw
30	WP616099 Whirlpool Clamp
32	Hose, Pump To Tub
33	Switch, Lid
34	WP3400872 Whirlpool Screw
35	Switch, Water Temperature
36	WP3428970 Whirlpool Refrigerator Screw
38	Screw, Pump Mtg. (2)
39	Panel, Console
42	WP3357331 Whirlpool Clamp
44	Dial, Timer
45	280193 Whirlpool Timer Knob
47	Knob, Temperature
49	Grommet, Pump
50	Spacer, Pump (3)
51	Screw
52	Clip, Coil (2)
53	Screw, Top To Cabinet (2)
54	Shield, Lid Switch
55	Screw, Balance Ring (4)
56	Washer
57	Cap, End (R.H.)
58	Cap, End (L.H.)
60	WP388326 Whirlpool Screw
61	Extrusion, Console To Top
