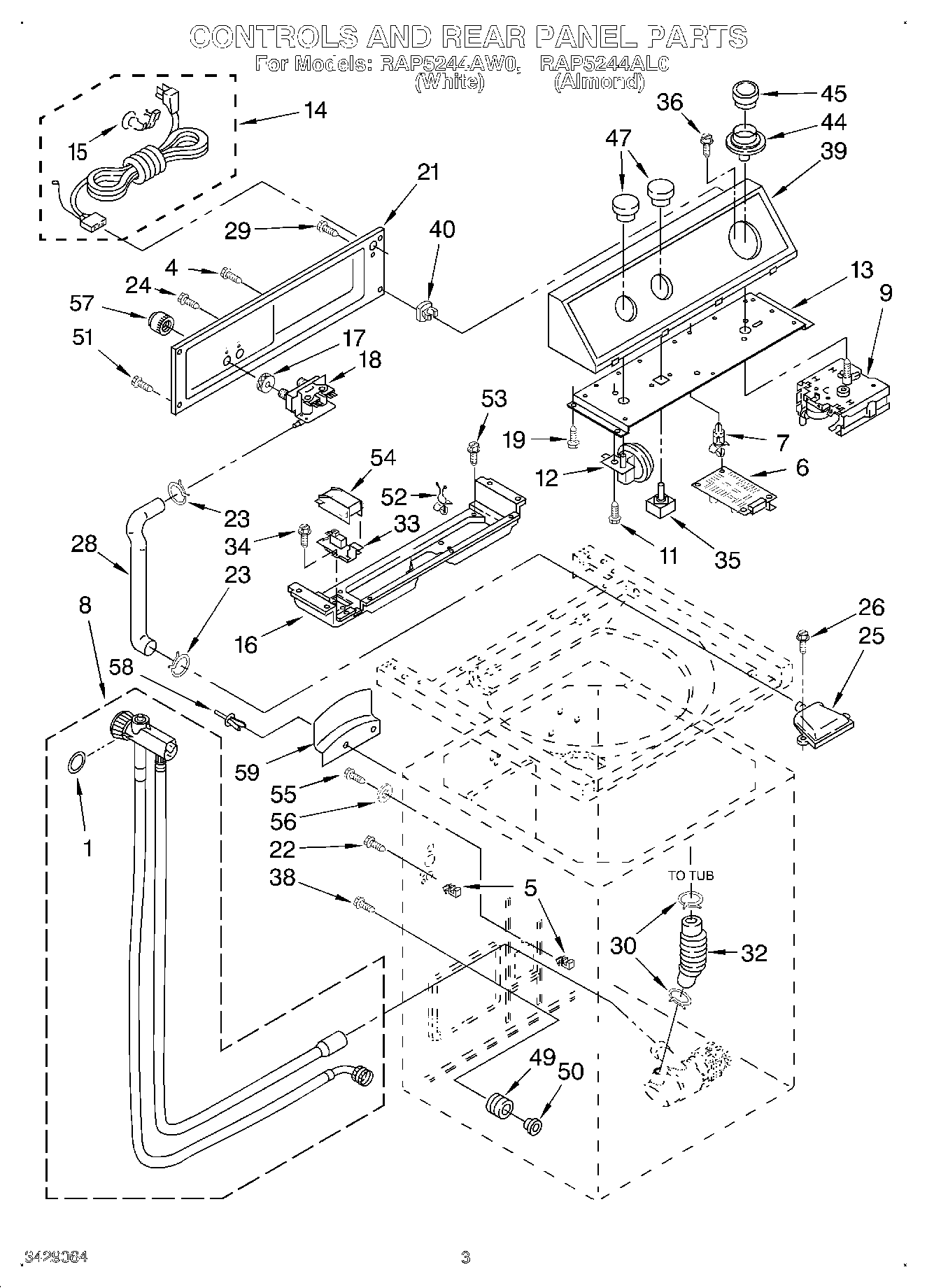

RAP5244AL0 02 – CONTROLS AND REAR PANELadmin2025-04-26T11:40:41+00:00RAP5244AL0 02 – CONTROLS AND REAR PANEL
Products
| Position | Product |
|---|
| 1 | Seal |
| 4 | Screw, Console Cover (4) |
| 5 | Clip, Harness |
| 6 | Board, Control |
| 7 | Stand Off, Small (2) |
| 7 | Stand Off, Large (2) |
| 8 | W10849778 Whirlpool Hose Assembly |
| 9 | Timer, Control (60 Hz.) |
| 12 | Switch, Water Level |
| 13 | Bracket, Control |
| 14 | Cord, Power |
| 15 | Strain Relief, Power Cord |
| 16 | Pan, Console |
| 17 | WP96160 Whirlpool Washer Inlet Valve Screen |
| 18 | Valve, Water Mixing |
| 21 | Cover, Console Rear |
| 23 | WP596669 Whirlpool Hose Clamp |
| 25 | Water Inlet (Upper) |
| 25 | Water Inlet (Lower) |
| 26 | Screw, Solenoid Mtg. (4) |
| 28 | Hose, Valve To Water Inlet |
| 29 | WP3351614 Whirlpool Screw |
| 30 | WP616099 Whirlpool Clamp |
| 32 | Hose, Pump To Tub |
| 33 | Switch, Lid |
| 34 | WP3400872 Whirlpool Screw |
| 35 | Switch, Water Temperature |
| 36 | WP3428970 Whirlpool Refrigerator Screw |
| 38 | Screw, Pump Mtg. (2) |
| 39 | Panel, Console (Includes Inlay) (White) |
| 39 | Panel, Console (Includes Inlay) (Almond) |
| 40 | WP689559 Whirlpool Nut |
| 44 | Dial, Timer |
| 45 | 280193 Whirlpool Timer Knob |
| 47 | Knob, Temperature |
| 49 | Grommet, Pump |
| 50 | Spacer, Pump (3) |
| 51 | Screw |
| 52 | Clip, Coil (2) |
| 53 | Screw, Top To Cabinet (2) |
| 54 | Shield, Lid Switch |
| 55 | Screw, Balance Ring (4) |
| 56 | Washer |
| 57 | WP356054 Whirlpool Cap Assembly |
| 58 | Rivet |
| 59 | Bracket, Hose Storage |
