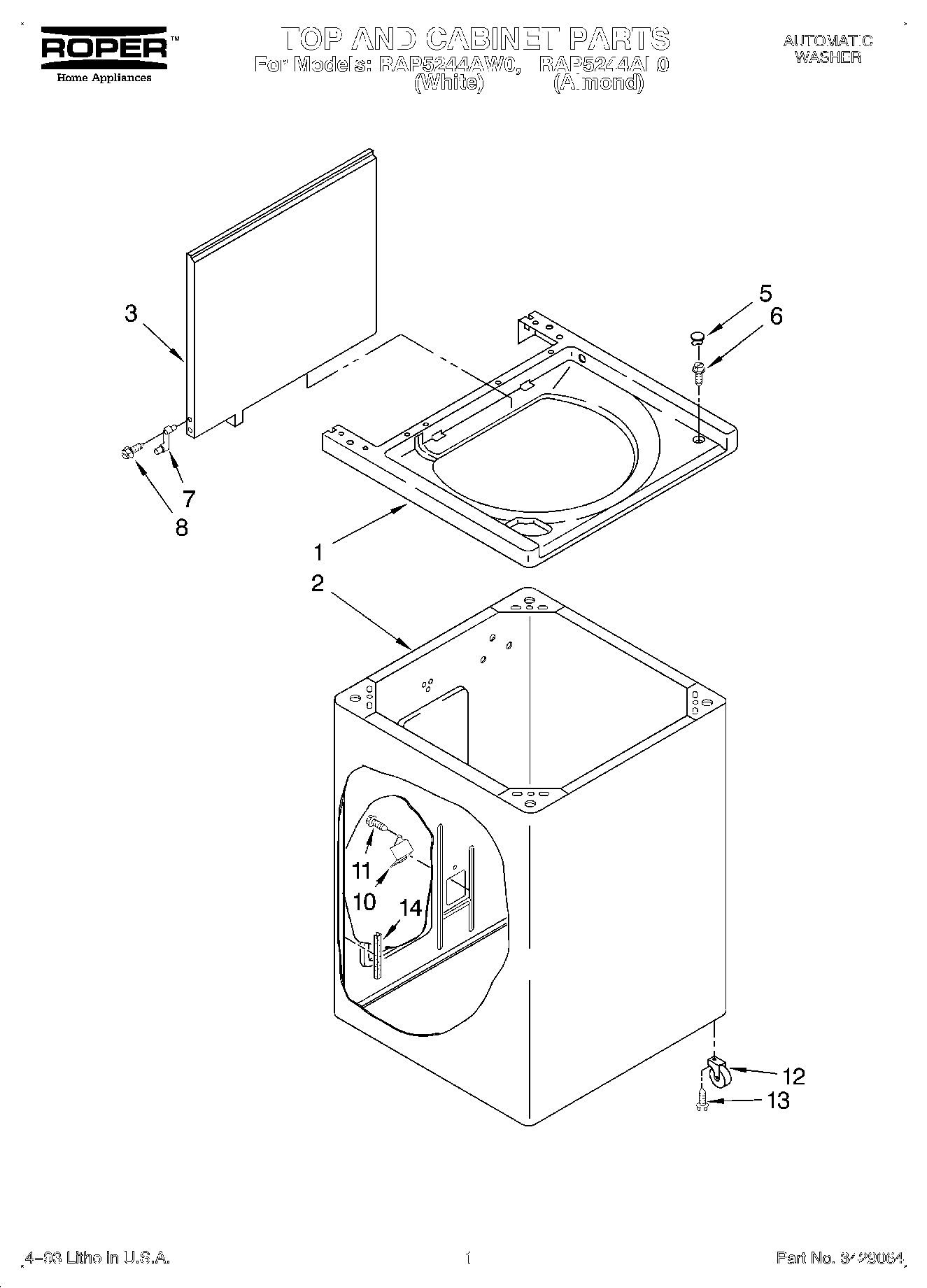

RAP5244AW0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Sheet, Installation Instructions
	Dryer Stack Stand
	Wall Mount
	285677 Whirlpool Convection Kit
	Label, Wiring Diagram
	Guide, Use and Care
	Energy Guide
	WP384496 Whirlpool Hose Coupling
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
1	Top (White)
1	Top (Almond)
2	Cabinet (Almond)
2	Cabinet (White)
3	Lid (White)
3	Lid (Almond)
5	Bumper, Lid (Almond)
5	Bumper, Lid (White)
6	Screw, Top To Cabinet (2)
7	Hinge, Lid (2)
8	Screw, Lid Hinge Mounting (2)
10	Cover, Pump
11	Screw, Balance Ring (4)
12	Caster (4)
13	Screw
14	Protector, Edge
