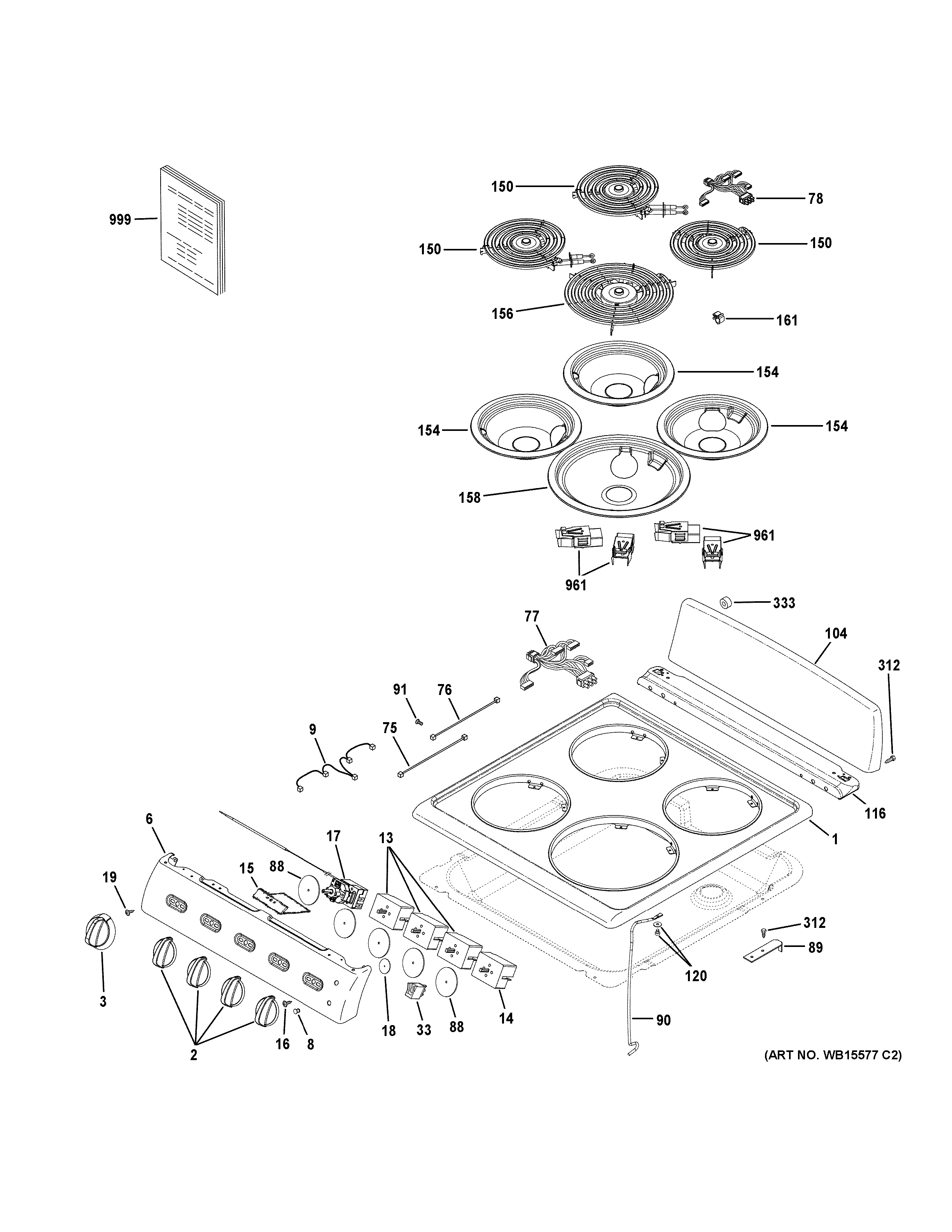

RAS200DM1WW CONTROL PANEL & COOKTOPadmin2025-04-26T10:25:02+00:00RAS200DM1WW CONTROL PANEL & COOKTOP ProductsPositionProduct1WB62X31056 GE Range Top2WB03X31034 GE Infinite Knob White3WB03X31035 GE Oven White Thermostat Knob6MANIFOLD PANEL8WB25T10041 GE Oven Lens9WB18X31030 GE Pilot Harness13WB24X31917 GE Oven Infinite Switch14WB24X31082 GE Oven Infinite Switch15COVER THERMOSTAT16WB01X23501 GE Oven Screw 8-32 Tapping Flat Head17WB24X21192 GE Oven Electric Thermostat18SEAL VALVE19WB1K8 GE Oven Thermostat Screw33WB25K10002 GE Stove Oven Cooktop Pilot Lamp75HARNESS GROUND76WB18X30895 GE Ground Harness77WB18X31029 GE Main Harness78WB18X31031 GE Surface Heating Harness Assembly88SEAL VALVE89COOKTOP PIVOT90ROD SUPPORT91WB1X1261 GE Oven Screw104WB36X31183 GE Backsplash Oven116WB36X31052 GE Oven Cooktop Complement120WB1K84 GE Oven Screw and150WB31X46067 GE 6" Surface Burner154BOWL BURNER 6 (CH)156WB31X46066 GE Surface Burner 8"158BOWL BURNER 8 (CH)161CLIP WIRE312WB01K10091 GE Oven Screw333WB01K10020 GE Oven Handle Spacer961WB17T10006 GE Oven Burner Receptacle Block999PM INSTALL INSTRUCTIONS999PM INSTALL INSTRUCTIONS999PM QUICK GUIDE999PM MANUAL MINI & WD ASM
