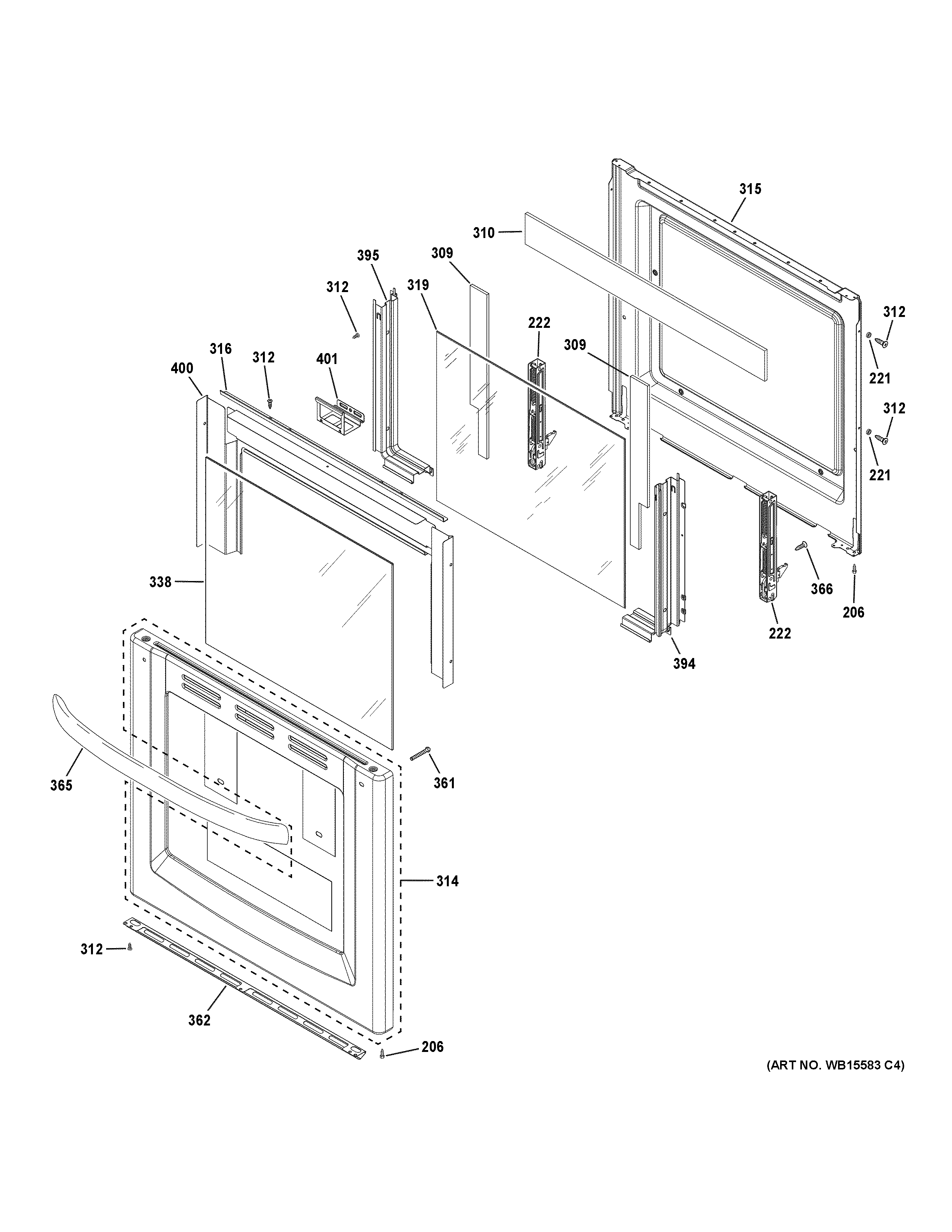

RAS240DM2WW DOOR PARTS

RAS240DM2WW DOOR PARTS

Written by

in

RAS240DM2WW DOOR PARTS

Products

PositionProduct
206WB01X26995 GE Oven Screw 8-18 AB X 5/16
221WB02K10294 GE Oven Grommet
222WB10X30929 GE Door Hinge
309INSULATION INNER DOOR
310WB35X32513 GE Door Insulation
312WB01K10091 GE Oven Screw
314DOOR & FOIL ASM
315WB56X31128 GE Door Liner
316DEFLECTOR UPPER DOOR
319WB56X31925 GE Door Glass Liner
338WB56X31140 GE Glass Door Assembly
361WB01T10008 GE Oven Screw 10-32
362WB56X31921 GE Barrier Door
365WB15X31132 GE Oven Door Handle
366SCREW
394CRYSTAL BOTTOM SUPPORT
395CRYSTAL BOTTOM SUPPORT
400GUARD INSULATION
401BRACKET UPPER DOOR
