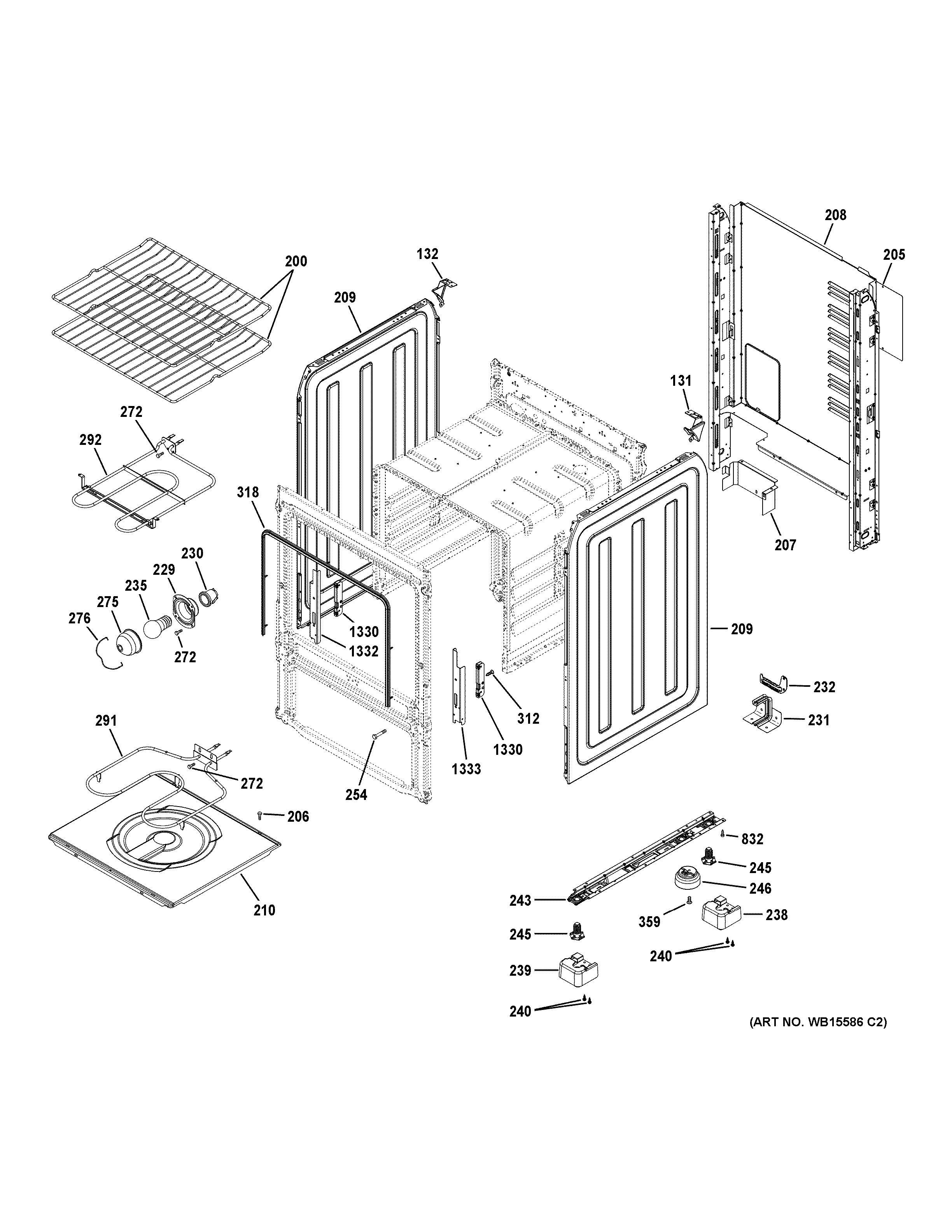

RAS300DM1WW BODY PARTS

RAS300DM1WW BODY PARTS

Written by

in

RAS300DM1WW BODY PARTS

Products

PositionProduct
131WB02X31043 GE Oven Right-Hand Side Complement
132WB02X31044 GE Oven Left Hand Side Complement
200WB48X30918 GE Oven Rack
205TABLET COVER
206WB01X26995 GE Oven Screw 8-18 AB X 5/16
207COVER KNOCKOUT
208COVER BACK
209WB56X30953 GE Oven White Side Panel Assembly
210WB63X30922 GE Oven Bottom Cover
229WB08K10010 GE Receptacle Housing
230WB08T10026 GE Range Push-In Receptacle
231WB02X30959 GE Refrigerator Anti-Tip Bracket Assembly
232WB02K10124 GE Oven Anti-Tip Arm
235RANGE ONLY 40W 120V APPL BULB
238COVER SUPPORT BASE
239WB16X31026 GE Cover Support Base
240WB01X31119 GE Screw 8-18
243WB37X30907 GE Base Support
245WB02X31920 GE Appliance Foot Leveling
246SPACER BASE
254WB01X30980 GE Screw
272WZ4X345D GE Screw Package 12 C92
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
291HEATER BAKE
292WB44X31037 GE Oven Broil Element 240V
312WB01K10091 GE Oven Screw
318WB32X31916 GE Door Gasket
359GEN WB01K0078
832WR01X10065 GE Screw
1330WB10X31976 GE Receiver Hinge
1332WB10X30947 GE Left Hand Gusset Hinge
1333WB10X30946 GE Right Hand Hinge Gusset
