RAS300DM1WW CONTROL PANEL & COOKTOP

RAS300DM1WW CONTROL PANEL & COOKTOP

Written by

in

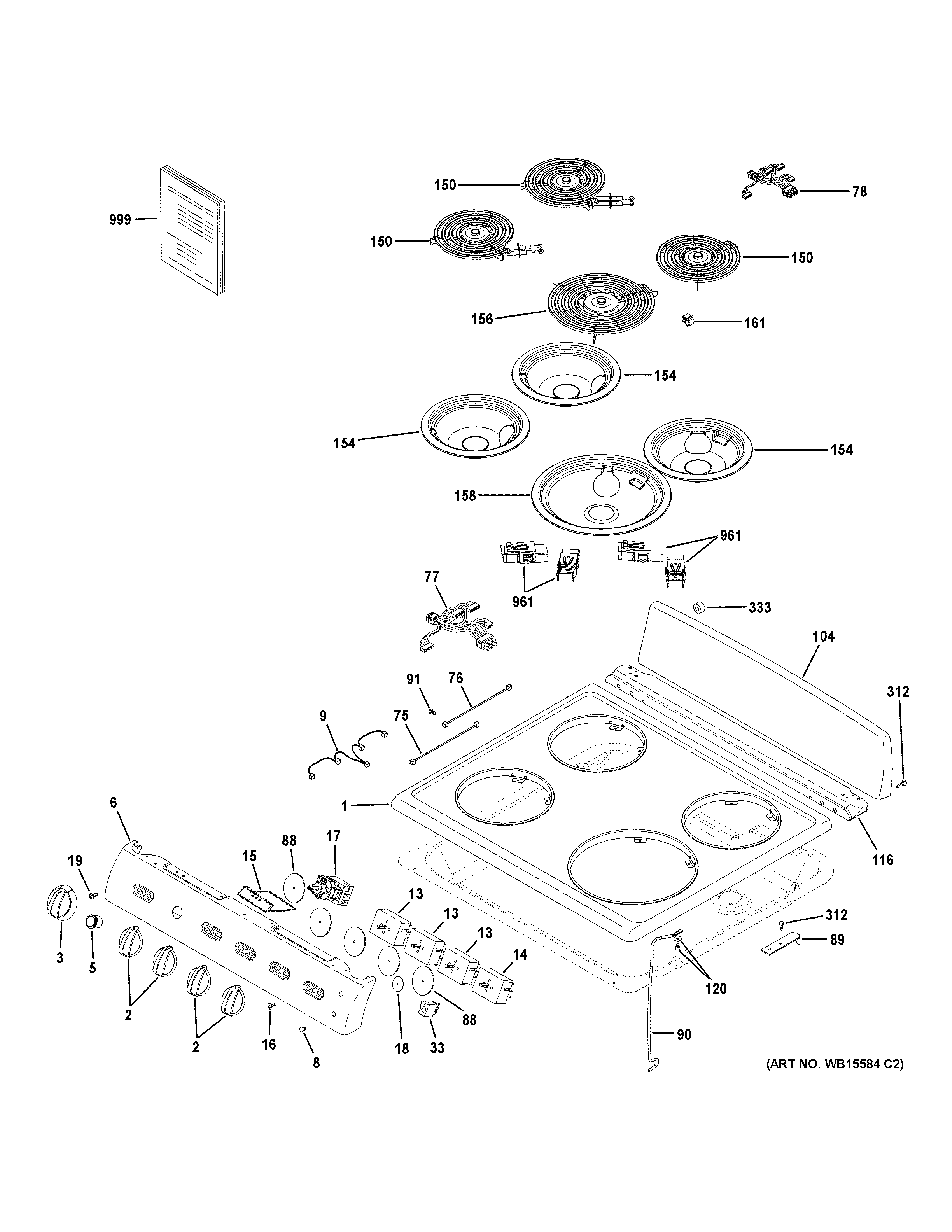

RAS300DM1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X31129 GE Range Top Assembly
2WB03X31034 GE Infinite Knob White
3WB03X31035 GE Oven White Thermostat Knob
5WB24X31930 GE Range Switch
6MANIFOLD PANEL
8WB25T10041 GE Oven Lens
9WB18X31030 GE Pilot Harness
13WB24X31917 GE Oven Infinite Switch
14WB24X31082 GE Oven Infinite Switch
15COVER THERMOSTAT
16WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
17WB24X21192 GE Oven Electric Thermostat
18SEAL VALVE
19WB1K8 GE Oven Thermostat Screw
33WB25K10002 GE Stove Oven Cooktop Pilot Lamp
75HARNESS GROUND
76WB18X30895 GE Ground Harness
77WB18X31131 GE Main Harness
78WB18X31031 GE Surface Heating Harness Assembly
88SEAL VALVE
89COOKTOP PIVOT
90ROD SUPPORT
91WB1X1261 GE Oven Screw
104WB36X31382 GE 60-Inch Backguard
116COMPLEMENT RANGETOP
120WB1K84 GE Oven Screw and
150WB31X46067 GE 6" Surface Burner
154BOWL BURNER 6 (CH)
156WB31X46066 GE Surface Burner 8"
158BOWL BURNER 8 (CH)
161WB02K10133 GE Oven Receptacle Clip
312WB01K10091 GE Oven Screw
333WB01K10020 GE Oven Handle Spacer
961WB17T10006 GE Oven Burner Receptacle Block
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
999PM QUICK GUIDE
999PM INSTALL INSTRUCTIONS
