RAS300DM1WW DOOR & DRAWER PARTS

RAS300DM1WW DOOR & DRAWER PARTS

Written by

in

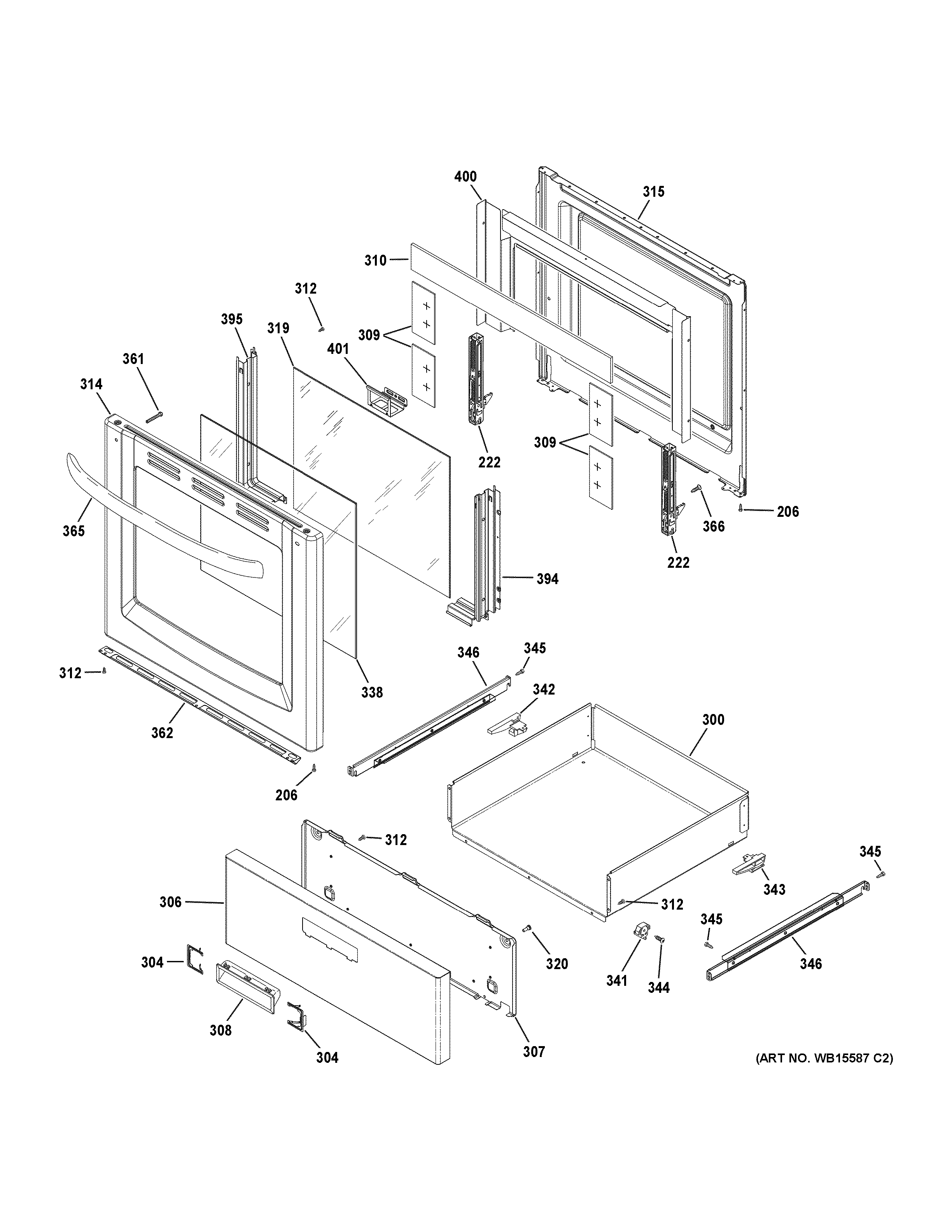

RAS300DM1WW DOOR & DRAWER PARTS

Products

PositionProduct
206WB01X26995 GE Oven Screw 8-18 AB X 5/16
222WB10X31924 GE Door Hinge
300WB63X30936 GE Drawer Body
304WB01X26891 GE Range Broil Element Clip
306PANEL DRAWER
307LINER DRAWER
308WB15X26670 GE Broil Handle
309WB35X30903 GE Door Insulation
310WB35X32513 GE Door Insulation
312WB01K10091 GE Oven Screw
314DOOR & FOIL ASM
315WB56X31128 GE Door Liner
319WB56X31925 GE Door Glass Liner
320WB2K15 GE Oven Grate Bumper
338WB56X31140 GE Glass Door Assembly
341WB02K10186 GE Range Drawer Support
342WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB01X30915 GE Screw
345WB1K5062 GE Oven Screw
346WB37X30908 GE Drawer Rail and Bracket Guide
361WB01T10008 GE Oven Screw 10-32
362WB56X31921 GE Barrier Door
365WB15X31132 GE Oven Door Handle
366SCREW
394CRYSTAL BOTTOM SUPPORT
395CRYSTAL BOTTOM SUPPORT
400GUARD INSULATION
401BRACKET UPPER DOOR
