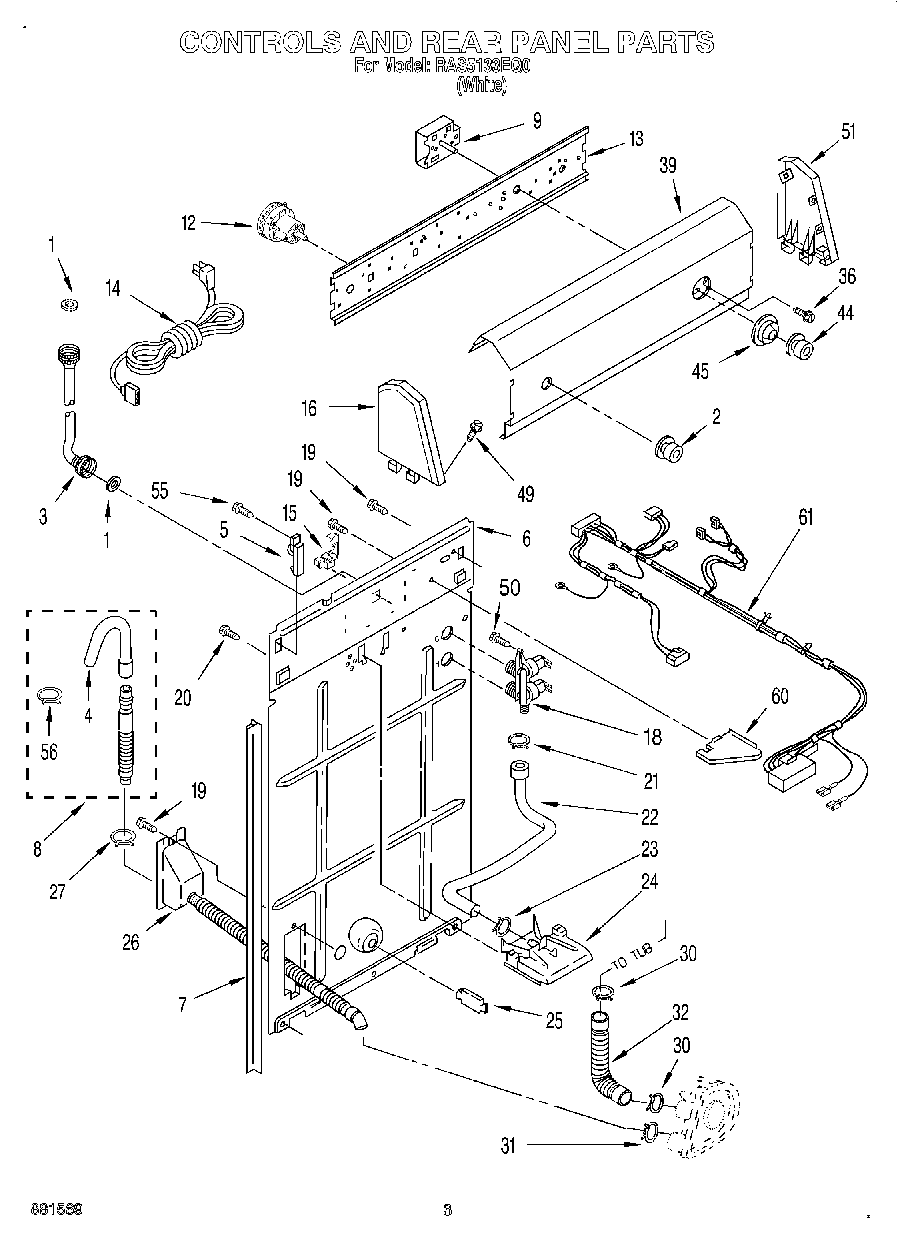

RAS5133EQ0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2Knob, Control (White)
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
9Timer, Control (60 Hz.) (Motor Not A Service Part)
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (White)
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
20WP3390631 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
36WP356418 Whirlpool Screw
39Panel, Console
44WP3362625 Whirlpool Timer Knob
45Dial, Timer
49WP90767 Whirlpool Screw
50WP9740848 Whirlpool Dishwasher Screw
51Cap, End (R.H.) (White)
55WP488729 Whirlpool Refrigerator Door Screw
56WP3357331 Whirlpool Clamp
60WPL 3348424
61Harness, Wiring (For Detail See Parts Page) Also See Clips.
