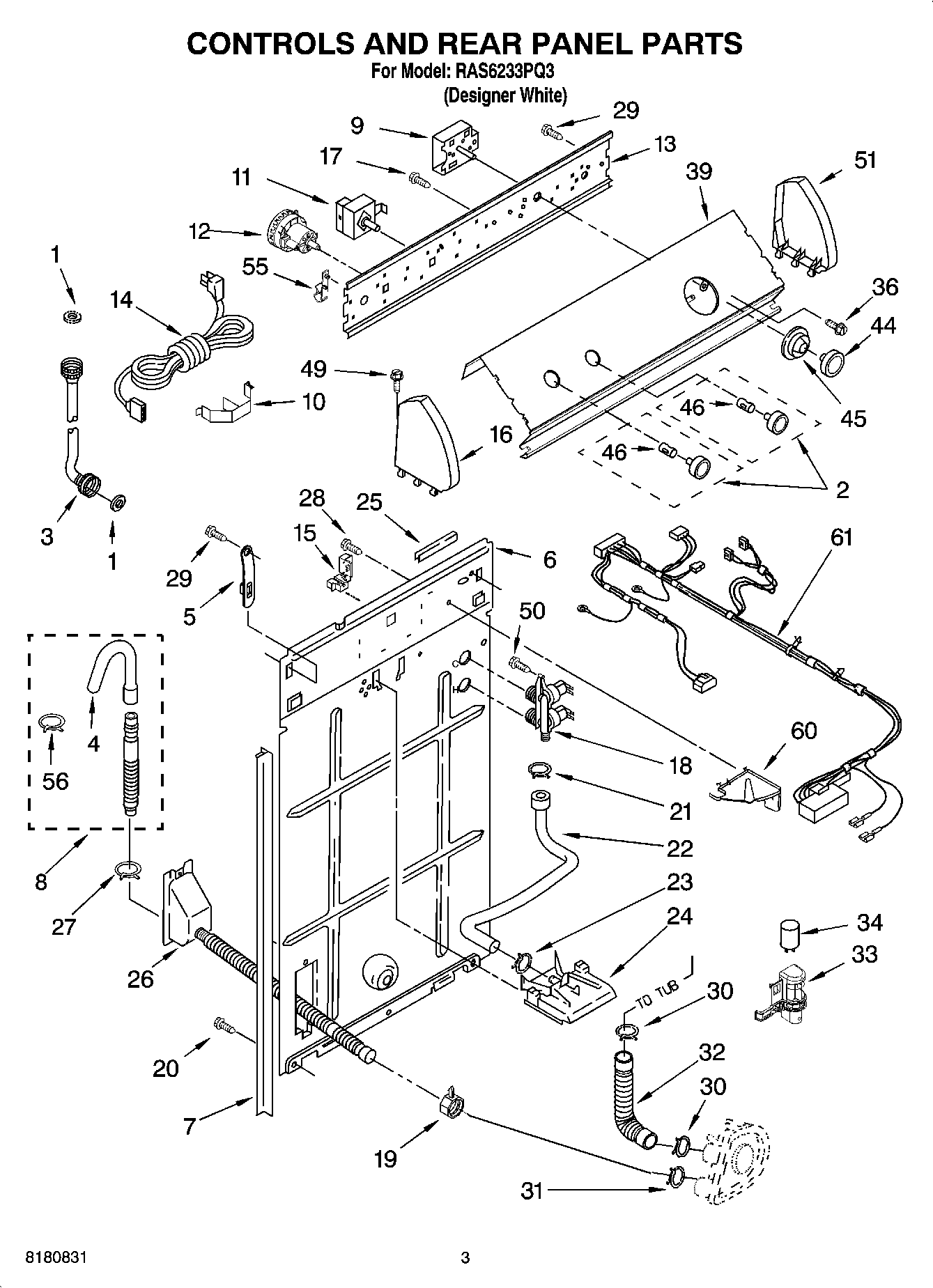

RAS6233PQ3 02 – CONTROLS AND REAR PANEL PARTS

RAS6233PQ3 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

RAS6233PQ3 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2Knob, Control
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
9WP8541939 Whirlpool Timer Assembly
10Clip, Harness & Pressure Hose
11WPW10168256 Whirlpool Temperature Switch
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
173400073 Whirlpool Screw
18285805 Whirlpool Washer Water Inlet Valve
19Clamp, Hose
20WP3390631 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28WP3351614 Whirlpool Screw
29WP90767 Whirlpool Screw
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Capacitor
34CAPACITOR
36WP3400818 Whirlpool Screw
39Panel, Console
44W10807860 Whirlpool White Control Knob
45Dial, Timer
46WP8536939 Whirlpool Spring Clip
49WP388326 Whirlpool Screw
50WP9740848 Whirlpool Dishwasher Screw
51279960 Whirlpool Endcap Assembly
55Retainer, Harness
56WP3357331 Whirlpool Clamp
60WPL 8539874
61Harness, Wiring (For Detail See Pages
61Miscellaneous Parts Bag
61WPL ARI159666A
