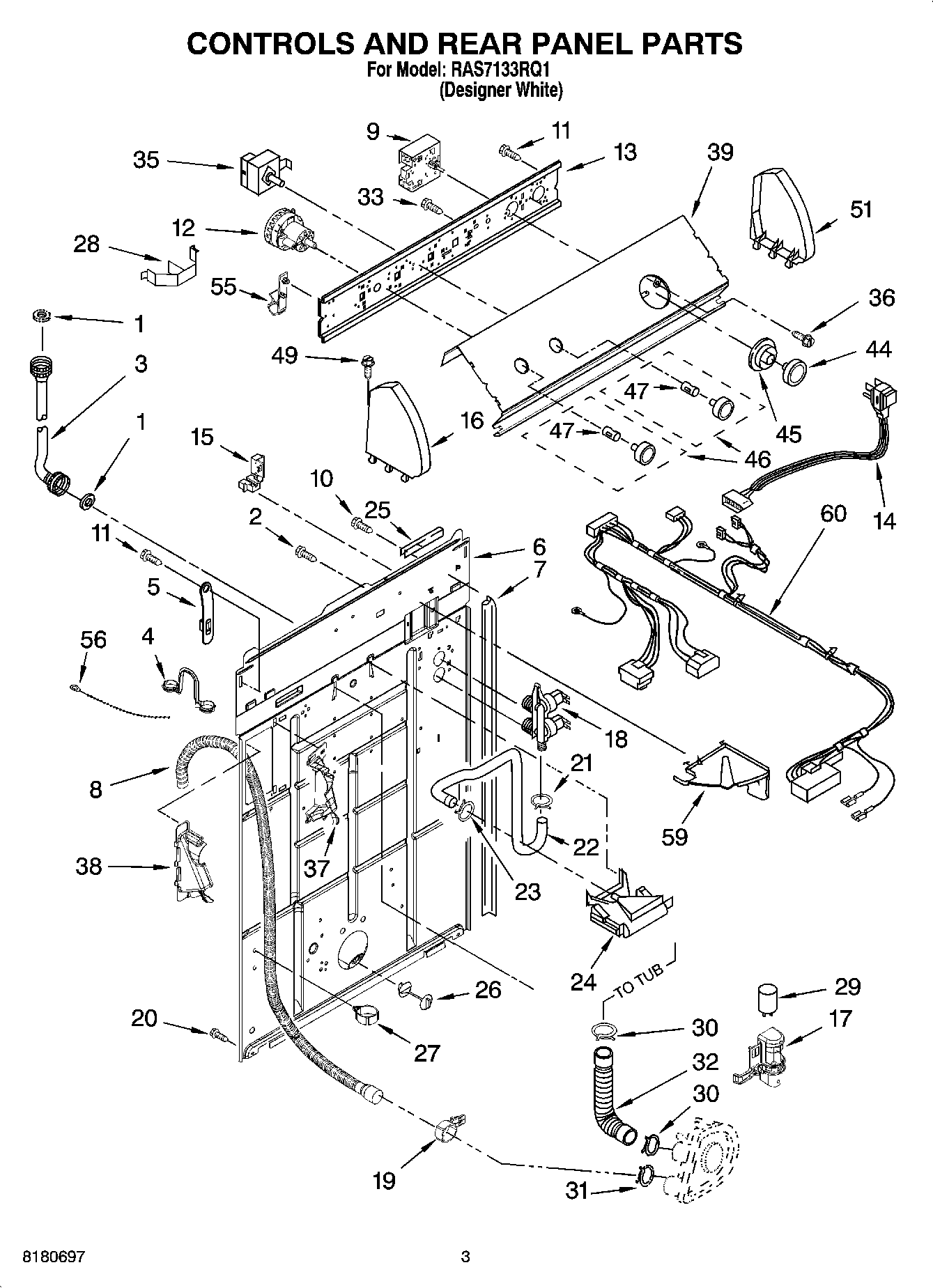

RAS7133RQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
17	Clip, Capacitor
18	285805 Whirlpool Washer Water Inlet Valve
19	8541668 Whirlpool Washer Clamp
20	WP3390631 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	Clip, Harness & Pressure Hose
29	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	3400073 Whirlpool Screw
35	WPW10168256 Whirlpool Temperature Switch
36	WP3400064 Whirlpool Screw
38	WPW10096921 Whirlpool Hose
39	Panel, Console
44	W10807860 Whirlpool White Control Knob
45	Dial, Timer
46	WP8557460 Whirlpool Knob
47	WP8536939 Whirlpool Spring Clip
49	WP388326 Whirlpool Screw
51	279960 Whirlpool Endcap Assembly
55	Retainer, Harness
56	WPW10339879 Whirlpool Wire Tie
59	WPL 8539874
60	Harness, Wiring (For Detai
