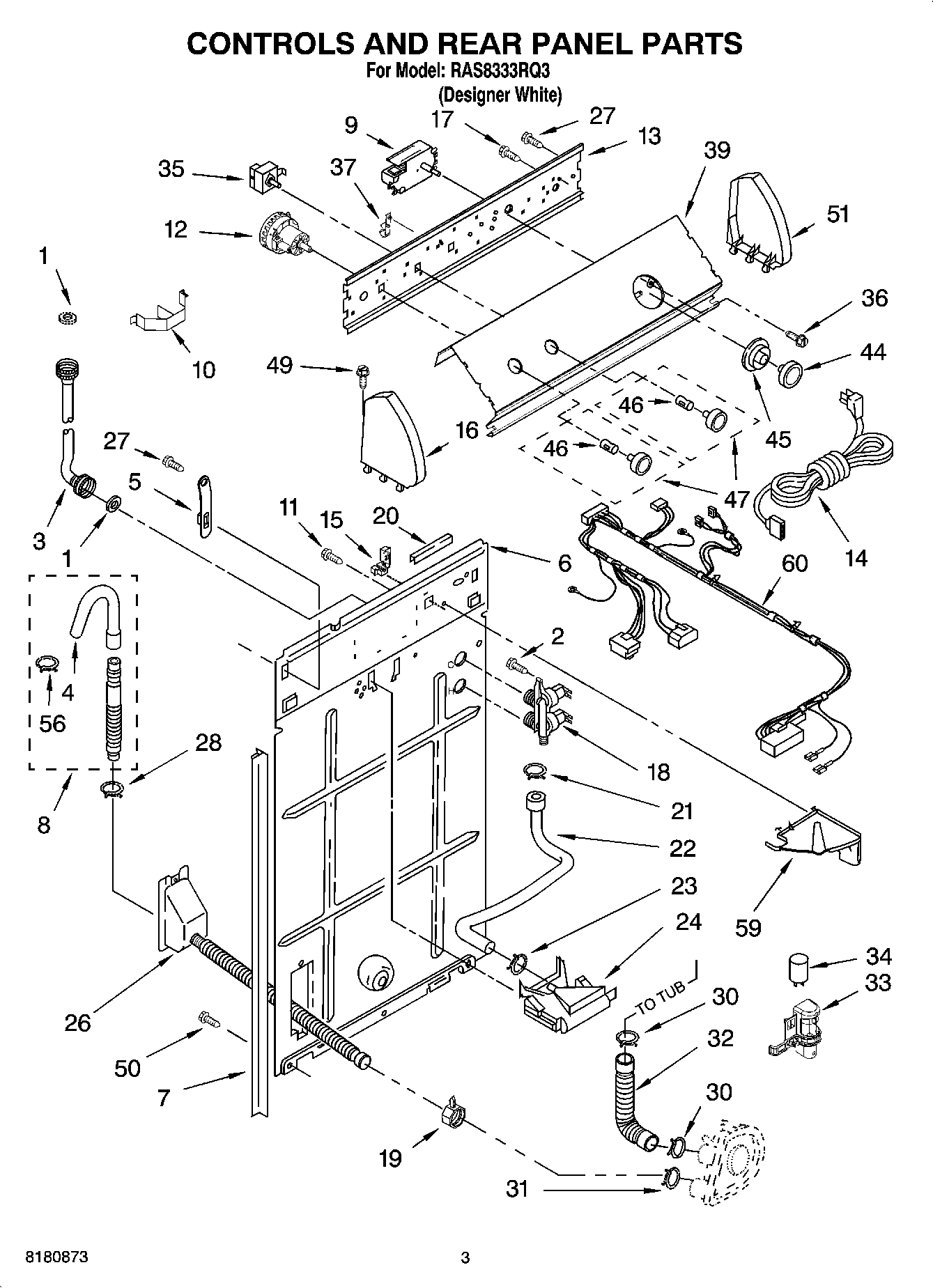

RAS8333RQ3 02 – CONTROLS AND REAR PANEL PARTS

RAS8333RQ3 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

RAS8333RQ3 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
9WP8546685 Whirlpool Timer
10Clip, Harness & Pressure Hose
11WP3351614 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
173400073 Whirlpool Screw
18285805 Whirlpool Washer Water Inlet Valve
19Clamp, Hose
20Edge Protector
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
26WPW10358149 Whirlpool Hose
27WP90767 Whirlpool Screw
28WP356138 Whirlpool Hose Clamp
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Capacitor
34CAPACITOR
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37Retainer, Harness
39Panel, Console
44W10807860 Whirlpool White Control Knob
45Dial, Timer
46WP8536939 Whirlpool Spring Clip
47WP8557460 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51279960 Whirlpool Endcap Assembly
56WP3357331 Whirlpool Clamp
59WPL 8539874
60Wiring Harness (For Detail See
60Miscellaneous Parts Bag
60WPL ARI159767A
