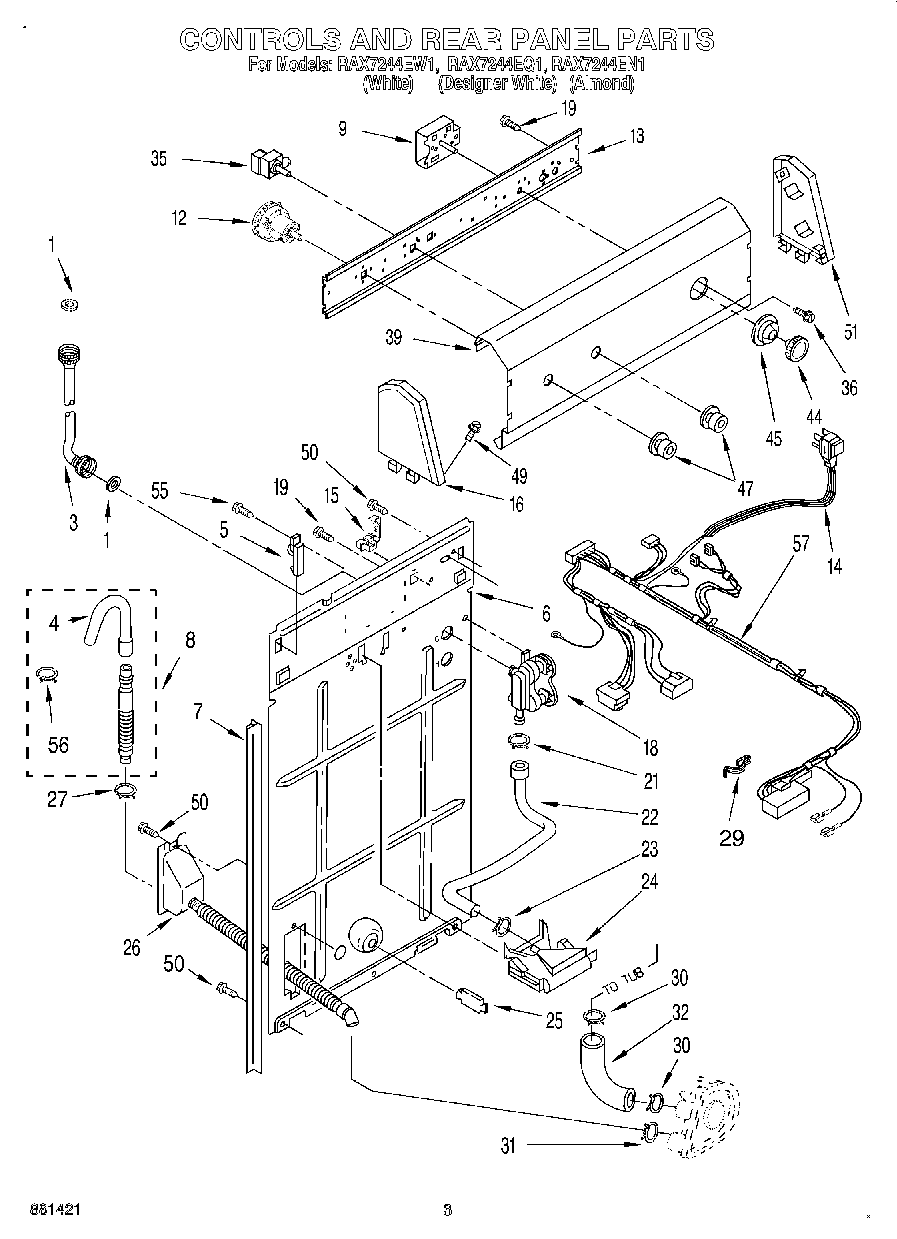

RAX7244EQ1 02 – CONTROLS & REAR PANEL

RAX7244EQ1 02 – CONTROLS & REAR PANEL

Written by

in

RAX7244EQ1 02 – CONTROLS & REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
9WP3948357 Whirlpool Timer Assembly
12W10337780 Whirlpool Pressure Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Power Cord Only, Without Harness)
15Strain Relief, Power Cord
16Cap, End (L.H.) (White)
16Cap, End (L.H.) (Black)
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
298528351 Whirlpool Clip
30WP371502 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
35Switch, Water Temperature
36WP356418 Whirlpool Screw
39Panel, Console (For Designer White Model)
39Panel, Console (For White And Almond Models)
44WP3362625 Whirlpool Timer Knob
45Dial, Timer
45Dial, Timer
47Knob, Control (White)
47Knob, Control (Black)
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (R.H.) (White)
51Cap, End (R.H.) (Black)
55WP308685 Whirlpool Microwave Screw
56WP3357331 Whirlpool Clamp
57Harness, Wiring (Includes Power Cord.) Also See Clips
