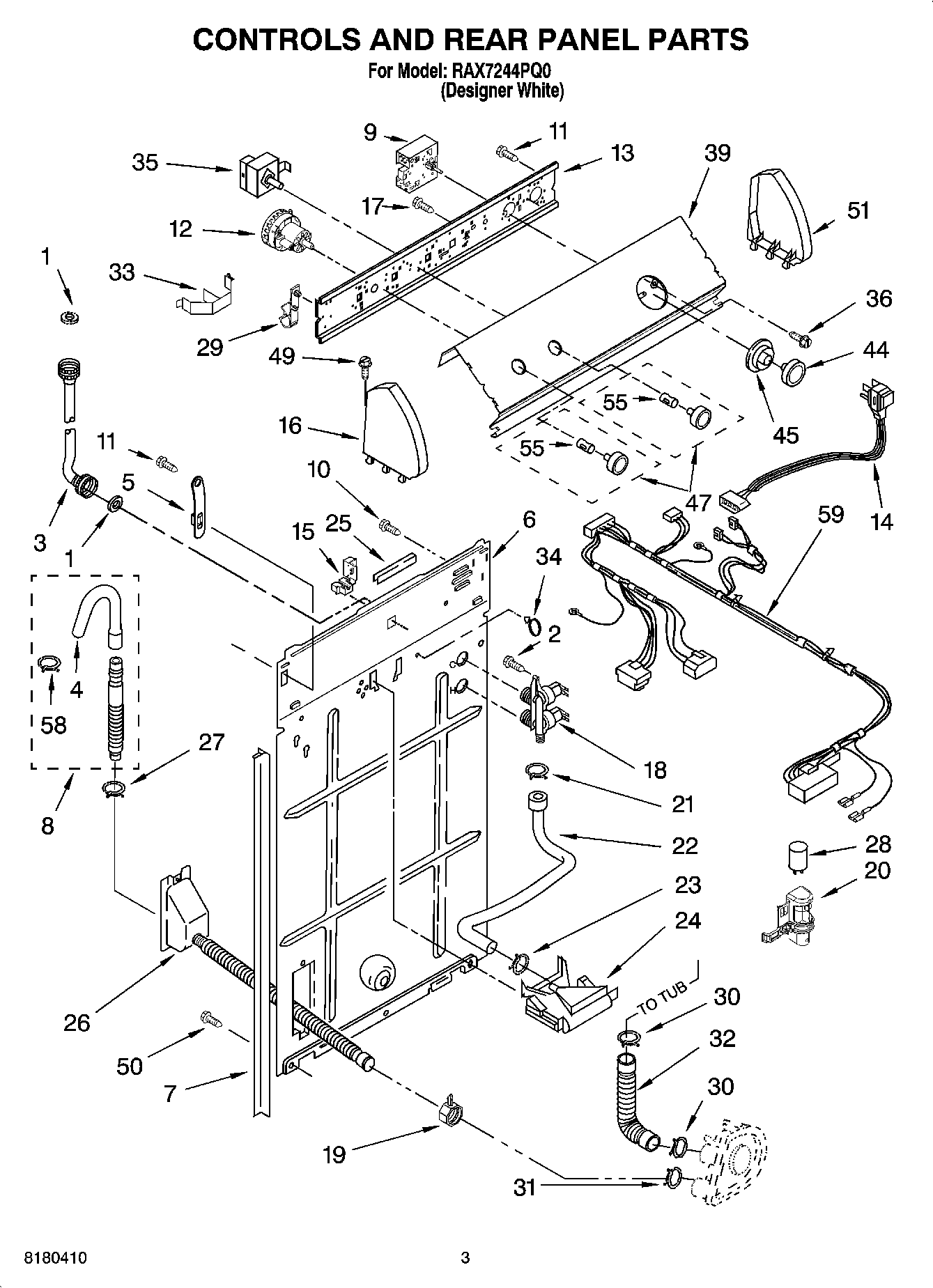

RAX7244PQ0 02 – CONTROL AND REAR PANEL PARTS
Products
| Position | Product |
|---|
| 1 | WP16123 Whirlpool Washer |
| 2 | WP9740848 Whirlpool Dishwasher Screw |
| 3 | WP89503 Whirlpool Washer Fill Hose |
| 4 | WP3357027 Whirlpool Nozzle Assembly |
| 5 | WP8568314 Whirlpool Strap |
| 6 | WP3357978 Whirlpool Rear Panel |
| 7 | WP62747 Whirlpool Pad |
| 8 | 285702 Whirlpool Extensions |
| 8 | 285666 Whirlpool Drain Hose 10' |
| 8 | 285664 Whirlpool Drain Hose |
| 9 | WP8541939 Whirlpool Timer Assembly |
| 10 | WP3351614 Whirlpool Screw |
| 11 | WP90767 Whirlpool Screw |
| 12 | W10337780 Whirlpool Pressure Switch |
| 13 | WP3948608 Whirlpool Bracket |
| 14 | Cord, Power (Includes Illus. 15) |
| 15 | Strain Relief, Power Cord |
| 17 | 3400073 Whirlpool Screw |
| 18 | 285805 Whirlpool Washer Water Inlet Valve |
| 19 | Clamp, Hose |
| 20 | Clip, Capacitor |
| 21 | WP596669 Whirlpool Hose Clamp |
| 22 | HOSE |
| 24 | WP3347034 Whirlpool Vacuum Break |
| 25 | Edge Protector |
| 26 | WPW10358149 Whirlpool Hose |
| 27 | WP356138 Whirlpool Hose Clamp |
| 28 | CAPACITOR |
| 29 | Retainer, Harness |
| 30 | WP616099 Whirlpool Clamp |
| 31 | WP285655 Whirlpool Hose Clamp |
| 32 | 285871 Whirlpool Hose and Clamp |
| 33 | Clip, Harness & Pressure Hose |
| 34 | 8559320 Whirlpool Clip |
| 35 | Switch, Water Temperature |
| 36 | WP3400818 Whirlpool Screw |
| 39 | Panel, Console |
| 44 | W10807860 Whirlpool White Control Knob |
| 45 | Dial, Timer |
| 47 | Knob, Control |
| 49 | WP388326 Whirlpool Screw |
| 50 | WP3390631 Whirlpool Screw |
| 51 | 279960 Whirlpool Endcap Assembly |
| 55 | WP8536939 Whirlpool Spring Clip |
| 58 | WP3357331 Whirlpool Clamp |
| 59 | Harness, Wiring (For Detail See Pages |
