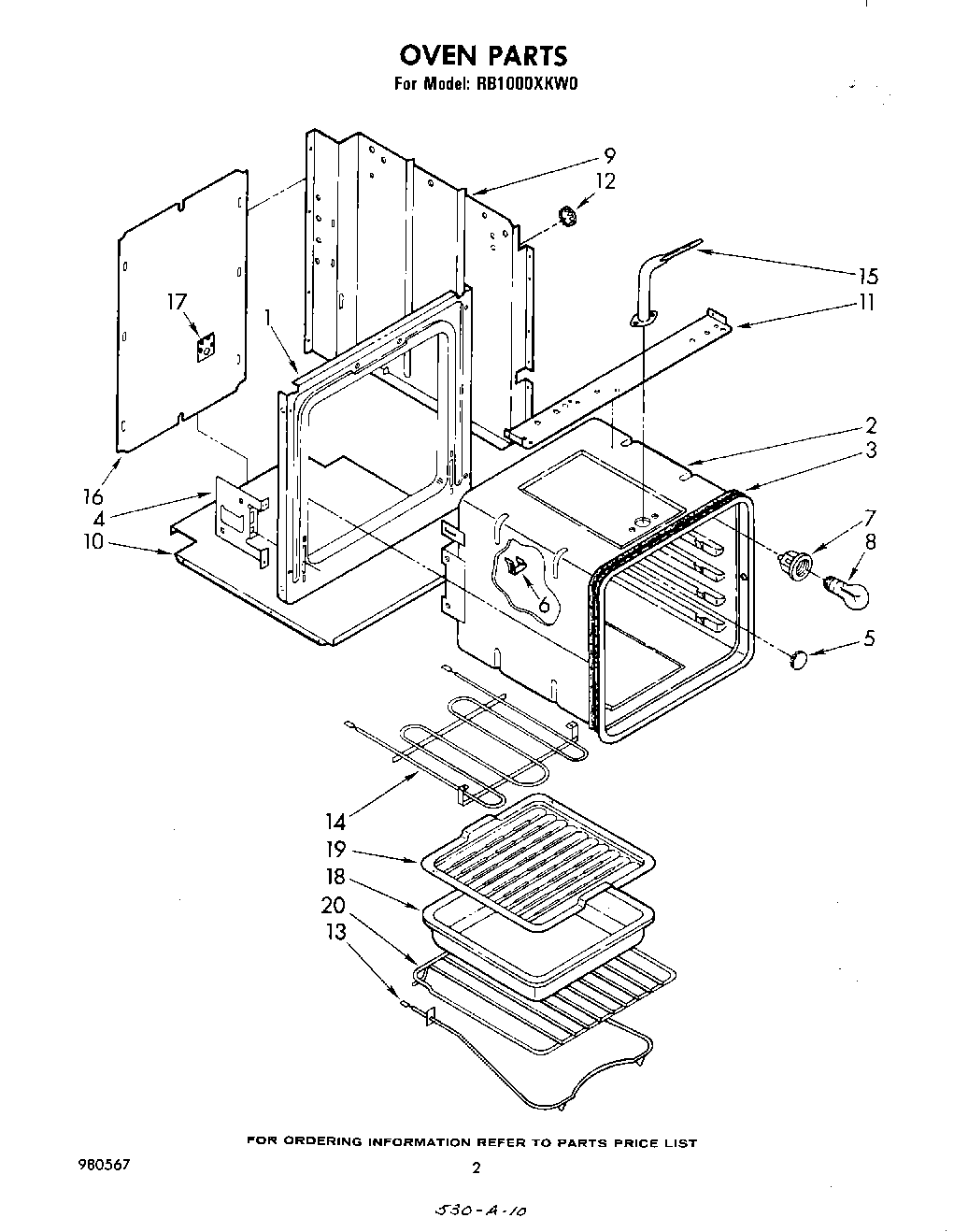

RB1000XKW0 02 – SECTION

Products

Position	Product
1	Black 2142B
2	Oven (24“ Standard)
2	Screw (3)
3	Seal, Oven
4	Main Chassis (Screw, 10-32 x 1/2)
5	Plug Button
6	98005642 Whirlpool Clip
7	Socket, Oven Light (Alt.)
7	Socket, Oven Light (Alt.)
7	Screw (10-12 x .875)
8	RANGE ONLY 40W 120V APPL BULB
9	Side Wrapper (2)
9	SCREW
9	WP488627 Whirlpool Refrigerator Screw
10	Cover (Bottom)
11	Baffle, Top Insulation
12	Plug Button (2)
13	326791 Whirlpool Range Oven Bake Element
14	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
14	Screw, 10-32 x 5/8 (4)
15	Vent, Oven
15	WP308685 Whirlpool Microwave Screw
15	WP965173 Whirlpool Dishwasher Screw
16	Cover, Rear
17	Plate, Service
18	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Oven (2)
