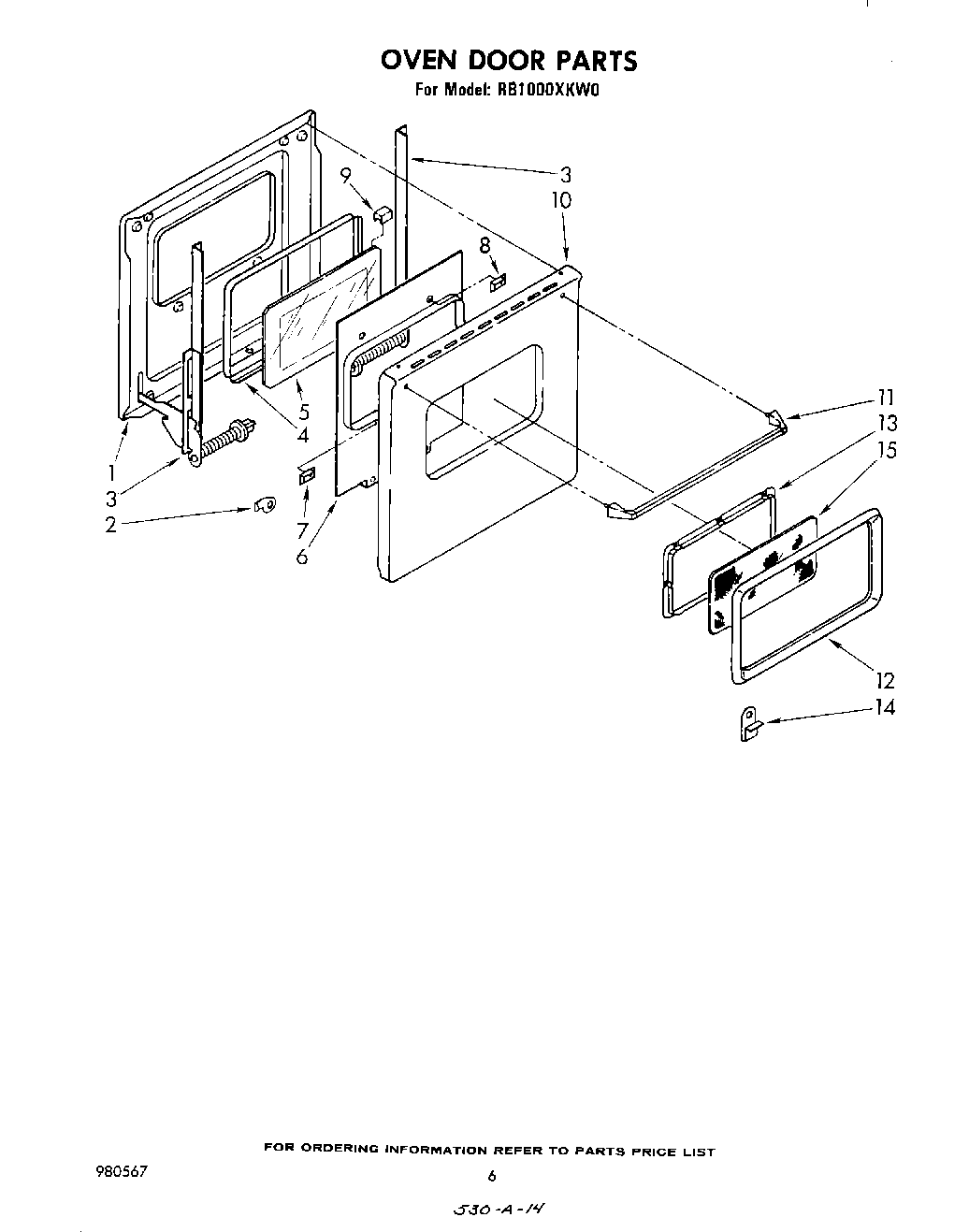

RB1000XKW0 04 – SECTION

Products

Position	Product
1	Washer, Fiber
1	WP965173 Whirlpool Dishwasher Screw
1	Liner, Door 24“
1	Screw (3)
1	panel, top (screw, 10a x 3/8 (3))
2	Door Stop Replacement Kit
3	Bar, Torsion (Pushnut (2))
3	Bar, Torsion (R.H.)
3	Bar, Torsion (L.H.)
3	SCREW
4	Seal, Window
5	Glass, Inner
6	Baffle, Insulation
7	Screw, 10A x 1/2 (2) (Black)
8	WP308685 Whirlpool Microwave Screw
8	spacer, insulation baffle (4)
9	channel, rubber (4)
10	Panel, Oven Door (Toast)
10	Panel, Oven Door (New Avocado)
10	Panel, Oven Door (White)
10	Panel, Oven Door (Almond)
10	Panel, Oven Door (Harvest Gold)
10	Panel, Oven Door (Coffee)
10	Panel, Oven Door (Platinum)
11	Nut, Snap-In (2)
11	WP308499 Whirlpool Nut
11	Handle, Oven Door
12	Frame, Window
13	Retainer, Glass
14	Clip, Frame
15	Screw
15	Glass, Outer
15	Hinge-Lt. or Rt.
