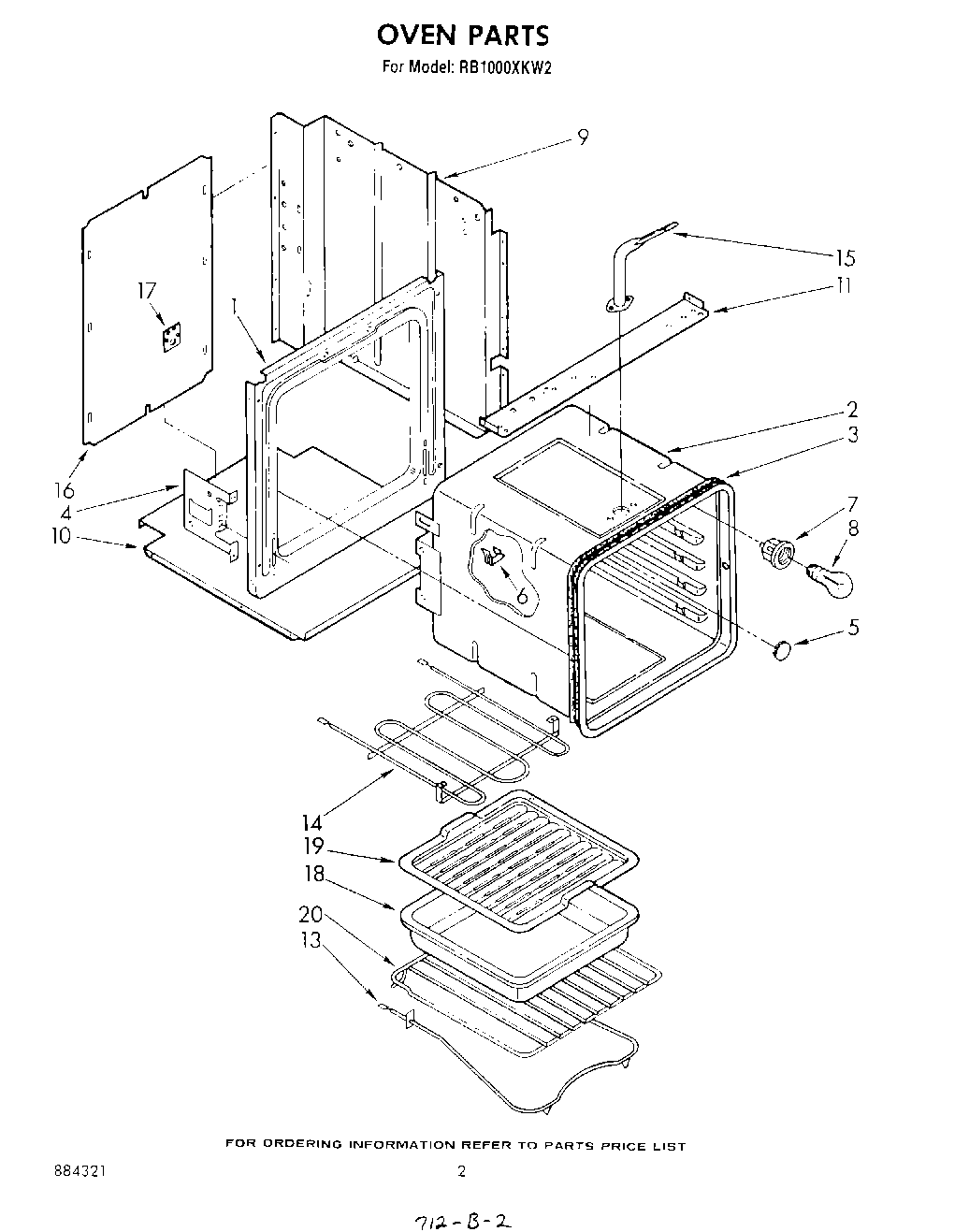

| Screw (10-12 x .875) |
| Screw, 10-32 x 5/8 (4) |
| 1 | Black 2142B |
| 2 | Oven (24`` Standard) |
| 2 | Screw (3) |
| 3 | Clip, Retainer (2) |
| 3 | Seal, Oven |
| 4 | Screw, 10-32 x 1/2 |
| 4 | Plate, Hinge (2) |
| 5 | Plug Button |
| 6 | 98005642 Whirlpool Clip |
| 7 | Socket, Oven Light |
| 7 | Socket, Oven Light (Alt.) |
| 7 | Socket, Oven Light (Alt.) |
| 8 | RANGE ONLY 40W 120V APPL BULB |
| 9 | Side Wrapper (2) |
| 10 | Cover (Top) |
| 10 | Cover (Bottom) |
| 11 | Baffle, Top Insulation |
| 13 | 326791 Whirlpool Range Oven Bake Element |
| 14 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 15 | WP308685 Whirlpool Microwave Screw |
| 15 | Vent, Oven |
| 15 | WP965173 Whirlpool Dishwasher Screw |
| 16 | SCREW |
| 16 | Cover, Rear |
| 17 | Plate, Service |
| 18 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 20 | Rack, Oven (2) |
