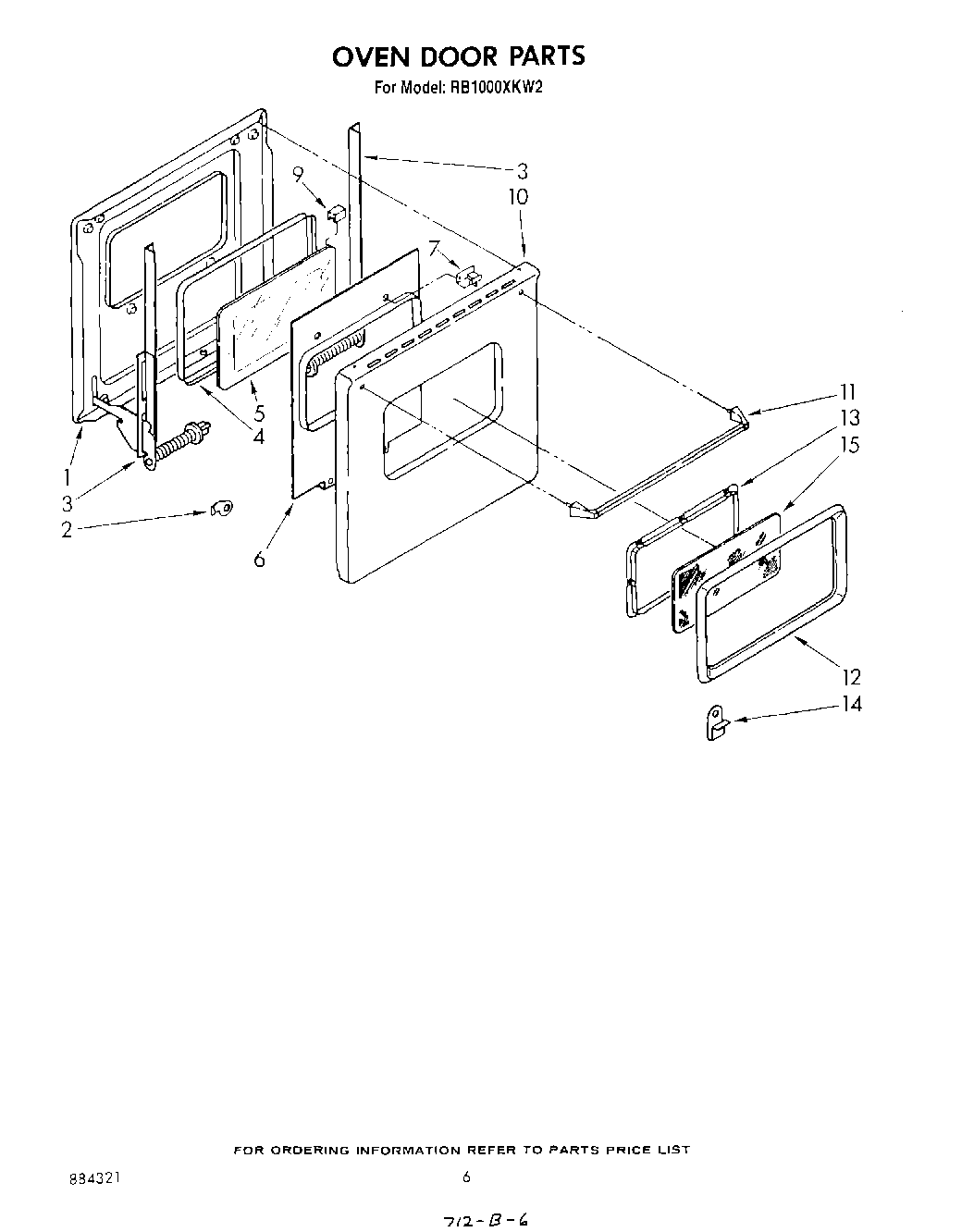

RB1000XKW2 04 – OVEN DOORadmin2025-04-26T11:32:50+00:00RB1000XKW2 04 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Washer, Fiber |
| 1 | WP965173 Whirlpool Dishwasher Screw |
| 1 | Liner, Door 24`` |
| 1 | Screw (3) |
| 1 | panel, top (screw, 10a x 3/8 (3)) |
| 2 | Stop, Door (Right Hand) |
| 2 | Stop, Door (L.H.) |
| 3 | Bar, Torsion (Pushnut (2)) |
| 3 | Bar, Torsion (R.H.) |
| 3 | Bar, Torsion (L.H.) |
| 3 | SCREW |
| 4 | Seal, Window |
| 5 | Glass, Inner |
| 6 | Baffle, Insulation |
| 7 | Spacer (4) |
| 7 | Screw, 10A x 1/2 (2) (Black) |
| 9 | Channel, Rubber (4) |
| 10 | Panel, Oven Door (Almond) |
| 10 | Panel, Oven Door (White) |
| 11 | Handle, Oven Door |
| 11 | WP308499 Whirlpool Nut |
| 11 | Nut, Snap-In (2) |
| 12 | Frame, Window |
| 13 | Retainer, Glass |
| 14 | Clip, Frame |
| 15 | Hinge-Lt. or Rt. |
| 15 | Screw |
| 15 | Glass, Outer |
