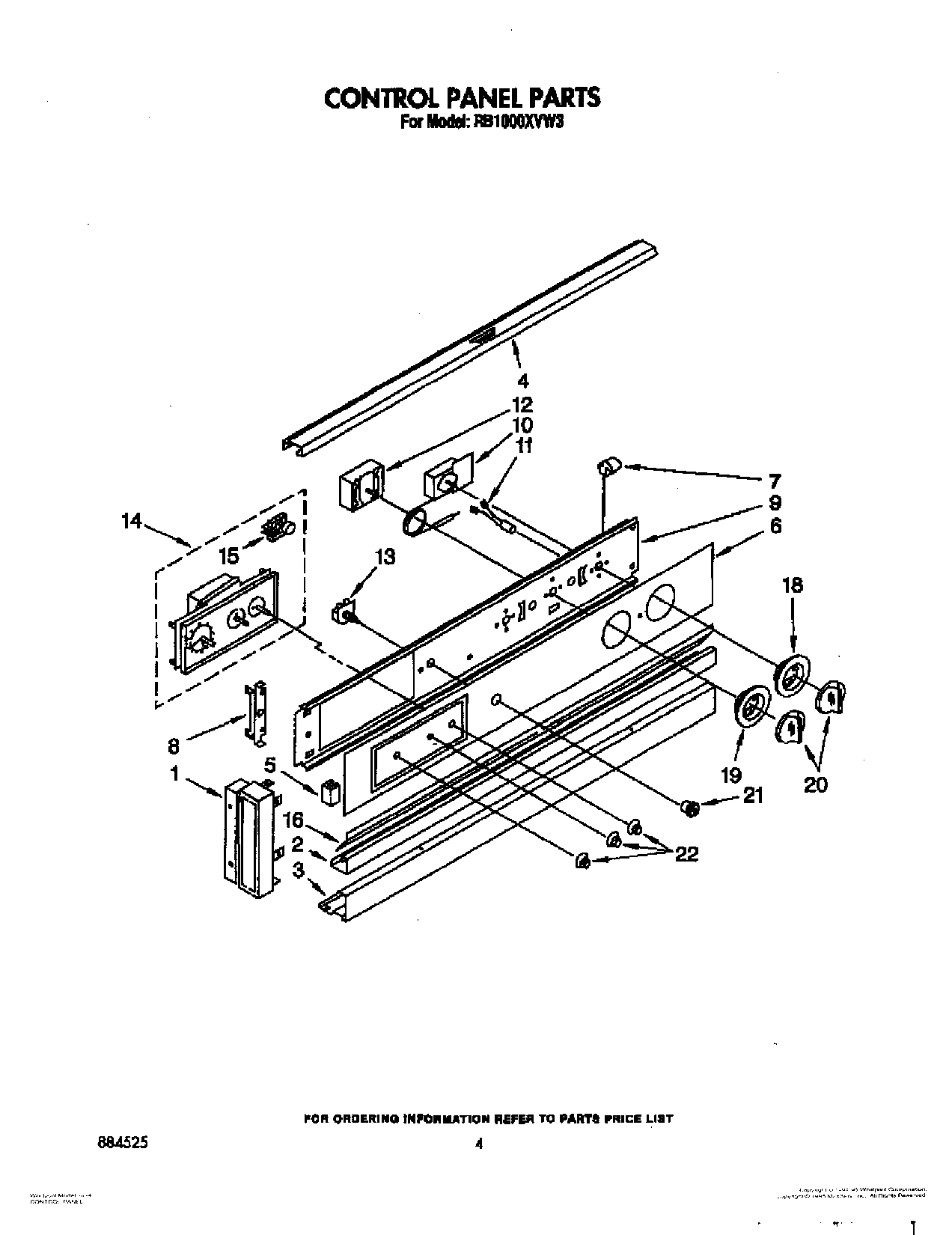

RB1000XVW3 03 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT313358
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Touch-Up Oven (1 Oz.)
	Paint, Spray 13 Oz. (Avocado)
	paint, spray 13 oz. (coffee)
	Paint, Touch-Up 1/2 Oz. (Coffee)
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	285006 Whirlpool Spray
	Wire (14 Ga. 150 c Orange)
	Wire (12 Ga. 150 c Black)
	screw, 6-32 x 1/4 (2)
	WPL LIT884525
	Grease
	Leveler (Thinner) (2oz.)
	Enamel, New Avocado (1 Qt. Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	WPL LIT311435
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Toast
	Golden Harvest (Uncut)
	350956 Whirlpool Spray Assembly
	Golden Harvest
	72017 Whirlpool Appliance Touch-Up Paint White
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Wire, 25` Roll (Black 14 Ga.)
	WPL LIT3148574
	FOIL, ALUMINUM OVEN (18“ X 25 )
	799344 Whirlpool Refrigerator Paint
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	WPL 72112
	350930 Whirlpool White Spray Paint
1	End Cap (Right Side)
1	Washer
1	End Cap (Left Side)
2	Trim, Center
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Glass, Control Panel
7	Retainer, Glass (4)
8	panel, top (screw, 10a x 3/8 (3))
8	Bracket, Control Panel (2)
9	Control Bracket
10	Thermostat
10	Thermostat (Alt.)
10	Thermostat (Alt.)
11	Indicator Light (4)
12	Selector Switch (4 Position)
12	WP486579 Whirlpool Air Conditioner Screw
13	Switch, Oven Light
13	Lockwasher
14	Timer, Clock (Includes No.6)
15	Motor, Timer
16	WP965173 Whirlpool Dishwasher Screw
16	Rail, Top (Seal, Backguard)
18	Escutcheon, Thermostat
19	WP311069 Whirlpool Oven Dial
19	Spring (3)
19	Bezel Switch (1)
19	Screw,
19	WP3169181 Whirlpool Knob
19	WP3150371 Whirlpool Control Knob
