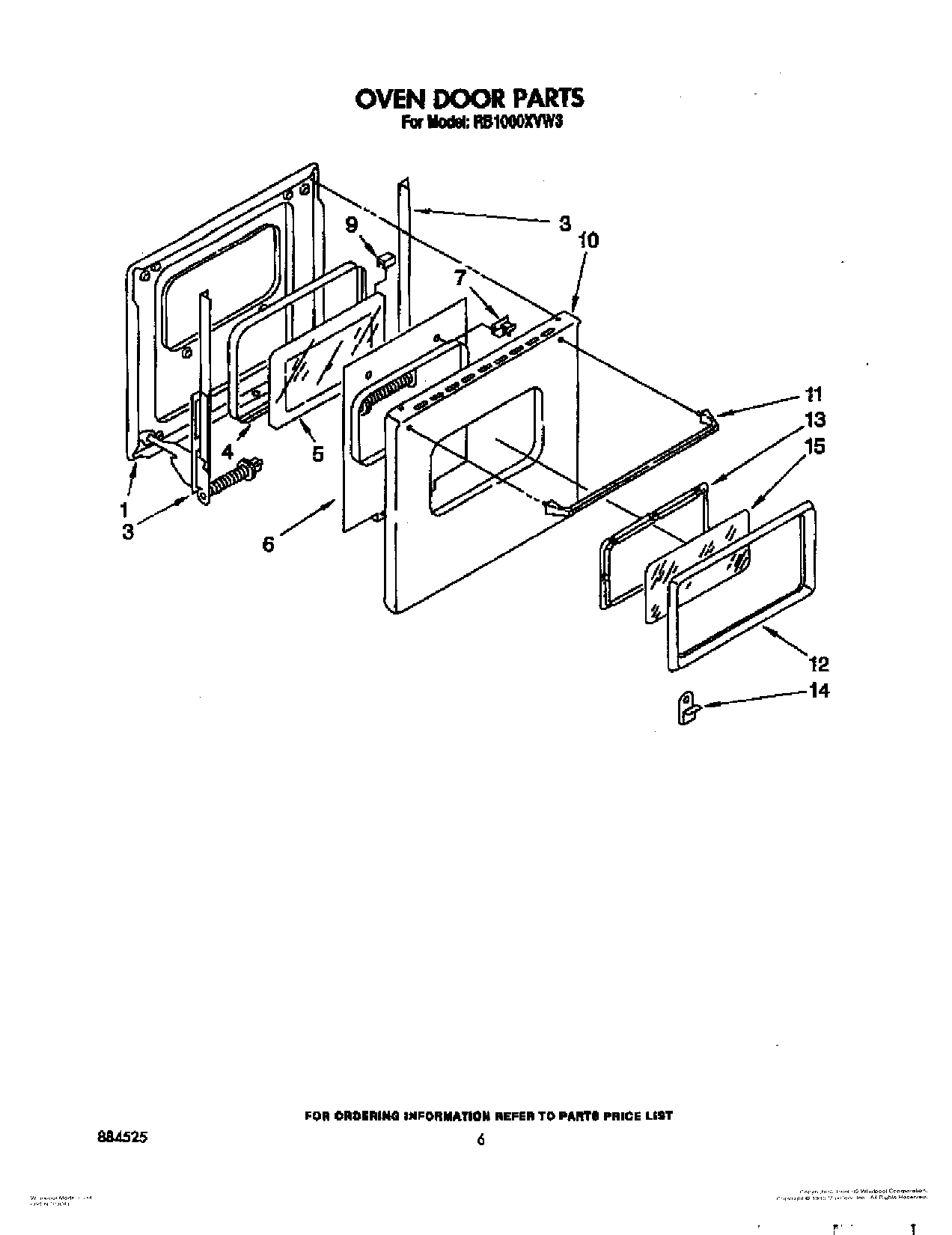

RB1000XVW3 04 – OVEN DOOR

RB1000XVW3 04 – OVEN DOOR

Written by

in

RB1000XVW3 04 – OVEN DOOR

Products

PositionProduct
1Liner, Door 24“
1Washer, Fiber
3Bar, Torsion (L.H.)
3Bar, Torsion (R.H.)
3Bar, Torsion (Pushnut (2))
3SCREW
4Seal, Window
5Glass, Inner
6Baffle, Insulation
7Spacer (4)
7Screw, 10A x 1/2 (2) (Black)
9Channel, Rubber (4)
10Panel, Oven Door (White)
10Panel, Oven Door (Almond)
11WP308499 Whirlpool Nut
11Handle, Oven Door
11Nut, Snap-In (2)
12Frame, Window
13Retainer, Glass
14Clip, Frame
15Screw
15Glass, Outer
15Hinge-Lt. or Rt.
