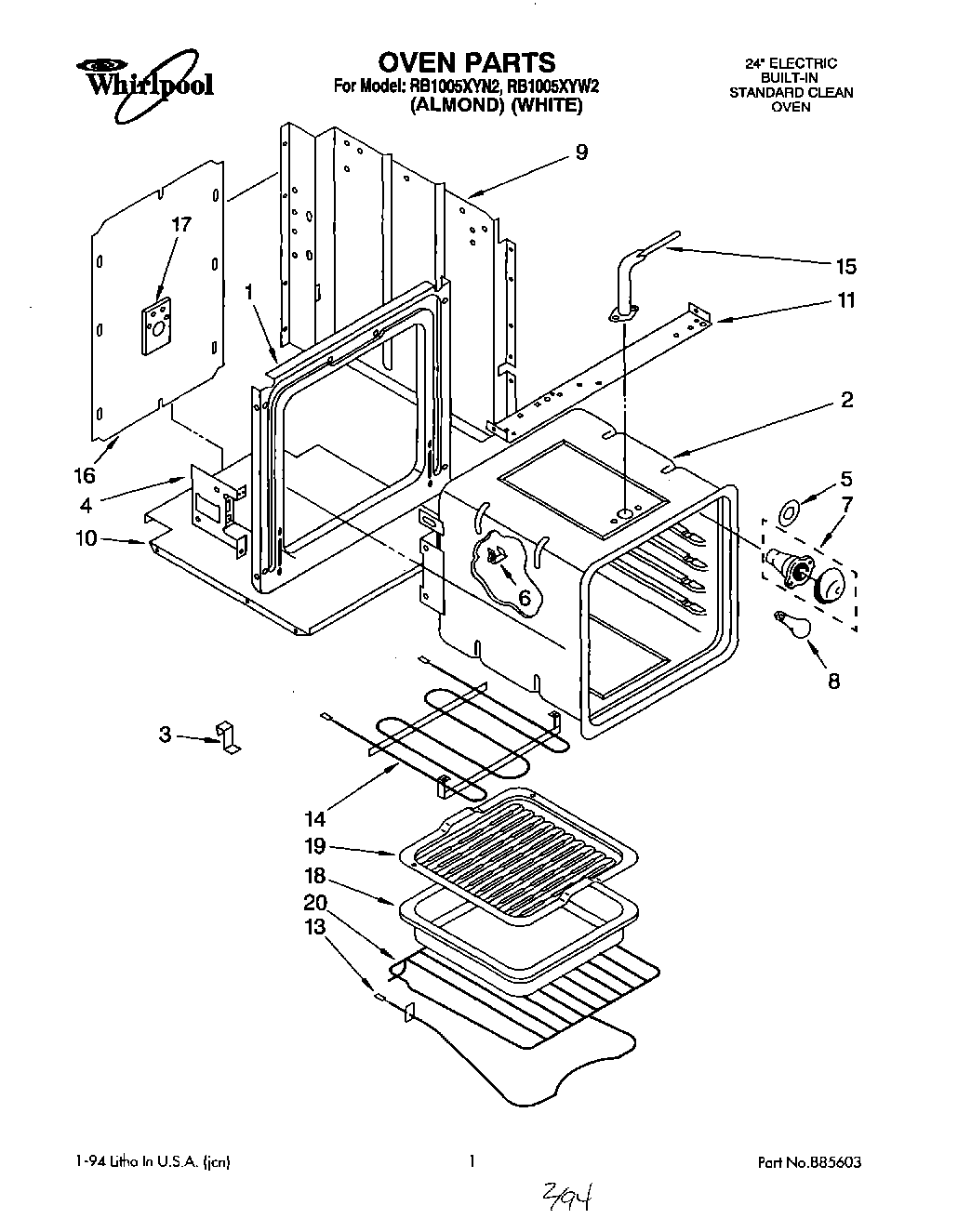

RB1005XYW2 01 – OVEN

Products

Position	Product
1	WPL 329048
2	Oven (24“ Standard)
2	Screw (3)
3	Clip, Retainer (2)
4	Plate, Hinge (2)
4	Screw, 10-32 x 1/2
5	WP3184533 Whirlpool Range Light Lens Gasket
6	98005642 Whirlpool Clip
7	W11594027 Whirlpool Range Oven Light Socket
8	RANGE ONLY 40W 120V APPL BULB
9	Side Wrapper (2)
10	Cover (Bottom)
11	Baffle, Top Insulation
13	326791 Whirlpool Range Oven Bake Element
14	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
14	Screw (2)
15	WP965173 Whirlpool Dishwasher Screw
15	Vent, Oven
16	Cover, Rear
16	WP308685 Whirlpool Microwave Screw
17	Plate, Service
18	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Oven (2)
20	Insulation, Wrap
20	Insulation, Top
20	Screw, 10A x 2
