RB1005XYW3 01 – OVEN

RB1005XYW3 01 – OVEN

Written by

in

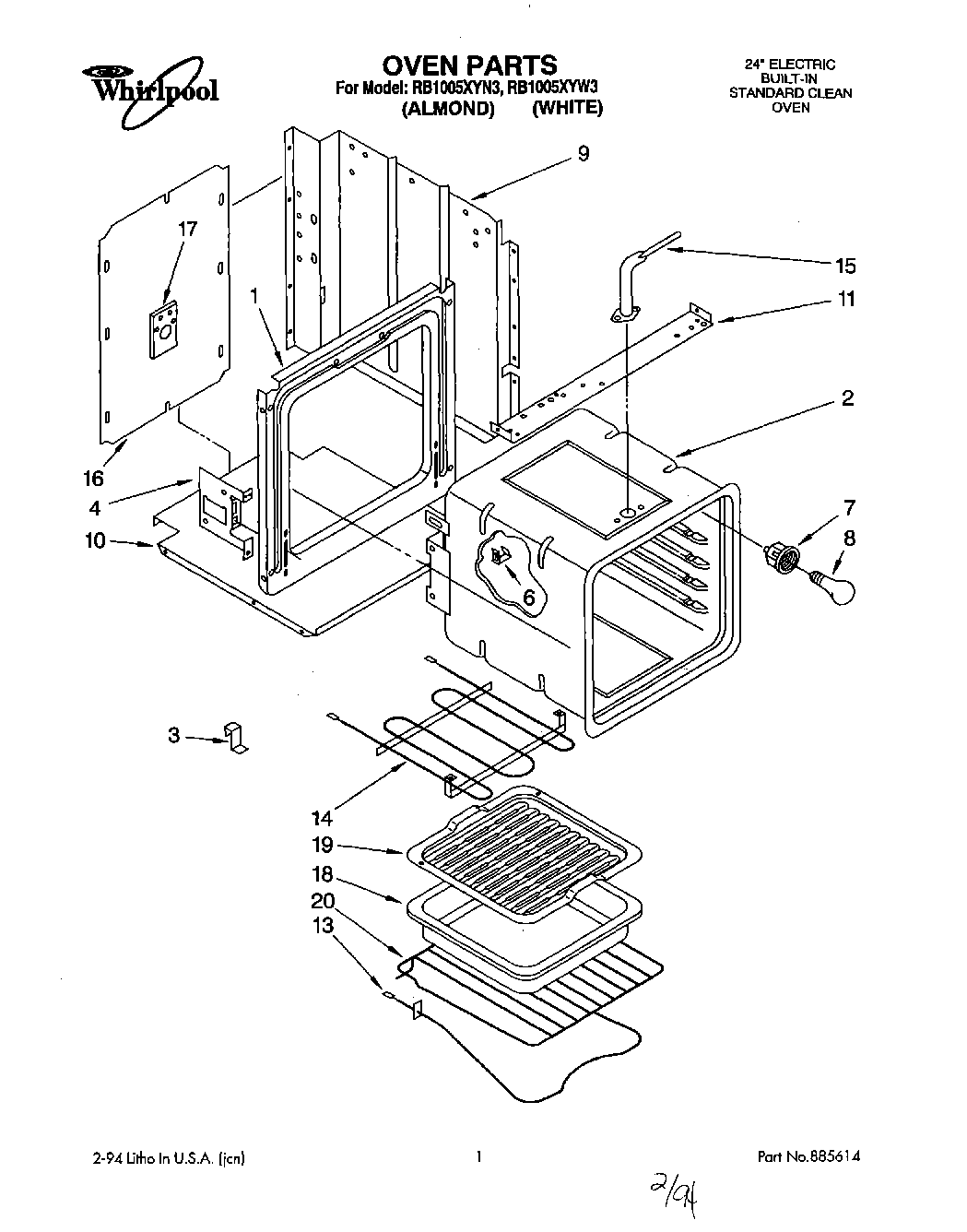

RB1005XYW3 01 – OVEN

Products

PositionProduct
1Frame, Front
2Oven (24“ Standard)
2Screw (3)
3Clip, Retainer (2)
4Screw, 10-32 x 1/2
4Plate, Hinge (2)
698005642 Whirlpool Clip
7Screw (10-12 x .875)
7Socket, Oven Light
8RANGE ONLY 40W 120V APPL BULB
9Side Wrapper (2)
10Cover (Bottom)
11Baffle, Top Insulation
13326791 Whirlpool Range Oven Bake Element
14WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
14Screw (2)
15WP965173 Whirlpool Dishwasher Screw
15Vent, Oven
16WP308685 Whirlpool Microwave Screw
16Cover, Rear
17Plate, Service
184396923 Whirlpool Broil Pan Set Gray Porcelain
20Rack, Oven (2)
20Insulation, Wrap
20Insulation, Top
20Screw, 10A x 2
