RB1005XYW3 02 – CONTROL PANEL, LIT/OPTIONAL

RB1005XYW3 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

RB1005XYW3 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3186641
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Touch-Up Oven (1 Oz.)
	Paint, Spray 13 Oz. (Avocado)
	paint, spray 13 oz. (coffee)
	Paint, Touch-Up 1/2 Oz. (Coffee)
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	285006 Whirlpool Spray
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	WPL LIT3183544
	WPL LIT311435
	Grease
	Leveler (Thinner) (2oz.)
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Golden Harvest (Uncut)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350956 Whirlpool Spray Assembly
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Wire, 25` Roll (Black 14 Ga.)
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	WPL 72112
	350930 Whirlpool White Spray Paint
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint

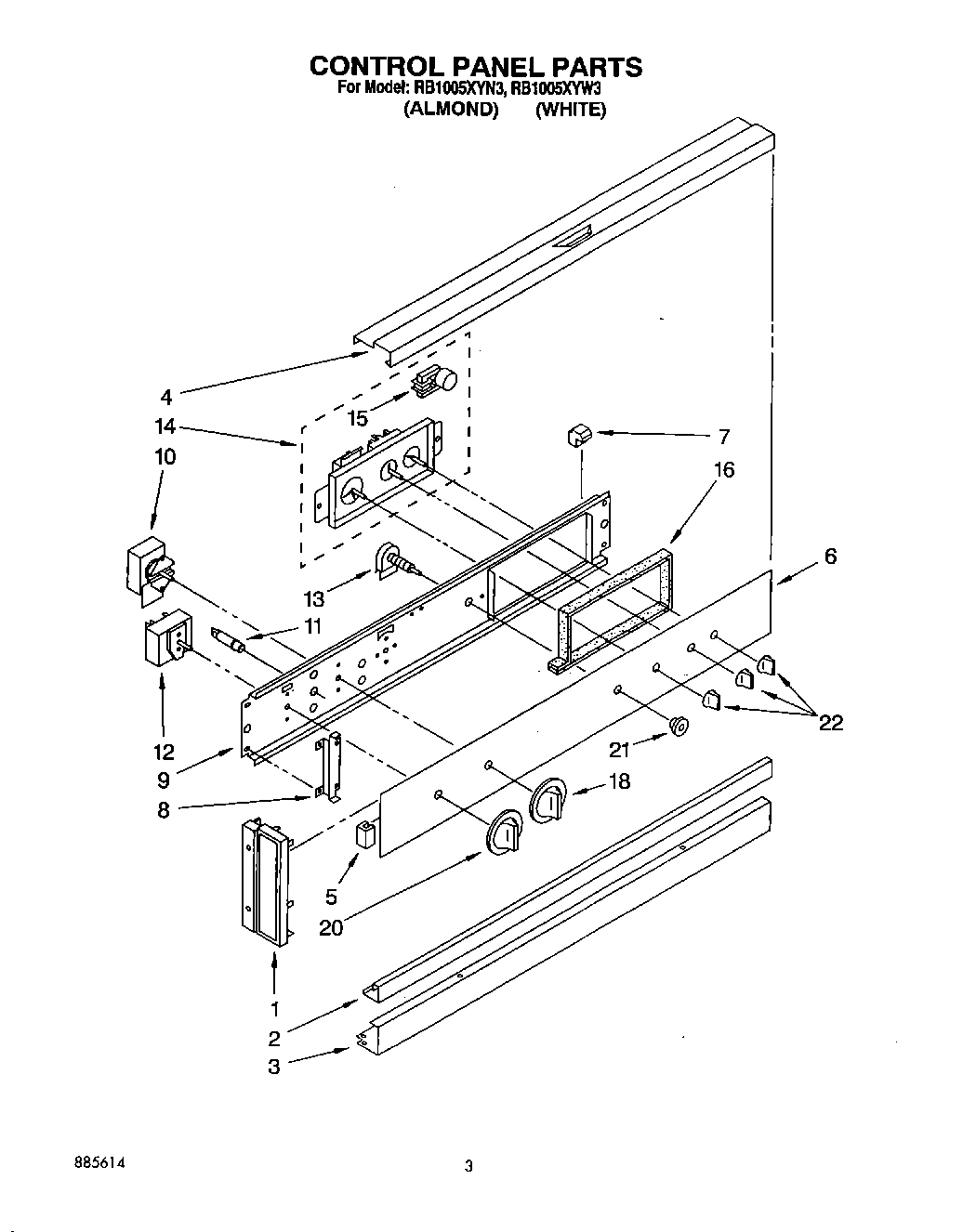

1	End Cap (Right Side)
1	Washer
1	End Cap (Left Side)
2	Trim, Center
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Glass, Control Panel
7	Retainer, Glass (4)
8	panel, top (screw, 10a x 3/8 (3))
8	Bracket, Control Panel (2)
9	Bracket, Control Panel (2)
10	Thermostat
10	screw, 6-32 x 1/4 (2)
11	Indicator Light (4)
12	Selector Switch (4 Position)
13	Switch, Oven Light
13	Lockwasher
14	Timer, Control
15	Motor, Timer
16	WP965173 Whirlpool Dishwasher Screw
16	Rail, Top (Seal, Backguard)
18	Knob, Thermostat
20	Knob, Selector
21	Bezel Switch (1)
22	WP3169181 Whirlpool Knob
