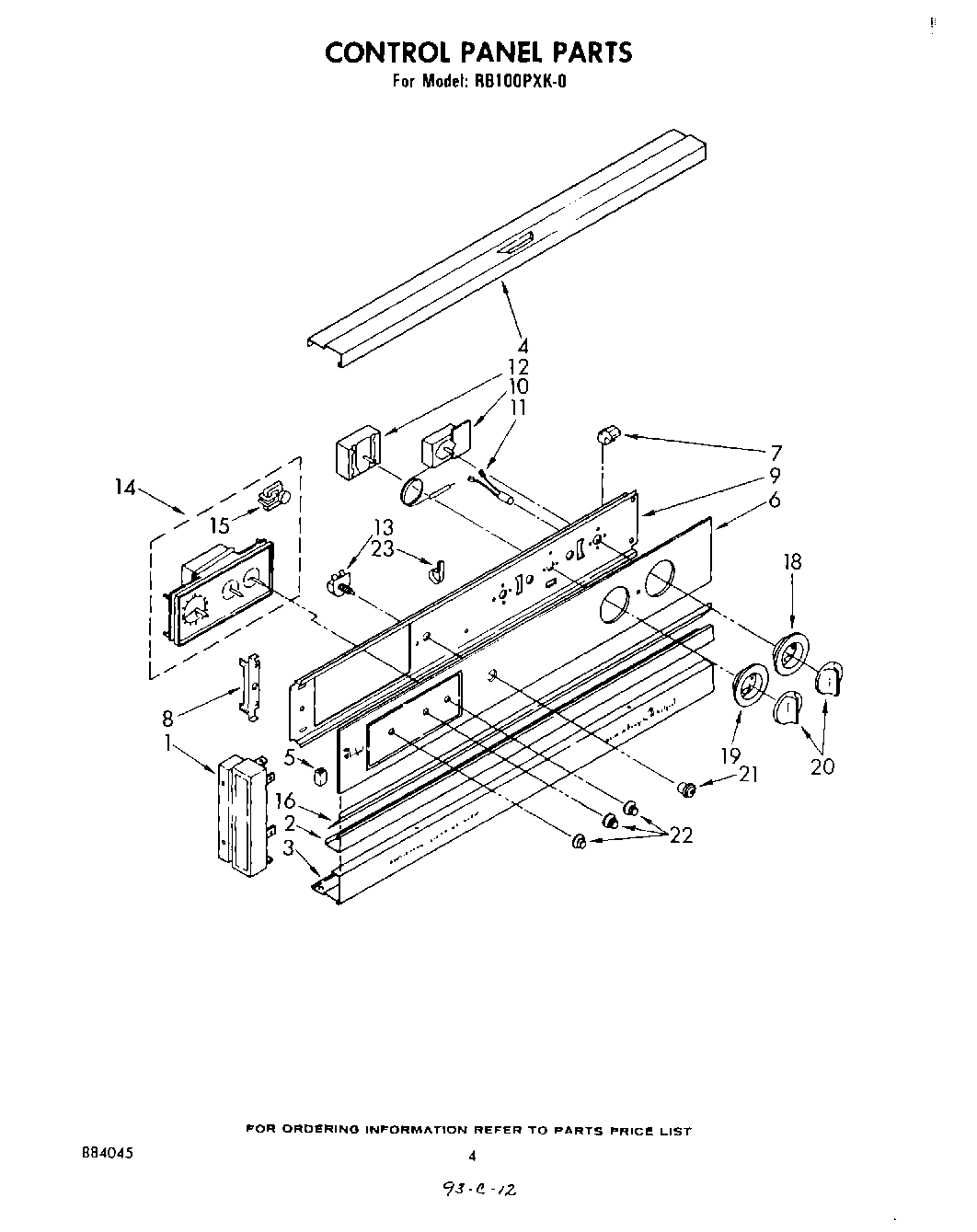

RB100PXK0 03 – SECTION
Written by
in
RB100PXK0 03 – SECTION
Products
Position
Product
1
End Cap (Right Side)
1
End Cap (Left Side)
1
Screw
2
Trim, Center
3
Trim, Bottom
4
Trim, Upper
4
Screw (2)
5
Rubber Channel (2) (Black Model Only)
6
Panel, Control Glass
7
Retainer, Glass (4)
8
panel, top (screw, 10a x 3/8 (3))
8
Bracket, Control Panel (2)
9
Control Bracket
10
screw, 6-32 x 1/4 (2)
10
Thermostat (Alt.)
10
Thermostat (Alt.)
11
Indicator Light (250V)
12
Selector Switch (4 Position)
12
WP486579 Whirlpool Air Conditioner Screw
13
nut, 3/8 x 27
13
Switch, Oven Light
14
WP965173 Whirlpool Dishwasher Screw
14
Timer, Automatic (Alternate)
14
Timer, Automatic (Includes Illus. 15)
15
Motor, Timer
16
Seal, Backguard
18
Escutcheon, Thermostat
19
WP311069 Whirlpool Oven Dial
19
Screw,
20
WP3150371 Whirlpool Control Knob
21
bezel, switch (2)
22
WPL 312808
23
Leveler (Thinner) (2oz.)
23
Grease
23
WPL 799351
23
Golden Harvest (Uncut)
23
WPL 311417
23
242831 Whirlpool Oven Wire
23
WPL 311435
23
WPL 884045
23
WPL 308500
23
Enamel, New Avocado (1 Qt. Uncut)
23
Enamel, Coffee (1 Qt. Uncut)
23
Wire, 25` Roll (Red 14 Ga.)
23
Wire, 25` Roll (Black 14 Ga.)
23
FOIL, ALUMINUM OVEN (18“ X 25 )
23
WPW10208653 Whirlpool Insulation
23
WPL 799832
23
511873 Whirlpool Refrigerator Paint
23
350942 Whirlpool Spray Paint
23
Golden Harvest
23
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23
488946 Whirlpool Air Conditioner Clamp
23
Almond (Uncut)
23
WP72107 Whirlpool Touchup
23
799344 Whirlpool Refrigerator Paint
23
72017 Whirlpool Appliance Touch-Up Paint White
23
350956 Whirlpool Spray Assembly
23
Wire, 25“ Roll (White 14 GA.)
23
WP308685 Whirlpool Microwave Screw
23
1
23
Wire (14 Ga. 200 c Brown)
23
18 Ga. 80~c Rating (Red)
23
Wire (12 Ga. 150 c Black)
23
Wire (14 Ga. 150 c Orange)
23
Wire (14 Ga. 150 c Green)
23
Wire (14 Ga. 150 c Brown)
23
Wire (14 Ga. 150 c Blue)
23
Screw, 10-32 x 5/8 (4)
23
Touch-Up Oven (1 Oz.)
23
Paint, Spray 13 Oz. (Avocado)
23
paint, spray 13 oz. (coffee)
23
Paint, Touch-Up 1/2 Oz. (Coffee)
23
72109 Whirlpool Dacor Avocado Touch-Up Paint
23
285006 Whirlpool Spray
23
350930 Whirlpool White Spray Paint
←
