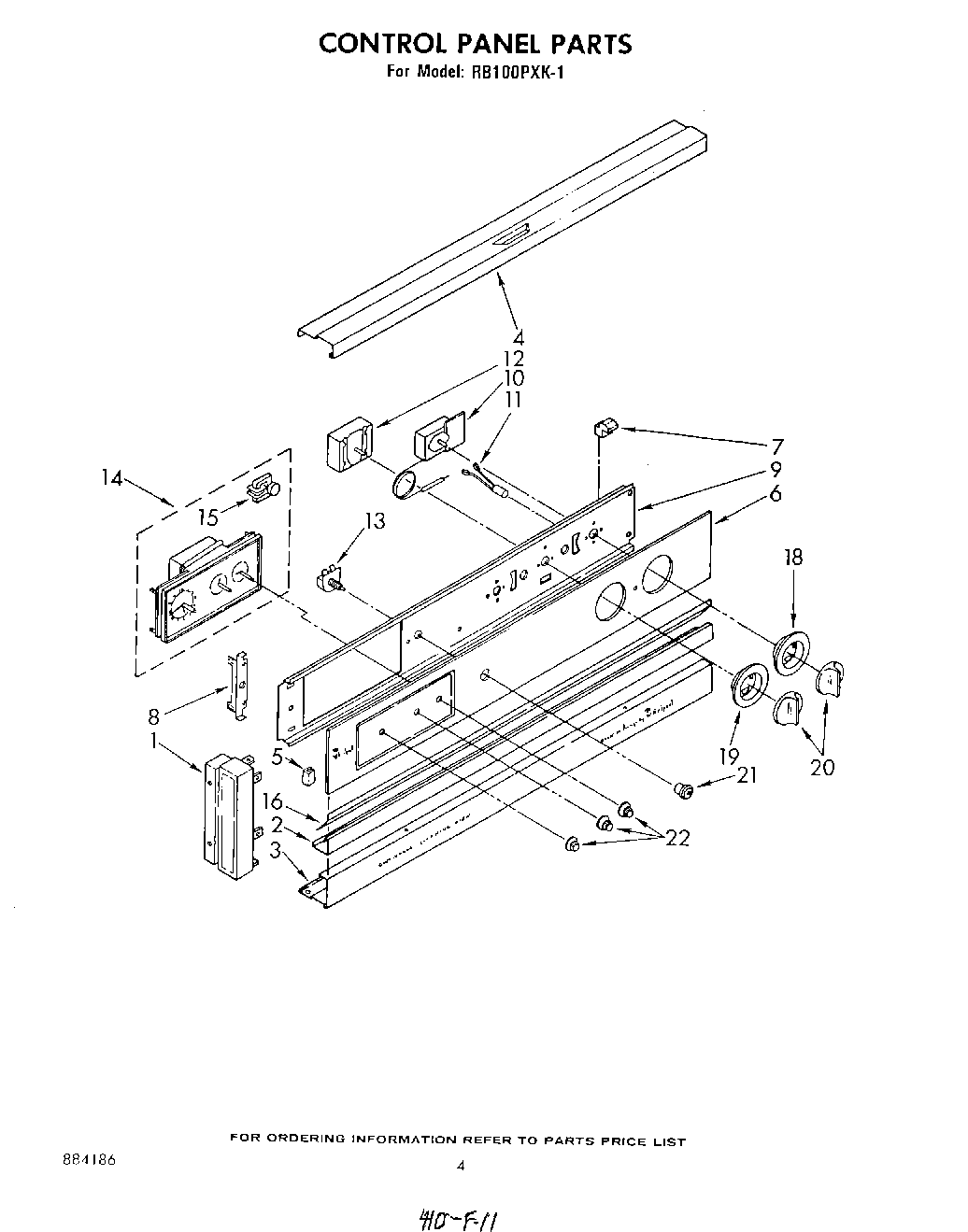

RB100PXK1 03 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

Position	Product
	screw, 6-32 x 1/4 (2)
	WPL LIT311417
	WPL LIT313358
	WPL LIT311435
	WPL LIT884186
1	Screw
1	Washer
1	End Cap (Right Side)
1	End Cap (Left Side)
2	Trim, Center
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Panel, Control Glass
7	Retainer, Glass (4)
8	Bracket, Control Panel (2)
8	panel, top (screw, 10a x 3/8 (3))
9	Control Bracket
10	Thermostat (Alt.)
10	Thermostat (Alt.)
10	Thermostat
11	Indicator Light (250V)
12	Selector Switch (4 Position)
12	WP486579 Whirlpool Air Conditioner Screw
13	Lockwasher
13	Switch, Oven Light
14	Timer, Automatic (Includes Illus. 15)
14	WP965173 Whirlpool Dishwasher Screw
15	Motor, Timer
16	Rail, Top (Seal, Backguard)
18	Escutcheon, Thermostat
19	Screw,
19	WP311069 Whirlpool Oven Dial
20	WP3150371 Whirlpool Control Knob
21	Bezel Switch (1)
22	Almond (Uncut)
22	350956 Whirlpool Spray Assembly
22	72017 Whirlpool Appliance Touch-Up Paint White
22	Wire, 25` Roll (Black 14 Ga.)
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	799344 Whirlpool Refrigerator Paint
22	Golden Harvest (Uncut)
22	Golden Harvest
22	Paint, Spray 13 Oz. (Avocado)
22	WP72107 Whirlpool Touchup
22	350930 Whirlpool White Spray Paint
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25“ Roll (White 14 GA.)
22	1
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Touch-Up Oven (1 Oz.)
22	paint, spray 13 oz. (coffee)
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	Enamel, Coffee (1 Qt. Uncut)
22	Spring (3)
22	WP3169181 Whirlpool Knob
22	285006 Whirlpool Spray
22	Wire (14 Ga. 150 c Blue)
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	Grease
22	Leveler (Thinner) (2oz.)
22	Enamel, New Avocado (1 Qt. Uncut)
22	242831 Whirlpool Oven Wire
