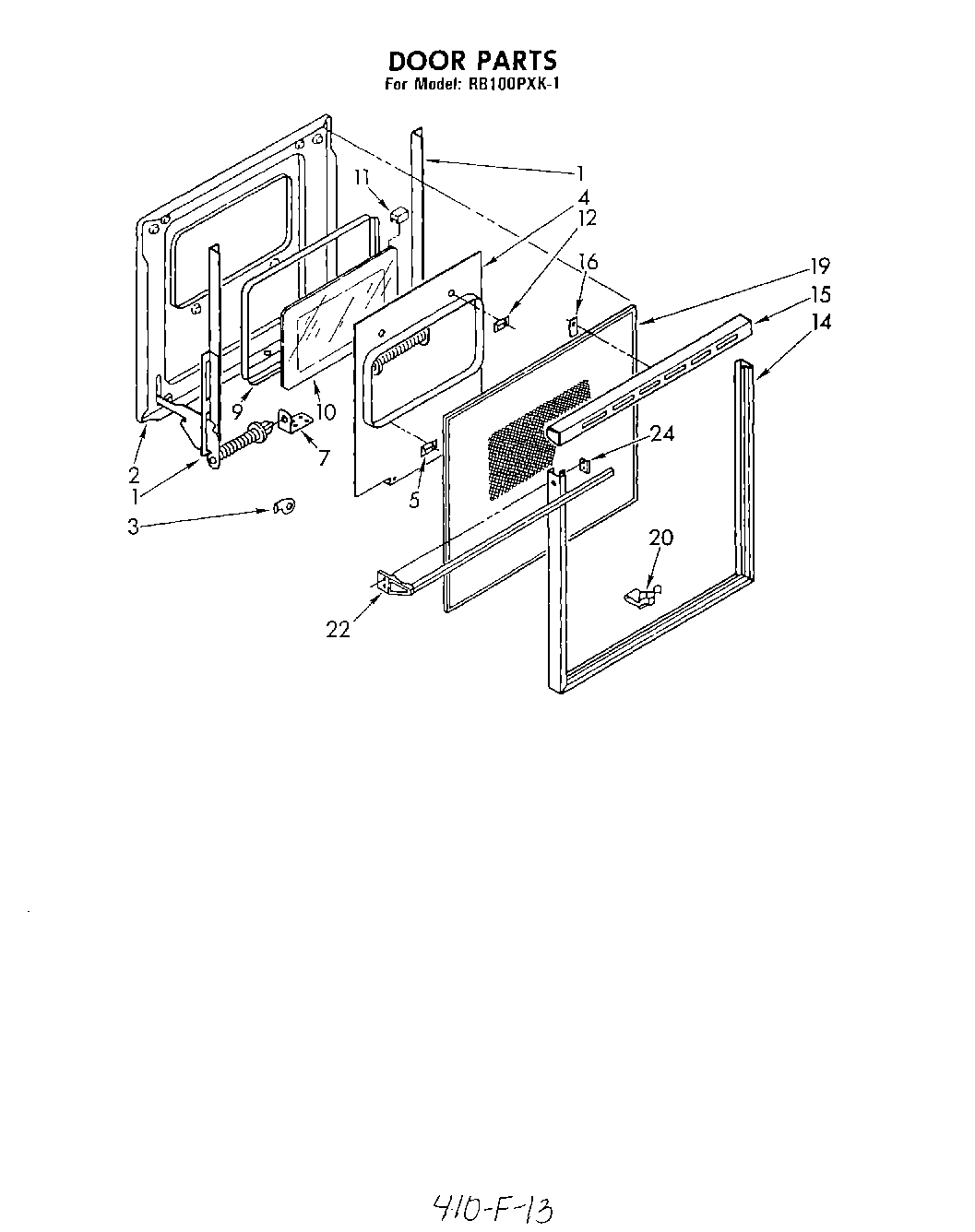

RB100PXK1 04 – DOOR

Products

Position	Product
1	SCREW
1	Bar, Torsion (L.H.)
1	Bar, Torsion (R.H.)
1	Bar, Torsion (Pushnut (2))
2	Liner, Door 24“
2	Washer, Fiber
2	Nut, Snap-In (2)
2	panel, top (screw, 10a x 3/8 (3))
3	Stop, Door (Right Hand)
3	Stop, Door (L.H.)
4	Baffle
7	Support, Torsion Bar (2)
7	WP488627 Whirlpool Refrigerator Screw
9	Seal, Window
10	Glass, Inner
11	Channel, Rubber (4)
12	Screw, 10A x 1/2 (2) (Black)
12	spacer, insulation baffle (4)
14	Frame, Door
15	Top, Door Frame
15	WP90296 Whirlpool Clip
16	hold down, glass (2)
19	Glass, Outer
20	clip, glass (10)
22	Handle, Door
22	WP912618 Whirlpool Dishwasher Screw
24	screw (3)
