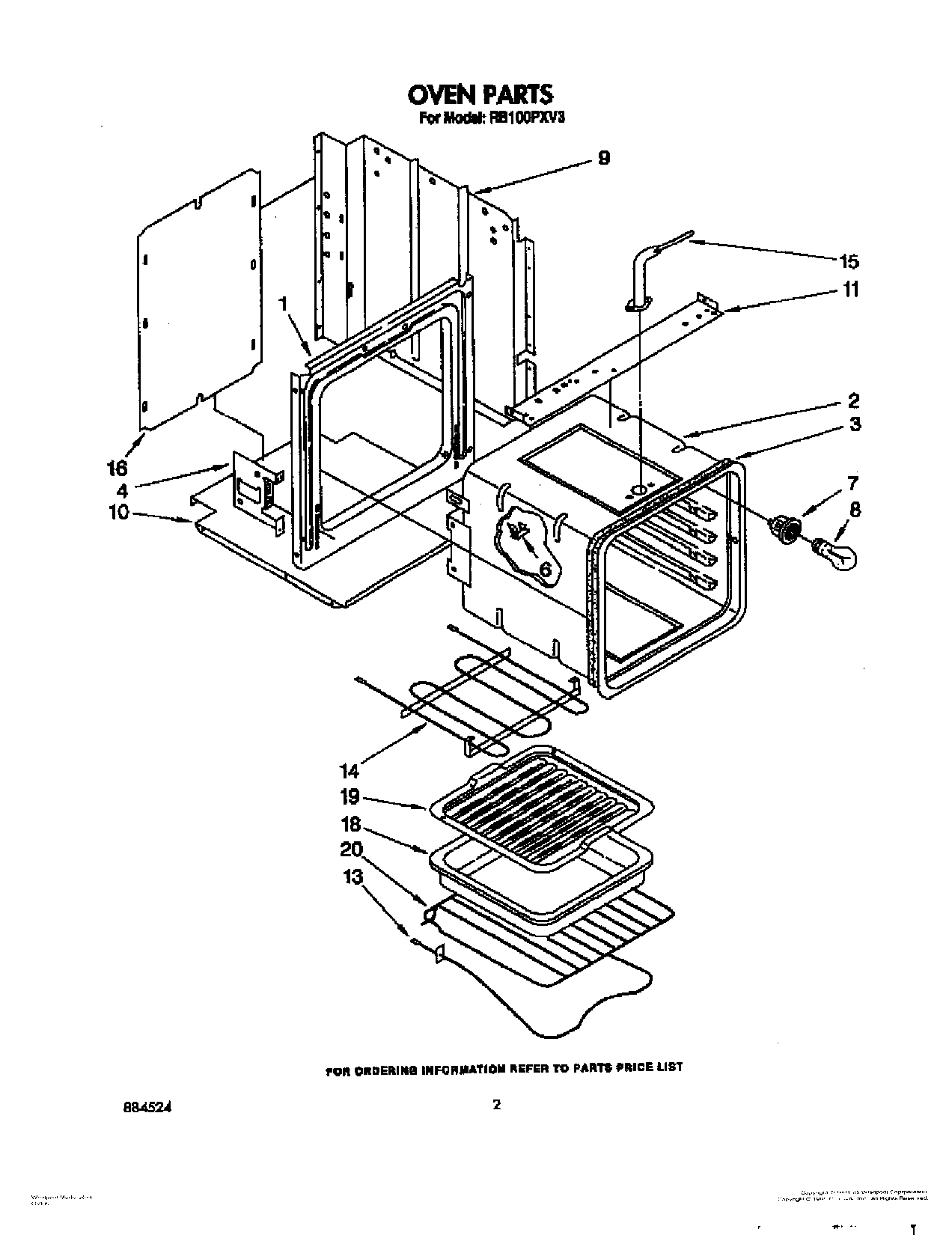

RB100PXV3 02 – OVEN

RB100PXV3 02 – OVEN

Written by

in

RB100PXV3 02 – OVEN

Products

PositionProduct
1Frame, Front
2Oven (24“ Standard)
2Screw (3)
3Clip, Retainer (2)
3Heat Seal
4Plate, Hinge (2)
4Screw, 10-32 x 1/2
698005642 Whirlpool Clip
7Socket, Oven Light
7Screw (10-12 x .875)
8RANGE ONLY 40W 120V APPL BULB
9Screw
9Side Wrapper (2)
10Cover (Top)
10Cover (Bottom)
11Baffle, Top Insulation
13326791 Whirlpool Range Oven Bake Element
14Screw, 10-32 x 5/8 (4)
14WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
15Vent, Oven
16WP308685 Whirlpool Microwave Screw
16Cover, Rear
184396923 Whirlpool Broil Pan Set Gray Porcelain
20Rack, Oven (2)
